Gear Couplings

nylon drive sleeve / steel gear hubs

Dentex ® torsionally rigid, power transmission gear couplings which transmit torque between two steel gear hubs and the internal toothing of a nylon drive sleeve.

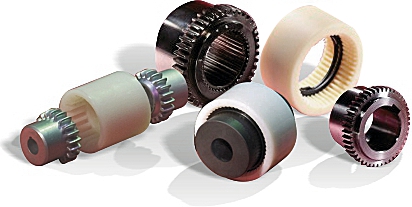

Dentex gear couplings, steel gear hub / nylon drive sleeve
Large stocks for quick delivery and in-house machine shop for exact fit to your application machinery.
Telephone: +44 (0)1737 767493 or email: info@jbj.co.uk
These steel gear hub / nylon drive sleeve gear couplings are designed to release neighbouring shaft bearings from non-controlled additional bearing loads.

Maximum shaft diameters of 100 mm can be accommodated with maximum torques up to 2,400 Nm and speeds up to 8,000 rpm.

Follow this link for all steel gear couplings.

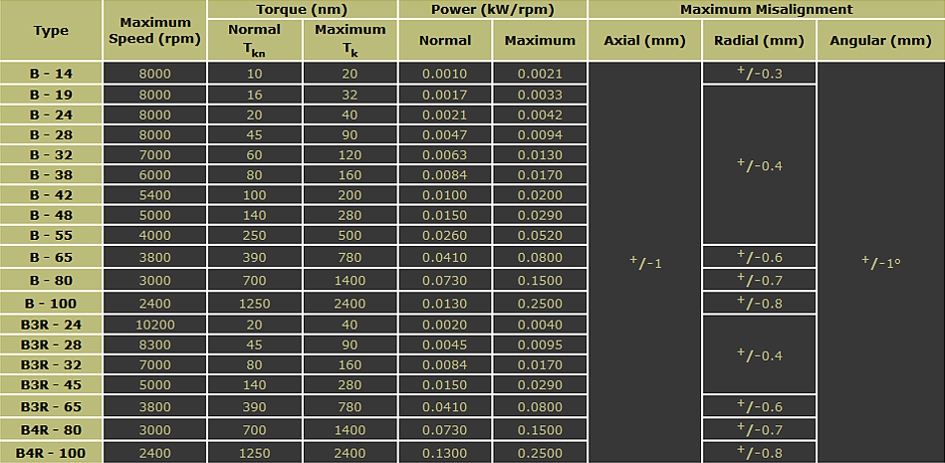

Dentex® Couplings service factors, displacement values and torque ratings.

table of Dentex gear coupling service factors, displacement values and torque ratings

Dentex® Couplings for IEC Standard Motors

data table of Dentex gear couplings for IEC standard motorsdata table of Dentex gear couplings for IEC standard motors continued
Specification of Dentex® gear couplings found in this on-line » catalogue « link
