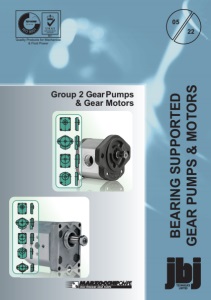

05 22 Quality Products for Mechanical & Fluid Power Group 2 GearPumps & Gear Motors BEARING SUPPORTED GEAR PUMPS & MOTORS
® patented Elika profile is everything 01737 767493 info@jbj.co.uk www.jbj.co.uk - registered in England No: 1185469 - jbj Techniques Limited is ISO certificated, committed to international coordination & unification of industrial standards. A range of products ATEX certificated to directive 94/9/E requirements You Tube www.jbj.co.uk/ .html pumps motors and Gear pump high pressure, teflon shaft seal can bear over-pressures of over 210 bar. A system of radial sealing at the shaft that can bear enormous internal over-pressures without resulting in damage. This radial sealing is particularly useful in single direction hydraulic motors when, in certain conditions of use, high over-pressures will be generated at the motor output. With bi-directional motors, the area adjacent to the seal ring of the drive-shaft is maintained at atmospheric pressure by the drainage circuit. In single-direction motors, this area is directly connected to the output so any over-pressure impacts directly on the seal ring, causing the lip to turn over or the ring to be expelled from its seat with a consequent leakage of fluid. The Teflon (P450) material adapts evenly to the texture of the machining on the shaft to guarantee a perfect seal. Reduce noise levels by an average of 15 dBA. Including group 2, 3 and multiple pumps. The helical profile of the gears reduces pressure oscillations and vibrations produced by the pump and transmitted to the other components, reducing the noise of the hydraulic system. Axial forces induced by the helical teeth are optimally balanced in al l operat ing condi t ions by the axial compensation system integrated in the pump cover. Specific compensation areas into flange and cover, insulated by special gaskets reinforced with anti-extrusion, allow for fully free axial and radial movement of the bushings, which is proportional to pump operating pressure. In this way, internal leakage is dramatically reduced, ensuring very good volumetric and mechanical pump performances, as well as proper lubrication of pump’smoving parts. FEA of teflon high pressure seal Low noise, low pulsation helical gear pumps in group II, III & multiple formats The package consists of a bellhousing and flexible drive coupling that are fully machined to suit the pump and any driving interface; diesel or petrol engine, electric or hydraulic motor. jbj's in-house design team and manufacturing faci l i ty provide tai lored solut ions for your applications at competitive prices with quick delivery. A range of composite bellhousings to accommodate electric motor flanges from 300 mm diameter to 800 mm diameter. See pages 40 to 44 of the Pump Drive Components technical specification catalogue. Acollection of different ways of connecting hydraulic pumps andmotors to various driver devices. Allow close coupling of hydraulic pumps directly to the flywheel / flywheel housing of diesel engines, electric and hydraulic motors. www.jbj.co.uk/hydraulic-adaptors.html an excellence in engineering www.jbj.co.uk/gear-pumps.html #DriveLineHarmony
Pumps & Motors with Support Contents Gear pumps and motors available with outrigger bearings/pump supports. These are manufactured so that you can impart a side load and end load on the pump input shaft. ALP2, GHP2, ALM2 and GHM2 series Page Full range of gear pumps and motors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5 Basicdesign.................................................................................. 6 GearPumpALPSeriesrange..................................................................... 7 ALP Series installation and running information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 12 Pumps & motors with support load curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 14 Pumps & motors with support ordering codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 ALP2-Tseries................................................................................. 16 ALP2A-Tseries................................................................................ 17 ALP2BK1-Tseries ............................................................................. 18 ALM2-Tseries................................................................................. 19 ALM2A-Tseries ............................................................................... 20 ALM2BK1-Tseries ............................................................................. 21 GHP2-Tseries ................................................................................ 22 GHP2A-Tseries ............................................................................... 23 GHP2BK1-TSeries............................................................................. 24 GHM2-TSeries................................................................................ 25 GHM2A-TSeries............................................................................... 26 GHM2BK1-TSeries ............................................................................ 27 Shafts....................................................................................... 28 Gear pump construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Valves and mounting arrangements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 #DriveLineHarmony............................................................................ 32 www.jbj.co.uk/gear-motors.html #DriveLineHarmony The details contained within this catalogue are reproduced in accordance with the latest information at publication of this catalogue. Errors and Omissions Excepted Last update: 16/05/2022
www.jbj.co.uk/gear-pumps.html #DriveLineHarmony
01737 767493 info@jbj.co.uk www.jbj.co.uk - registered in England No: 1185469 - jbj Techniques Limited is ISO certificated, committed to international coordination & unification of industrial standards. A range of products ATEX certificated to directive 94/9/E requirements GHM Series Gear Motors The GHM series offer identical configurations to the ALM series but more robust thanks to the cast iron front flange and rear cover. ALM Series Gear Motors For medium to high pressure rates the ALM series is ideal for mobile and industrial sectors. Mono-directional and bi-directional with internal and external drain available. ALPC/GHPC Series Short Multiple Gear Pumps For reduced axial layout. Available with both flanges and covers in aluminium or cast iron. High production rates, performance consistency and absolute reliability ensure this a benchmark product for the hydraulic power pack market. 1P Series Gear Pumps Extensive range and very high performance of these pumps integrated in to micro power packs make them ideal for many applications from aerospace to marine, medical to automotive. 0.25 - 0.5 Series Micro Gear Pumps This product range includes pumps of displacements (up to 200cc/rev) in a full aluminium configuration, able to withstand medium to high pressures and using different versions of flanges (European, German and SAE), porting and shafts. Mono-directional as well as reversible. ALP Series Gear Pumps The GHP series offer identical configurations to theALP series and guarantees extreme reliability in very high pressure applications. Ideal for mobile applications from agricultural to construction machines as the cast iron allows more flange, cover and port options. GHP Series Gear Pumps Modularity and flexibility are the characteristics of these pumps. They allow the assembly of pump modules of the ALP and GHP (from 0.25 to 4) enabling solutions to a wide range of application requirements. Ideal pump for applications which require a fast approach and/or return of the actuator at low loads and slow motion of the actuator at high loads. e.g. log splitters, compactors & presses. Volumetric andmechanical efficiencies as well as low noise levels are further benefits of this range. High/Low 2-Pass Gear Pumps ALP/GHP Series Multiple Modular Gear Pumps ELIKA® The low noise, low pulsation helical gear pump. Groups 2, 3, 4 and multiple pumps. www.jbj.co.uk/gearpumps.html Reduces the noise level by up to 20 dBA. jbj Techniques Limited, UK distributor for www.jbj.co.uk/gear-pumps.html #DriveLineHarmony
Gear Pumps Basic Design BASIC PUMP PARTS 1 - Drive Gear 2 - Driven gear 3 - Bushings 4 - Body 5 - Flange 6 - Cover 7 - Rotary shaft seal 8 - Compensation seals 9 - Anti-extrusion seals - stop Ring - support ring External gear pumps are the most popular pumps used in modern hydraulic systems. They feature versatility, strength and long useful life. Their simple construction ensures limited purchase costs and servicing. Thanks to these basic concepts, together with ever improving product design and features, research based on many years of experience, accuracy in material selection, production process followed in great detail and tests onmass-produced parts, our gear pumps have reached top quality standards. For this reason, our products can work under heavy duty operating conditions and transmit high hydraulic power. Furthermore, these hydraulic gear pumps feature good hydraulic, mechanical and volumetric efficiency, low noise level and, last but not least, compact dimensions and lowweight/power ratio. Marzocchi Pompe has further developed its own range of products with a new series of pumps named ALP where groups named ALP1, ALP2, ALP3 and ALP4 are suitable for the widest range of application, both in the industrial and themobile sector. Generally these gear pumps usually consist of a gear pair supported by two aluminum bushes, a body, a securing flange and a cover. Shaft of the driving gear projecting beyond the flange mounts a twin-lip seal ring (the inner lip being a seal and the outer being a dust seal). An elastic securing ring secures the ring in place. Pump body, flange and cover are made of special hi-resistant aluminum alloys for minimized deformation even when subject to high pressure, be it continuous or intermittent or peak pressure. The body is profiled by means of extrusion, whereas flange and cover are obtained by means of die-casting or gravity casting. Gears are made of special steel. Their manufacturing process includes case-hardening and quench hardening. Then gears are ground and fine finished so to have a high degree of surface finishing. Proper tooth profile design and geometric proportions ensure low pulsation levels and low noise levels during pump operation. Bushings are made of special low-friction and hi-resistant aluminum alloy and manufactured from die-casting. They are equipped with antifriction DU bearings (except for ALP1 pumps). Special compensation zones onto bushings, insulated by special preformed seals with antiextrusion ring, allow fully free axial and radial movement to the bushings, which is proportional to pump operating pressure. In this way, internal dripping is dramatically reduced, thus ensuring very good pump performance (both in terms of volume and in general) and proper lubrication of pumpmoving parts. www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 10 11 6 2 7 5 8 9 3 1 4 8 9 6 3 10
20 22 26 33 39 44 52 78 87 ALP3 Series 71 61 3 Displacement (cm /rev) 1.4 2.1 2.8 3.5 4.1 5.2 6.2 7.6 9.3 11.0 ALP1 Series 13.8 4.5 6.4 7.0 9.6 11.5 14.1 16.0 28.2 ALP2 Series 23.7 21.1 17.9 35.2 Bi-directional motors. Produced in three different groups with very good power/weight ratio and power/size ratio allowing a wide range of displacements within each group (between 1.4 and 87 cc/rev). The wide range of speeds, the excellent functionality, also when used in series, with strong counter-pressures and limited drain, give the GHP series pumps very good characteristics even starting under load. A range of flanges, shafts, inlet and pressure ports are available. Reversible pumps and pumps with independent driving systems are also available. Gear Pumps ALP Series Product Range 7 www.jbj.co.uk/gear-motors.html #DriveLineHarmony Special Versions For special uses are also available: "V" Version suitable for fluid at high temperatures. Range between -10°C and +120°C. In the range between -10°C and +80°Cmaximum pressures as stated in the individual product tables are allowed; beside that figures in the ‘P1’ column of the tables should not be exceeded. "VV" Version suitable for fluid at high temperatures. Range between -10°C and +150°Cwithmaximumpressure 20 bar "ST" Version suitable for fluid at high or low temperature. Range between -40°C and +120°C. In the range between -10 °C and +80°C maximum pressures as stated in the individual product table; below and beside that figures in the ‘P1’ column of the tables should not be exceeded. "H" Version suitable for fluid at low temperature. Range between -40°C and +80°C. In the range between -10 °C and +80°C maximum pressures as stated in the product table; below that figures in the ‘P1’ column of the tables should not be exceeded. “TR” Version suitable for inlet pressure up tomax. 6 bar absolute. The above descriptions are to be specified in the SEALfield of the ordering code. Contact jbj Techniques technical office for assistance in selection of correct pump for your application, telephone: +44 (0)1737 767493, email: info@jbj.co.uk 87 106 128 181 200 ALP4 Series 166 147
It is essential for correct running, top performance and longer life of the ALP series hydraulic gear pumps to follow the installation and running information provided in this catalogue. Some general considerations should be made regarding the hydraulic system, in which the pump is to be fitted. Special attention should be given to hydraulic system design and assembly, especially to intake, delivery, return and drain pipes and position of system parts (valves, filters, tanks, heat exchangers and accumulators). Proper safety devices and reliable instruments to avoid fluid turbulence and prevent air, water or foreign bodies from entering into the system are of major importance. It is also very important to equip the hydraulic systemwith a proper filtering unit. InstallationNotes Before starting the systemon a continuous basis, we suggest to adopt some simple precautions. In the case of amono-directional motor check for the direction of rotation of the pump to be consistent with the drive shaft (in case of single rotation pump). Check for the proper alignment of pump shaft andmotor shaft. It is necessary that the connection does not induce axial or radial loads. Protect drive shaft seal during pump painting. Check if contact area between seal ring and shaft is clean: dust could cause quicker wear and leakage. Remove all dirt, particles and all foreign bodies from flanges connecting inlet and delivery ports. Ensure that intake and return pipes ends are always below fluid level and as far fromeach other as possible. Install the pump below head if possible. Fill the pump with fluid, and turn it by hand. Disconnect pump drain during startup to bleed air off the circuit. At first startup, set pressure limiting valves at min. value possible. Avoid lower rotation speed thanmin. allowed with pressure higher than P1. Do not start the systemat low temperatures under load conditions or after long stops (always avoid or limit load starting for pump longer life). Start the system for a fewminutes and turn on all components; bleed air off the circuit to check its proper filling. Check fluid level in the tank after loading all components. At last, gradually increase pressure, continuously check fluid and moving parts temperature, check rotation speed until you reach set operating values that shall be within the limits indicated in this catalogue. CleaningAnd Filtering The System It is widely known that most pump early failures are due to contaminated fluids. The extreme reduction of the tolerances required in the design of the pumps, and therefore their operation with minimum clearances, are heavily influenced by a fluid that is not perfectly clean. It is proved that particles circulating in the fluid act as abrasive agents, damaging the surfaces they touch and increasing the quantity of contaminant. For this reason, ensure that system is perfectly clean during startup and keep it clean for its whole operating life. Regular checks should be made for contamination of the oil. Preventive actions include: proper cleaning of the system during assembly, deburring, eliminating the welding scumand fluid filtering before filling up. Starting contamination level of system fluid should not exceed class 18/15 (ref. ISO 4406). Even fresh fluids might exceed this contamination level; therefore Gear Pumps ALP Series Installation and Running Information www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 8
Gear Pumps ALP Series Installation and Running Information always pre-filter the fluid when filling up or topping up the system. Fit a proper tank; its capacity should be proportional to the volume displaced in one working minute. Fluid contamination levels should be monitored by use of correct filter types. Two parameters tell which filter is most suitable: absolute filtering power and b filtering ratio. Low absolute filtering power and high b filtering ratio for small particles help ensuring good filtration. It is then very important to limit not only the size of particulate, but also the number of smaller particles that pass through the filter. It goes without saying that with an operating pressure increase and according to the system sophistication degree, filtering should becomemore andmore efficient. The filtering system shall always ensure contamination levels not exceeding the values indicated below: Pressure <140 bar 140 to 210 bar >210 bar NAS 1638 Class 10 9 8 ISO4406 Class 19/16 18/15 17/14 Ratio bx = 75 25-40 μm 12-15 μm 6 -12 μm It is recommended to use a filtering systemhaving absolute filtering capability of 5 μmor lower in the systems using sophisticated valve slaves. Hydraulic Fluids Use specific mineral oil based hydraulic fluids of good anti-wear, anti-foaming (rapid deaeration), antioxidant, anti-corrosion and lubricating properties. Fluids should also comply with DIN 51525 and VDMA24317 standards and compliant with 11th stage of FZG test. For the standardmodels, the temperature of the fluid should be between -10°C and +80°C. Fluid kinematic viscosity ranges are of following: allowed value (upon verification) 6 to 500 cSt recommended value 10 to 100 cSt value allowed at startup <2000 cSt If fluids other than the above mentioned type are used, please always indicate type of used fluid and operating conditions so that jbj Techniques technical office can advise of possible problems with compatibility or useful life of systemparts. Inlet Pressure Under standard working conditions, intake pipe pressure is lower than atmospheric pressure. The operating inlet pressure should range between 0.7 and 3 bars (absolute). Min. Rotation Speed The versatility of the ALP series pumps is seen from the wide range of rotation speeds they can be subject to: maximum values are indicated in product tables and change according to themodel, whileminimum values are as follows: Group ALP1 Size 2 3 4 5 6 7 9 11 13 16 20 Min. Speed (rpm) 800 600 Group ALP2 Size 6 9 10 12 13 16 20 22 25 30 34 37 40 50 Min. Speed (rpm) 800 600 500 Group ALP3 Size 30 33 40 50 60 66 80 94 110 120 135 Min. Speed (rpm) 500 400 Group ALP4 Size 130 160 190 220 250 270 300 Min. Speed (rpm) 400 9 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Gear Pumps ALP Series Installation and Running Information Pressure Definition Product tables show threemax. pressure levels (P1, P2 and P3) to which each pump can be used. P3 = peak max pressure. P2 = intermittent max. pressure. P1 = continuous max. pressure. Pressure diagramas a function of time. P1, P2 and P3 values can be attained only if systemdoes not go over the following rotation speeds: P3 P2 P1 t (sec) Max. 20 sec. Max. 2 sec. p(bar) Group ALP1 Size 2 3 4 5 6 7 9 11 13 16 20 Speed (rpm) 4000 3500 2500 2000 1500 Group ALP2 Size 6 9 10 12 13 16 20 22 25 30 34 37 40 50 Speed (rpm) 3000 2500 2000 1500 Group ALP3 Size 30 33 40 50 60 66 80 94 110 120 135 Speed (rpm) 2500 2000 1500 1000 Group ALP4 Size 130 160 190 220 250 270 300 Speed (rpm) 2000 1500 Please contact jbj Techniques technical department, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 for system operating conditions other than indicated in the product tables. Supply &Delivery Lines Hydraulic systempipes should show no sudden changes of direction, sharp bends and sudden differences in cross-section. They should not be too long or out of proportion. Pipe cross-section should be sized so that fluid velocity does not exceed recommended values. It is advisable to carefully consider the possible diameter reduction of the inlet or outlet pipes fitted on flange fittings. Reference values are the following: Intake line 0.5 to 1.66m/s Delivery line 2 to 6m/s Return line 1.6 to 3m/s www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 10
Direction of Rotation The ALP series gear pumps are available as single rotation and bi-rotational. The direction of rotation is defined in the following way: looking at the front of the pump with the driver shaft positioned upward and sticking toward the observer, it will be a mono-directional right "D". ALP...D pump therefore with right. "D" rotation, if its rotation will be clockwise and therefore the inlet port will be on the left while the outlet port will be on the right. Vice-versa it will be a monodirectional left ALP...S therefore with left "S" rotation when looking at it from the same angle.. S = counter-clockwise rotation INPUT OUTPUT D = clockwise rotation INPUT OUTPUT R = reversible rotation The bi-directional GHP series pumps, "R" have both functional characteristics of the mono-directional motors with clockwise and counterclockwise rotation. Drive Connect the pump to the motor using a mechanical power transmission coupling so that no radial and/or axial force is transmitted to the pump shaft during rotation, otherwise pump efficiency will dramatically drop due to early wear of inner moving parts. jbj Techniques have a wide range of suitable couplings to suit a wide range of applications and we can advise on which coupling depending on the circumstances of the application. In case of driving through gears, pulleys or chains, the T option is recommended. This option allow radial and/or axial loads on the pump shaft. For further details contact jbj Techniques technical office, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 Frequently Used Formulas Fluid velocity Calculate the velocity (v) of a fluid in a pipe as follows: v =Q / 6 •A[m/s] Q= flow rate [litre/min] A = inside area of pipe [cm²] Absorbed flow rate Calculate flow rate (Q) as follows: Q= V • n • 10 -3 / hvol [litre/min] V = displacement [cm³/rotation] n = rotation speed [rotations per minute] hvol = pump volumetric efficiency (take 0.95 as an indicative value for rotation speeds ranging between 1000 and 2000 rotations per minute) Absorbed torque Calculate necessary torque (M) of a pump subject to pressure differential between inlet and delivery as follows: M= (V • Dp) / (62.8 • hhm) [Nm] V = displacement [cm³/rotation] Dp = pressure differential [bar] hhm= hydromechanical efficiency (take 0.80 as indicative value under cold conditions and 0.85 under working conditions). Gear Pumps ALP Series Installation and Running Information 11 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Gear Pumps ALP Series Information Absorbed power Calculate hydraulic power (P), transferred to fluid froma pump subject to a pressure differential between inlet and delivery as follows: P= (Q • Dp) / (600 • htot) [kW] Q= flow rate [litre/min.] Dp = pressure differential [bar] htot = total pump efficiency (hhm • hvol) Values for hvol and hhm (and consequently htot) depend on pressure differential between supply and delivery, rotation speed, fluid features (temperature and viscosity) and filtering degree. Contact jbj Techniques technical office, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 for further details on efficiency. The proper values for flow rate, torque and supplied according to pressure differential, rotation speed and set test conditions, can be found on the Performance Curve pages. These pumps are hydraulic machines converting mechanical power into hydraulic power. This section deals with rotary positive-displacement pumps. In this type of pump, a given volume of fluid flows from inlet to outlet at each shaft rotation (theoretical displacement). Pressure depends on delivery line resistance to fluid flow. As gear pumps only transfer fluid, they are subject to pressure generated by the circuit. Therefore, if system flow rate and motor rotation speed are known, it is easy to select the right pump displacement and its model. The diagram indicating flow rate variations according to speed and pressure, shows that not all the theoretically available fluid is transferred from inlet to outlet because of pump internal leakage. Leakage can be greatly reduced through pressure axial compensating systems (as described at the beginning of this catalogue) but never eliminated. Leakage increases as circuit pressure increases. Apump requires energy, just like any other hydraulic machine. Part of this power is given to the fluid to increase pressure required by the circuit, the remaining part is used to cure pump internal friction. Therefore, for proper pump operation, supplied torque shall be higher than theoretical torque. The following diagrams show, for each single displacement, the typical required power as a function of rotation speed and pressure generated by the system and allow you to easily spot the product suitable for your application. Once the pump flow rate has been selected, different flanges, shafts, inlet and outlet port position and type are available to suit most applications. In the product tables, the flow, shown at 1500 rpm, has been evaluated using a value of volumetric efficiency of 95%. All the drawings represent pumps with clockwise rotation. Reversing the direction of rotation also involves reversing of the suction side with the delivery side ports. www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 12 www.jbj.co.uk/hydraulic-adaptors.html The package consists of a bellhousing and flexible drive coupling that are fully machined to suit the pump and any driving interface; diesel or petrol engine, electric or hydraulic motor. jbj's in-house design teamandmanufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery. A range of composite bellhousings to accommodate electric motor flanges from 300 mm diameter to 800 mm diameter. See pages 40 to 44 of the Pump Drive Components technical specification catalogue. Acollection of different ways of connecting hydraulic pumps andmotors to various driver devices. allow close coupling of hydraulic pumps directly to the flywheel / flywheel housing of diesel engines, electric and hydraulic motors.
Pumps & Motors with Support Load Curves L = 1000 hh 13 Standard Ball Bearing – Radial Load Heavy Duty Ball Bearing – Radial Load (Option J – See “how to order” page) www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Pumps & Motors with Support Load Curves L = 1000 hh www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 14
37 40 50**** D Type Rotation Size Ports* Seals* Options* omit A Clockwise S Counter Clockwise ALP2 Drain** R Reversible Pump Standard Types omit = standard / cast iron European flange + shaft T0 + ports E + standard seals A= standard / cast iron flangeA+ shaft C1 + ports FA+ standard seals BK1 = standard / cast iron flange BK1 + shaft T1 + ports D + standard seals The product data sheets show our standard model types. The synoptic tables for flanges, shafts and ports show all the possible configurations. For further details about the availability of each configuration please contact jbj Techniques technical office, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 Ordering Code Shaft* Seals omit (T range = -10°C + 80°C) V ... Options OR*** J° = heavy duty double row ball bearing Drain E0 = internal drain E1 = external drain G¹⁄ E2** = external drain ⁹⁄ -18 UNF E4** = external drain ⁷⁄ - 20 UNF (only for KA ports) ... (*) = to be specified if different from standard pump/motor. (**) = drain ports are machined in compliance with the norm SAE J 1926/1 (ISO 11926-1) (Threaded port with O-ring seal in truncated housing). Thread depth 12.7 mm. (***) = only for A and BK1 model types. (****) = only for ALP2,ALP2A,GHP2,GHP2A. 6 9 10 12 13 16 20 22 25 30 34 Pumps & Motors with Support ALP1 Series www.jbj.co.uk/hydraulic-adaptors.html The package consists of a bellhousing and flexible drive coupling that are fully machined to suit the pump and any driving interface; diesel or petrol engine, electric or hydraulic motor. jbj's in-house design teamandmanufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery. A range of composite bellhousings to accommodate electric motor flanges from 300 mm diameter to 800 mm diameter. See pages 40 to 44 of the Pump Drive Components technical specification catalogue. Acollection of different ways of connecting hydraulic pumps andmotors to various driver devices. allow close coupling of hydraulic pumps directly to the flywheel / flywheel housing of diesel engines, electric and hydraulic motors. ALM2 GHP2 GHM2 BK1 T . . . . .° 15 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Pumps & Motors with Support ALP2-T Series Accessories supplied with the standard pump: » Woodruff key (code 522057) » M12 x 1.5 exagonal nut (code 523016) – Torque setting 50 ±4 Nm » Washer (code 523005) Standard ports: M6 threads depth 13mm, M8 threads depth 17 mm. The tapered shaft is also available with 3.2 mm key (“T3”). Cast iron flange ~ aluminium cover Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M d D h H 1 2 3 3 cm /rev litres/min bar bar bar rpm mm mm mm mm mm ALP2-D-6-T 4.5 6.4 250 270 290 4000 66.9 111.9 13 13 M6 30 ALP2-D-9-T 6.4 9.1 250 270 290 4000 68.4 114.9 13 13 M6 30 ALP2-D-10-T 7.0 10.0 250 270 290 4000 68.9 115.9 13 13 M8 40 ALP2-D-12-T 8.3 11.8 250 270 290 3500 69.9 117.9 13 13 M8 40 ALP2-D-13-T 9.6 13.7 250 270 290 3000 70.9 119,9 13 13 M8 40 ALP2-D-16-T 11.5 16.4 230 250 270 4000 72.4 122,9 19 13 M8 40 ALP2-D-20-T 14.1 20.1 230 250 270 4000 74.4 126,9 19 13 M8 40 ALP2-D-22-T 16.0 22.8 210 225 240 4000 75.9 129,9 19 13 M8 40 ALP2-D-25-T 17.9 25.5 210 225 240 3600 77.4 132,9 19 13 M8 40 ALP2-D-30-T 21.1 30.1 180 195 210 3200 79.9 137,9 19 19 M8 40 ALP2-D-34-T 23.7 33.7 180 195 210 3000 81.9 141,9 19 19 M8 40 ALP2-D-37-T 25.5 36.4 170 185 200 2800 83.4 144,9 19 19 M8 40 ALP2-D-40-T 28.2 40.1 160 170 180 2500 85.4 148,9 19 19 M8 40 ALP2-D-50-T 35.2 50.2 120 130 140 2500 90.9 159,9 21 19 M8 40 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 16
Pumps & Motors with Support ALP2A-T Series Accessories supplied with the standard pump: » Key (code 522067) » Mounting flange 82-2 (A) in compliance with SAE J744c. “D” and “d” standard ports are machined in compliance with the norm SAE J 1926/1 (ISO 11926-1) (Threaded port with O-ring seal in truncated housing). ¹⁄ -28 UNF thread depth 16 mm. Cast iron flange – aluminium cover Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M I 2 3 3 cm /rev litres/min bar bar bar rpm mm mm ALP2A-D-6-T 4.5 6.4 250 270 290 4000 66.9 111.9 ALP2A-D-9-T 6.4 9.1 250 270 290 4000 68.4 114.9 ALP2A-D-10-T 7.0 10.0 250 270 290 4000 68.9 115.9 ALP2A-D-12-T 8.3 11.8 250 270 290 4000 69.9 117.9 ALP2A-D-13-T 9.6 13.7 250 270 290 4000 70.9 119.9 ALP2A-D-16-T 11.5 16.4 230 250 270 4000 72.4 122.9 ALP2A-D-20-T 14.1 20.1 230 250 270 3200 74.4 126.9 ALP2A-D-22-T 16.0 22.8 210 225 240 2800 75.9 129.9 ALP2A-D-25-T 17.9 25.5 210 225 240 2500 77.4 132.9 ALP2A-D-30-T 21.1 30.1 180 195 210 2200 79.9 137.9 ALP2A-D-34-T 23.7 33.7 180 195 210 2000 81.9 141.9 ALP2A-D-37-T 25.5 36.4 170 185 200 1800 83.4 144.9 ALP2A-D-40-T 28.2 40.1 160 170 180 1800 85.4 148.9 ALP2A-D-50-T 35.2 50.2 120 130 140 2000 90.9 159.9 17 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Pumps & Motors with Support ALP2BK1-T Series Accessories supplied with the standard pump: » Woodruff key (code 522055) » M12 x 1.5 hexagonal nut (code 523016) - Torque setting 50±4 Nm » Washer (code 523005). Standard ports: M6 threads depth 13 mm. Cast iron flange – aluminium cover Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M D I 2 3 3 cm /rev litres/min bar bar bar rpm mm mm mm ALP2BK1-D-6-T 4.5 6.4 250 270 290 4000 64.4 111.9 15 ALP2BK1-D-9-T 6.4 9.1 250 270 290 4000 65.6 114.9 15 ALP2BK1-D-10-T 7.0 10.0 250 270 290 4000 71.9 115.9 15 ALP2BK1-D-12-T 8.3 11.8 250 270 290 4000 67.7 117.9 20 ALP2BK1-D-13-T 9.6 13.7 250 270 290 4000 67.7 119.9 20 ALP2BK1-D-16-T 11.5 16.4 230 250 270 4000 72.1 122.9 20 ALP2BK1-D-20-T 14.1 20.1 230 250 270 4000 72.1 126.9 20 ALP2BK1-D-22-T 16.0 22.8 210 225 240 4000 72.1 129.9 20 ALP2BK1-D-25-T 17.9 25.5 210 225 240 4000 80.4 132.9 20 ALP2BK1-D-30-T 21.1 30.1 180 195 210 3400 72.1 137.9 20 ALP2BK1-D-34-T 23.7 33.7 180 195 210 3000 79.6 141.9 20 ALP2BK1-D-37-T 25.5 36.4 170 185 200 2600 86.4 144.9 20 ALP2BK1-D-40-T 28.2 40.1 160 170 180 2600 88.4 148.9 20 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 18
Pumps & Motors with Support ALM2-T Series Accessories supplied with the standard motor: » Woodruff key (code 522057) » M12 x 1.5 hexagonal nut (code 523016) - Torque setting 50 ±4 Nm » Washer (code 523005) Standard ports: M8 threads depth 17 mm. G¹⁄ ” drain port thread depth 12 mm. The tapered shaft is also available with 3.2 mm key (“T3”). Cast iron flange – aluminium cover Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M d h H I C P 3 cm /rev litres/min bar bar bar rpm mm mm mm mm ALM2-R-6-E1-T 4,5 6,4 250 240 270 4000 69,9 117,9 13 M6 30 ALM2-R-9-E1-T 6,4 9,1 250 240 270 4000 71,4 120,9 13 M6 30 ALM2-R-10-E1-T 7,0 10,0 250 240 270 4000 71,9 121,9 13 M8 40 ALM2-R-12-E1-T 8,3 11,8 250 240 270 3500 72,9 123,9 13 M8 40 ALM2-R-13-E1-T 9,6 13,7 250 240 270 3000 73,9 125,9 13 M8 40 ALM2-R-16-E1-T 11,5 16,4 230 220 250 4000 75,4 128,9 19 M8 40 ALM2-R-20-E1-T 14,1 20,1 230 220 250 4000 77,4 132,9 19 M8 40 ALM2-R-22-E1-T 16,0 22,8 210 200 225 4000 78,9 135,9 19 M8 40 ALM2-R-25-E1-T 17,9 25,5 210 200 225 3600 80,4 138,9 19 M8 40 ALM2-R-30-E1-T 21,1 30,1 180 170 195 3200 82,9 143,9 19 M8 40 ALM2-R-34-E1-T 23,7 33,7 180 170 195 3000 84,9 147,9 19 M8 40 ALM2-R-37-E1-T 25,5 36,4 170 160 185 2800 86,4 150,9 19 M8 40 ALM2-R-40-E1-T 28,2 40,1 160 150 170 2500 88,4 154,9 19 M8 40 19 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Pumps & Motors with Support ALM2A - T Series Accessories supplied with the standard motor: » Key (code 522067) » Mounting flange 82-2 (A) in compliance with SAE J 744c. “D” and “d” standard ports are machined in compliance with the norm SAE J 1926/1 (ISO 11926 - 1) (Threaded port with O-ring seal in truncated housing). ¹⁄ -28 UNF thread depth 16mm. G¹⁄ ” drain port thread depth 12 mm. Cast iron flange – aluminium cover Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M I C P 3 cm /rev litres/min bar bar bar rpm mm mm ALM2A-R-6-E1-T 4.5 6.4 250 240 270 4000 69.9 117.9 ALM2A-R-9-E1-T 6.4 9.1 250 240 270 4000 71.4 120.9 ALM2A-R-10-E1-T 7.0 10.0 250 240 270 4000 71.9 121.9 ALM2A-R-12-E1-T 8.3 11.8 250 240 270 4000 72.9 123.9 ALM2A-R-13-E1-T 9.6 13.7 250 240 270 4000 73.9 125.9 ALM2A-R-16-E1-T 11.5 16.4 230 220 250 4000 75.4 128.9 ALM2A-R-20-E1-T 14.1 20.1 230 220 250 3200 77.4 132.9 ALM2A-R-22-E1-T 16.0 22.8 210 200 225 2800 78.9 135.9 ALM2A-R-25-E1-T 17.9 25.5 210 200 225 2500 80.4 138.9 ALM2A-R-30-E1-T 21.1 30.1 180 170 195 2200 82.9 143.9 ALM2A-R-34-E1-T 23.7 33.7 180 170 195 2000 84.9 147.9 ALM2A-R-37-E1-T 25.5 36.4 170 160 185 1800 86.4 150.9 ALM2A-R-40-E1-T 28.2 40.1 160 150 170 1800 88.4 154.9 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 20
Pumps & Motors with Support ALM2BK1 - T Series Accessories supplied with the standard motor: » Woodruff key (code 522055) » M12 x 1.5 hexagonal nut (code 523016) - Torque setting 50 ±4 Nm » Washer (code 523005) Standard ports: M6 threads depth 13 mm. G¹⁄ ” drain port thread depth 12 mm. Cast iron flange – aluminium cover Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M D I C P 3 cm /rev litres/min bar bar bar rpm mm mm mm ALM2BK1-R-6-E1-T 4.5 6.4 250 240 270 4000 64.4 117.9 15 ALM2BK1-R-9-E1-T 6.4 9.1 250 240 270 4000 65.6 120.9 15 ALM2BK1-R-10-E1-T 7.0 10.0 250 240 270 4000 71.9 121.9 15 ALM2BK1-R-12-E1-T 8.3 11.8 250 240 270 4000 67.7 123.9 20 ALM2BK1-R-13-E1-T 9.6 13.7 250 240 270 4000 67.7 125.9 20 ALM2BK1-R-16-E1-T 11.5 16.4 230 220 250 4000 72.1 128.9 20 ALM2BK1-R-20-E1-T 14.1 20.1 230 220 250 4000 72.1 132.9 20 ALM2BK1-R-22-E1-T 16.0 22.8 210 200 225 4000 72.1 135.9 20 ALM2BK1-R-25-E1-T 17.9 25.5 210 200 225 4000 80.4 138.9 20 ALM2BK1-R-30-E1-T 21.1 30.1 180 170 195 3400 72.1 143.9 20 ALM2BK1-R-34-E1-T 23.7 33.7 180 170 195 3000 79.6 147.9 20 ALM2BK1-R-37-E1-T 25.5 36.4 170 160 185 2600 86.4 150.9 20 ALM2BK1-R-40-E1-T 28.2 40.1 160 150 170 2600 88.4 154.9 20 21 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Pumps & Motors with Support GHP2-T Series Accessories supplied with the standard pump: » Woodruff key (code 522057). » M12 x 1.5 hexagonal nut (code 523016) - Torque setting 50 ±4 Nm. » Washer (code 523005). Standard ports: M6 threads depth 13mm, M8 threads depth 17 mm. The tapered shaft is also available with 3.2 mm Key (“T3”). Cast iron flange – cast iron cover. Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M d D h H 1 2 3 3 cm /rev litres/min bar bar bar rpm mm mm mm mm mm GHP2-D-6-T 4.5 6.4 280 295 310 4000 66.9 110.4 13 13 M6 30 GHP2-D-9-T 6.4 9.1 280 295 310 4000 68.4 113.4 13 13 M6 30 GHP2-D-10-T 7.0 10.0 280 295 310 4000 68.9 114.4 13 13 M8 40 GHP2-D-12-T 8.3 11.8 280 295 310 3500 69.9 116.4 13 13 M8 40 GHP2-D-13-T 9.6 13.7 280 295 310 3000 70.9 118.4 13 13 M8 40 GHP2-D-16-T 11.5 16.4 280 295 310 4000 72.4 121.4 19 13 M8 40 GHP2-D-20-T 14.1 20.1 260 275 290 4000 74.4 125.4 19 13 M8 40 GHP2-D-22-T 16.0 22.8 260 275 290 4000 75.9 128.4 19 13 M8 40 GHP2-D-25-T 17.9 25.5 260 275 290 3600 77.4 131.4 19 13 M8 40 GHP2-D-30-T 21.1 30.1 230 245 260 3200 79.9 136.4 19 19 M8 40 GHP2-D-34-T 23.7 33.7 180 195 210 3000 81.9 140.4 19 19 M8 40 GHP2-D-37-T 25.5 36.4 170 185 200 2800 83.4 143.4 19 19 M8 40 GHP2-D-40-T 28.2 40.1 160 170 180 2500 85.4 147.4 19 19 M8 40 GHP2-D-50-T 3 35.2 50.2 120 130 140 2500 90.9 158.4 21 19 M8 40 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 22
Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M 1 2 3 3 cm /rev litres/min bar bar bar rpm mm mm GHP2A-D-6-T 4.5 6.4 280 295 310 4000 66.9 110.4 GHP2A-D-9-T 6.4 9.1 280 295 310 4000 68.4 113.4 GHP2A-D-10-T 7.0 10.0 280 295 310 4000 68.9 114.4 GHP2A-D-12-T 8.3 11.8 280 295 310 4000 69.9 116.4 GHP2A-D-13-T 9.6 13.7 280 295 310 4000 70.9 118.4 GHP2A-D-16-T 11.5 16.4 280 295 310 4000 72.4 121.4 GHP2A-D-20-T 14.1 20.1 260 275 290 3200 74.4 125.4 GHP2A-D-22-T 16.0 22.8 260 275 290 2800 75.9 128.4 GHP2A-D-25-T 17.9 25.5 260 275 290 2500 77.4 131.4 GHP2A-D-30-T 21.1 30.1 230 245 260 2200 79.9 136.4 GHP2A-D-34-T 23.7 33.7 180 195 210 2000 81.9 140.4 GHP2A-D-37-T 25.5 36.4 170 185 200 1800 83.4 143.4 GHP2A-D-40-T 28.2 40.1 160 170 180 1800 85.4 147.4 GHP2A-D-50-T 35.2 50.2 120 130 140 1800 90.9 158.4 Pumps & Motors with Support GHP2A-T Series Accessories supplied with the standard pump: » Key (code 522067) » Mounting flange 82-2 (A) in compliance with SAE J744c. “D” and “d” standard ports are machined in compliance with the norm SAE J 1926/1 (ISO 11926- 1) (Threaded port with O-ring seal in truncated housing). ¹⁄ -28 UNF thread depth 16mm. Cast iron flange – cast iron cover 23 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Pumps & Motors with Support GHP2BK1 - T Series Accessories supplied with the standard pump: » Woodruff key (code 522055) » M12 x 1.5 hexagonal nut (code 523016) – Torque setting 50 ±4 Nm » Washer (code 523005). Standard ports: M6 threads depth 13 mm. Cast iron flange – cast iron cover Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M D 1 2 3 3 cm /rev litres/min bar bar bar rpm mm mm mm GHP2BK1-D-6-T 4.5 6.4 280 295 310 4000 64.4 110.4 15 GHP2BK1-D-9-T 6.4 9.1 280 295 310 4000 65.6 113.4 15 GHP2BK1-D-10-T 7.0 10.0 280 295 310 4000 71.9 114.4 15 GHP2BK1-D-12-T 8.3 11.8 280 295 310 4000 67.7 116.4 20 GHP2BK1-D-13-T 9.6 13.7 280 295 310 4000 67.7 118.4 20 GHP2BK1-D-16-T 11.5 16.4 280 295 310 4000 72.1 121.4 20 GHP2BK1-D-20-T 14.1 20.1 260 275 290 4000 72.1 125.4 20 GHP2BK1-D-22-T 16.0 22.8 260 275 290 4000 72.1 128.4 20 GHP2BK1-D-25-T 17.9 25.5 260 275 290 4000 80.4 131.4 20 GHP2BK1-D-30-T 21.1 30.1 230 245 260 3400 72.1 136.4 20 GHP2BK1-D-34-T 23.7 33.7 180 195 210 3000 79.6 140.4 20 GHP2BK1-D-37-T 25.5 36.4 170 185 200 2600 86.4 143.4 20 GHP2BK1-D-40-T 28.2 40.1 160 170 180 2600 88.4 147.4 20 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 24
Pumps & Motors with Support GHM2-T Series Accessories supplied with the standard motor: » Woodruff key (code 522057) » M12 x 1.5 hexagonal nut (code 523016) – Torque setting 50 ±4 Nm » Washer (code 523005). Standard ports: M6 threads depth 13mm, M8 threads depth 17 mm. The tapered shaft is also available with 3.2 mm key (“T3”). G¹⁄ ” drain port thread depth 12 mm. Cast iron flange – cast iron cover. Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M d h H I C P 3 cm /rev litres/min bar bar bar rpm mm mm mm mm GHM2-R-6-E1-T 4.5 6.4 280 270 295 4000 69.9 116.4 13 M6 30 GHM2-R-9-E1-T 6.4 9.1 280 270 295 4000 71.4 119.4 13 M6 30 GHM2-R-10-E1-T 7.0 10.0 280 270 295 4000 71.9 120.4 13 M8 40 GHM2-R-12-E1-T 8.3 11.8 280 270 295 3500 72.9 122.4 13 M8 40 GHM2-R-13-E1-T 9.6 13.7 280 270 295 3000 73.9 124.4 13 M8 40 GHM2-R-16-E1-T 11.5 16.4 280 270 295 4000 75.4 127.4 19 M8 40 GHM2-R-20-E1-T 14.1 20.1 260 250 275 4000 77.4 131.4 19 M8 40 GHM2-R-22-E1-T 16.0 22.8 260 250 275 4000 78.9 134.4 19 M8 40 GHM2-R-25-E1-T 17.9 25.5 260 250 275 3600 80.4 137.4 19 M8 40 GHM2-R-30-E1-T 21.1 30.1 230 220 245 3200 82.9 142.4 19 M8 40 GHM2-R-34-E1-T 23.7 33.7 180 170 195 3000 84.9 146.4 19 M8 40 GHM2-R-37-E1-T 25.5 36.4 170 160 185 2800 86.4 149.4 19 M8 40 GHM2-R-40-E1-T 28.2 40.1 160 150 175 2500 88.4 153.4 19 M8 40 25 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M 1 2 3 3 cm /rev litres/min bar bar bar rpm mm mm GHM2A-R-6-E1-T 4,5 6,4 280 270 295 4000 69,9 116,4 GHM2A-R-9-E1-T 6,4 9,1 280 270 295 4000 71,4 119,4 GHM2A-R-10-E1-T 7,0 10,0 280 270 295 4000 71,9 120,4 GHM2A-R-12-E1-T 8,3 11,8 280 270 295 4000 72,9 122,4 GHM2A-R-13-E1-T 9,6 13,7 280 270 295 4000 73,9 124,4 GHM2A-R-16-E1-T 11,5 16,4 280 270 295 4000 75,4 127,4 GHM2A-R-20-E1-T 14,1 20,1 260 250 275 3200 77,4 131,4 GHM2A-R-22-E1-T 16,0 22,8 260 250 275 2800 78,9 134,4 GHM2A-R-25-E1-T 17,9 25,5 260 250 275 2500 80,4 137,4 GHM2A-R-30-E1-T 21,1 30,1 230 220 245 2200 82,9 142,4 GHM2A-R-34-E1-T 23,7 33,7 180 170 195 2000 84,9 146,4 GHM2A-R-37-E1-T 25,5 36,4 170 160 185 1800 86,4 149,4 GHM2A-R-40-E1-T 28,2 40,1 160 150 175 1800 88,4 153,4 Pumps & Motors with Support GHM2A - T Series Accessories supplied with the standard motor: » Key (code 522067) » Mounting flange 82-2 (A) in compliance with SAE J 744c. “D” and “d” standard ports are machined in compliance with the norm SAE J 1926/1 (ISO 11926- 1) (Threaded port with O-ring seal in truncated housing). ¹⁄ -28 UNF thread depth 16mm. G¹⁄ ” drain port thread depth 12 mm. Cast iron flange – cast iron cover www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 26
Pumps & Motors with Support GHM2BK1 - T Series Accessories supplied with the standard motor: Woodruff key (code 522055) M12x1.5 exagonal nut (code 523016) ) – Torque setting 50±4 Nm Washer (code 523005). Standard ports: M6 threads depth 13 mm. G1/4” drain port thread depth 12 mm. Cast iron flange – cast iron cover Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M D I C P 3 cm /rev litres/min bar bar bar rpm mm mm mm GHM2BK1-R-6-E1-T 4,5 6,4 280 270 295 4000 64,4 116,4 15 GHM2BK1-R-9-E1-T 6,4 9,1 280 270 295 4000 65,6 119,4 15 GHM2BK1-R-10-E1-T 7,0 10,0 280 270 295 4000 71,9 120,4 15 GHM2BK1-R-12-E1-T 8,3 11,8 280 270 295 4000 67,7 122,4 20 GHM2BK1-R-13-E1-T 9,6 13,7 280 270 295 4000 67,7 124,4 20 GHM2BK1-R-16-E1-T 11,5 16,4 280 270 295 4000 72,1 127,4 20 GHM2BK1-R-20-E1-T 14,1 20,1 260 250 275 4000 72,1 131,4 20 GHM2BK1-R-22-E1-T 16,0 22,8 260 250 275 4000 72,1 134,4 20 GHM2BK1-R-25-E1-T 17,9 25,5 260 250 275 4000 80,4 137,4 20 GHM2BK1-R-30-E1-T 21,1 30,1 230 220 245 3400 72,1 142,4 20 GHM2BK1-R-34-E1-T 23,7 33,7 180 170 195 3000 79,6 146,4 20 GHM2BK1-R-37-E1-T 25,5 36,4 170 160 185 2600 86,4 149,4 20 GHM2BK1-R-40-E1-T 28,2 40,1 160 150 175 2600 88,4 153,4 20 27 www.jbj.co.uk/gear-motors.html #DriveLineHarmony
28 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony Pumps & Motors with Support Shafts
External gear pumps are the most popular pumps used in modern hydraulic systems. They feature versatility, strength and long life. Their simple construction ensures cost effective purchasing and service. Thanks to these basic concepts, coupled with ever improving product design and features, result in a quality product manufactured to the very highest standards. Due to the many years of research and experience, accurate material selection, rigid production process and rigorous testing on all aspects of the product range, enables Marzocchi gear pumps to operate under extreme working conditions and transmit high hydraulic power. In addition Marzocchi pumps are produced with good mechanical and hydraulic efficiency, low noise level and their compact dimensions give a low weight too power ratio. A gear pump usually consists of a gear pair supported by two aluminium bushes for groups 0.25, 0.5 and 1P, or bushes with plain bearings coated with anti-friction material for groups 1, 2, 3 and 4, a body, a securing flange and a cover. Shaft of the driving gear projecting beyond the flange mounts a twin-lip seal ring (the inner lip being a seal, the outer lip being a dust seal) for groups 0.25, 0.5 and 1P, or two opposed single-lip seal rings (the outer being a dust seal) for groups 1, 2, 3 and 4. Pump body, flange and cover are made of special high-resistant aluminium alloys for minimized deformation even when subject to high pressure, be it continuous or intermittent or peak pressure. The body is profiled by means of extrusion, whereas flange and cover are obtained by means of die-casting (gravity die-casting for some models). Gears are made of special steel. Their manufacturing process includes case-hardening and quench hardening. The gears are ground and fine finished so as to have a high degree of surface finishing. Proper tooth profile design and geometric proportions ensure low pulsation levels and low noise levels during pump operation. Bushes are made of special low-friction and high-resistant aluminium alloy and manufactured from die-casting. Special compensation zones onto flange and cover, insulated by special seals with anti-extrusion rings, allow fully free axial and radial movement to the bushes, which is proportional to pump operating pressure. In this way, internal leakage is dramatically reduced, thus ensuring very high pump performance (both in terms of flow and overall) and proper lubrication to the moving pump parts. Gear Pump Basic Design - simple construction, long and useful life. Basic pump parts 1 - Drive gear 2 - Driven gear 3 - Bushings 4 - Body 5 - Flange 6 - Cover 7 - Rotary shaft seal 8 - Compensation seals 9 - Anti-extrusion seals 10 - Circlip 29 www.jbj.co.uk/e-catalogues-marzocchi.html #DriveLineHarmony Gear Pumps & Motors Construction
An experienced and dedicated team of technical sales engineers are on hand to work with customers and deliver results. The markets where jbj operate are tough and time sensitive. In such circumstances customers need reliable solution partners, people who are conscious of deadlines, innovative in design and always willing to seek the best solution for the customers' needs. On all counts, jbj Techniques Limited deliver. From specification, through technical advice, manufacture and support, together with our extensive product database, jbj Techniques provide a comprehensive and valued service to the power transmission and hydraulic industries. jbj Techniques Ltd provide a diverse range of mechanical drive & transmission solutions to industrial markets including design engineering, product supply and after sales service. www.jbj.co.uk/Marzocchigearpumps.html integrated valves and mounting arrangements ALP/GHP . . . . VP-LS: Load sensing pump with priority valve. ALM . . . . VN - VM: Motors with anti-cavitation valves and relief valve. ALM . . . . VE: Motor with proportional relief valve. ALP/GHP . . . . T: Pumps with support bearing for high side/radial loads. ALP . . . . VM: Pump with integrated relief valve. ALM/GHM . . . . T: Motors with support bearings for high side/radial loads. 30 www.jbj.co.uk/e-catalogues-marzocchi.html #DriveLineHarmony Gear Pumps & Motors Valves and Mounting Arrangements
Pumps & Motors with Support Notes
Getting the most out of your machinery often depends on close integration between all components. An organisation that manufactures and integrates all the diverse components of a drivetrain provides the experience to help you select the best component combination for your application. jbj Techniques’ in-house design team and manufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery. The following examples are a simplistic view of how jbj Techniques assists customers. Hydraulic Adaptors Designed primarily to allow the close coupling of hydraulic pumps to a variety of prime movers, such as diesel / petrol engines, electric, air or hydraulic motors, they can also be used in the connection from prime mover to alternative driven parts i.e. gear boxes, generators, water or vacuum pumps etc. An additional range of engine front PTO adaptors, which provide additional connection between the engine pulley and the driven part are also available. The kit comprises of a and flexible bellhousing drive that are fully machined to suit the coupling driving and driven components. These can be to suit either shaft to shaft, flange (flywheel) to shaft or even flange to flange connections. Getting the most out of your equipment will demand close integration between all components. In specifying jbj Techniques as your preferred supplier, you will have selected a company with the experience to specify, manufacture and integrate all of the diverse components that will ensure the best component combination for your application. jbj's in house design team and manufacturing facility provide tailored solutions for your applications at competitive pricing and on-time deliveries. Pump shaft alignment is key to preventing unnecessary wear and damage to the pump shaft seal and bearing. Improper alignment may lead to premature pump failure. Also to be considered are unwanted torsional resonant frequencies in the system which can quickly cause damage to components in the drivetrain and reduce system life and performance. Improper pump installation can lead to premature failure, increased maintenance costs and reduced production levels of final product. jbj Techniques can advise on the correct installation of into Industrial / hydraulic pumps mobile / marine / machine tool / agricultural / offshore industries and can specify complete driveline systems from their extensive range of components which are available from stock or manufactured to order, albeit simple or complex, standard or bespoke. Electric Motor – Hydraulic Pump Adaptors (safe area) jbj Techniques Limited offer the most comprehensive range of in Europe. bellhousings Designed to connect electric motors with frame size IEC D56 - D400 (0.06kW – 750kW) and can be compatible with electric motor 'B5' or 'B14' flange configurations. Accompanying the metric frame units above is a complete range of mountings to suit Nema and imperial frame motors with 'C' face or 'D' flange fitments. With fully machined , torsionally flexible couplings or available, jbj ensure torsionally rigid couplings the most suitable combination is selected for the application in hand. As an example spider couplings are available in various materials including aluminium, grey cast iron, nodular iron, steel and stainless steels and can be finish machined with parallel, taper or splined bores to DIN, SAE, ANSI or ISO standards. Bellhousings can be manufactured in aluminium or cast iron material as standard, however, units can be produced in a variety of exotic materials on request. The aluminium product range is produced in either monoblock or composite formats giving great flexibility in design and allows for early delivery time, often with same or next day delivery possibilities. For applications where low noise levels are a quality products for mechanical & fluid power #DriveLineHarmony www.jbj.co.uk an excellence in engineering
