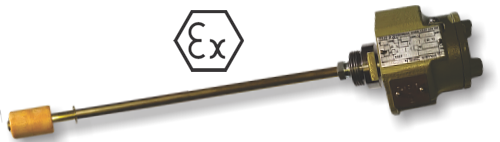

Float Level Indicators

Flame Proof Head, rated voltage: 380 - 1000 V ac, protection IP66.

Electrical Characteristics
Switchable power in DC 60 W
Switchable power in AC 80 VA
Current intensity in DC or AC 1.3/2A
Voltage 250 V switchable
Capacity of open contacts 4pF
Rhodium REED contacts
SPDT switch REED contacts
Temperature range -20° to +100°C

Duty

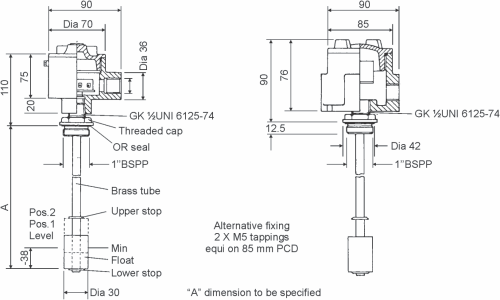

Connecting head made in cast steel according to European standards EN 50014, EN50018 EEX DII CT 6 [zone 1] (alternative specification available onrequest) as covered by certificates CESI AD 82.072. Suitable for hazardous environments where the saturation of gaseous vapours or substances that combine in air are liable to cause explosions i.e. in the chemical, pharmaceutical or dye industries, oil rigs, etc.

Operation
When the float meets the REED switch incorporated in the tube at the predefined distance, the contacts controlled by the magnet contained in the float openor close and can thus send a remote signal in the form of a light or audible alarm, or can switch off any connected electrical equipment.

Link to further level indicators and associated ancillaries
