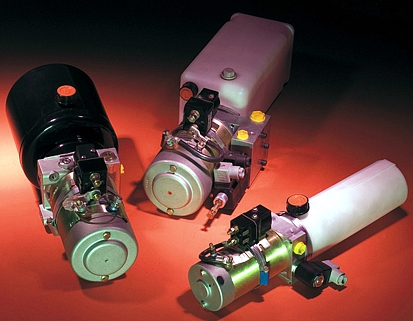

DC Power Units / Mini Power Packs

Custom designed power packs to achieve optimum electro-mechanical and hydraulic performance

DC Power Units / Mini Power Packs

» 12 to 72 VDC voltage range
» 1.0 to 11.6 cc pump displacements
» 275 bar maximum pressure
» 0.946 to 15.14 litre capacity reservoirs

Custom designed power packs to achieve optimum electro-mechanical and hydraulic performance for an extensive range of mobile and static applications.

DC motor and multiple pump applications are a focused area of expertise.

DC power systems are self contained modular power pack systems with a wide range of standard pumps, motors, switches, mountings, valves and reservoirs plus custom options. Short series of custom power packs built easily and cost effectively. Available fully assembled or in kit form.

DC power systems are self contained modular power pack systems with a wide range of standard pumps, motors, switches, mountings, valves and reservoirs plus custom options. Short series of custom power packs built easily and cost effectively. Available fully assembled or in kit form.

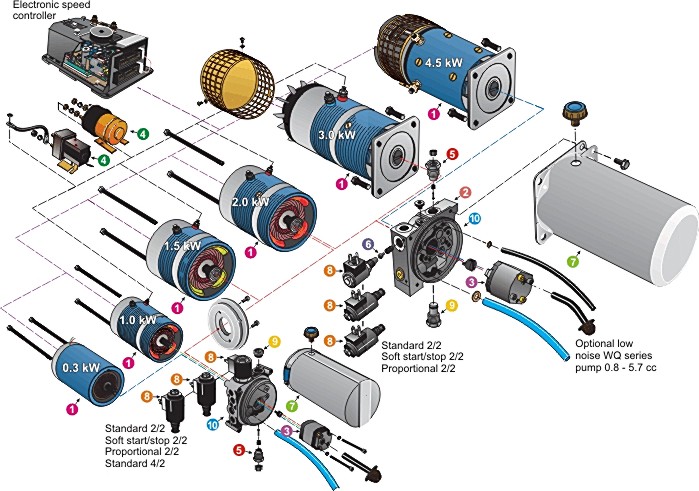

HE 1000 / HE 2000 power packs

The HE power pack is based on a versatile platform that allows you to combine 80 - 134 mm motors (0.3 - 4.5 kW) with a variety of pumps (0.24 - 5.7 cc/rev).

A unit can individually control up to four hydraulic cylinders.

The core of the system consists of two different adaptors with alternative shapes and variable assembly direction.

Motors
DC motors, 12/24/48 volt. Efficient motors with long service life, long service interval and low power consumption. Special noise reduced motors (LSM series) available.
AC operation
Flanges for 71/80/91/100 B14 AC motors permit the installation of motors rated at 0.25 - 4.0 kW / 1500 rpm or 0.37 - 4.0 kW / 2800 rpm.
Pump
Pressure balanced gear pumps of our own design are extremely efficient, with low noise. Special noise reduced pumps ( WQ series )
Start switch
Start switch with high IP protection class and silver-plated contacts meets tough demands for a long, problem free service life.
Relief valves
Flushed low profile, non blocking relief valves provide high security. One model covers the entire 50 - 250 bar setting range, and meets tough demands for dependability and life expectancy.
Motors
A built in pressure compensated flow regulator can be added, providing pressure compensated lowering speed between 2 and 17.5 lpm regardless of load.
Oil reservoir
The standard unit is equipped with a transparent plastic reservoir with 0.5 - 4.0 litres useable volume, or a 1.5 - 12.2 litres steel reservoir.
Valves
Screw cartridge valves with a standard cavity are available in 2/2, 3/2 or 4/2 versions. Cetop 2, Cetop 3 and additional cartridge valve blocks are available for up to 4 individual functions.
Check valves
Adaptors
Two different adaptors with two alternative mounting directions. The smaller HE 1000 adaptor and the larger HE 2000.
Specification of these power packs found in this on-line » catalogue « link
