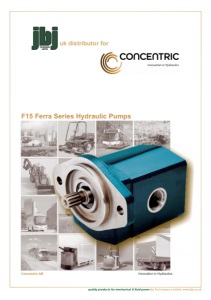

uk distributor for quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk F15 Ferra Series Hydraulic Pumps Concentric AB Innovation in Hydraulics

Concentric AB-F15 PMP-USA-2011-6 2 DESCRIPTION, FEATURES AND BENEFITS Pictures on front cover are used with the kind permission of eg: Atlet, BT, Huddig, Scania, Toro and Volvo Construction Equipment Concentric F series gear pumps have an outstanding history in mobile o -highway applications. The F15 is the latest addition. Taking the best design components from the F20/F30 series and adding new technology, Concentric has created a product of very high e ciency, yet retains the robust nature of the traditional cast iron bodied gear pump. The gear and shaft are one piece construction for drive and driven gear providing superior resistance to fatigue and allowing the use of large diameter journals for higher load-bearing capacity. Made of high strength heat treated steel, the 14-tooth gears reduce pressure ripple (noise) and improve volumetric e - ciency. Large Te on impregnated bushings are installed in precision bored covers for optimum alignment, providing support area capable of handling most indirect drives and fan loads. This design uses one integrated balanced bronze pressure plate for the optimum in wear surface and strength. With an integrated “E” seal in the pressure plate, this design reduces clearance, o sets axial loading, and balances itself as pressure increases. The F15 series can be ported in a variety of SAE, DIN, NPT, BSPP, and JIS sizes and combinations of side or rear locations. Drive shafts in SAE splined, keyed, and taper are o ered. Mounting anges are SAE 2-bolt “A” or 2-bolt “B” with either single or double shaft seal con guration. The double seal option is designed for use when the pump pilot extends into a crankcase or transmission. It prevents uid from one environment entering the other. TABLE OF CONTENTS Description, Features and Bene ts ..................................................................................................... 2 Speci cations and Application Data .................................................................................................. 3 Installation Dimensions / Model Codes F15.............................................................................................................................................. 4 - 5 F1509 ......................................................................................................................................... 6 - 7 F1515 ......................................................................................................................................... 8 - 9 F151515 ............................................................................................................................... 10 - 11 Mounting Flanges ................................................................................................................................... 12 Drive Shafts ................................................................................................................................................ 13 Performance Curves ............................................................................................................................... 14 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 3 Model 19 23 25 28 33 38 44 50 Typical Input Power @ Rated Speed And Pressure kw 32.48 39.32 42.74 47.87 56.41 64.96 60.33 53.42 Theoretical Displacement Per Revolution cc / c.i.r. 19 / 1.159 23 / 1.403 25 / 1.525 28 / 1.708 33 / 2.013 38 / 2.318 44 / 2.684 50 / 3.050 Continuous Rated Pressure bar / psi 276 / 4000 276 / 4000 276 / 4000 276 / 4000 276 / 4000 276 / 4000 228 / 3300 207 / 3000 Max Rated Speed @ Rated Pressure & 6” Hg Vacuum Inlet rpm 3600 3600 3600 3600 3600 3600 3500 3000 Min Rated Speed @ Rated Pressure & 6” Hg Vacuum Inlet rpm* 600 600 600 600 600 600 600 600 Typical Delivery @ Rated Speed And Pressure gpm 16.8 20.3 22.1 24.8 29.2 33.6 37.8 36.8 Typical Delivery @ Rated Speed And Pressure lpm 63.6 77.0 83.7 93.7 110.4 127.2 143.2 139.4 Typical Input Power @ Rated Speed And Pressure hp 43.6 52.7 57.3 64.2 75.7 87.1 80.9 71.6 PERFORMANCE SPECIFICATIONS for F15 Pumps * Lower speeds are permissable when operating below rated pressure. Rated speed of double pump is governed by pump with lower speed rating. If deliveries of both pumps are combined, rated pressure is governed by pump with lower pressure rating. E ciency Depending on displacement, speed and pressure, volumetric e ciency is 81-98% and overall e ciency is 71-92% with SAE 10W oil at 49°C (120°F). Inlet conditions Pressure on the inlet should not exceed 1 bar (15 psi). Under continuous operation, inlet vacuum should not exceed 0.17 bar (5” Hg). Operating temperatures Under continuous operation, a maximum of 96°C (205°F) is recommended. The maximum temperature for cyclic or intermittent operation is 107°C (225°F). Fluids and ltration For applications requiring re resistant uids, water glycols, water in-oil emulsions and synthetics can be used at slightly reduced ratings. Fluid should be selected with an operating viscosity similar to the petroleum oil described above. For application assistance, consult your Concentric representative. The system should be ltered to provide an ISO code (proposed) cleanliness level of 19/16. A 10 micron lter sized to accommodate full system return line ow, is recommended for most operating environments. Severe conditions may require greater e ciency from the lter. quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 4 F15 B [mm] 117.6 120.7 121.9 124.0 127.0 128.0 129.3 132.3 134.4 137.4 143.8 149.9 F15 FRONT / SIDE VIEW A [mm] 79.9 81.4 82.0 83.1 84.6 85.1 85.7 87.2 88.3 89.8 93.0 96.0 A in. 3.15 3.21 3.23 3.27 3.33 3.35 3.38 3.44 3.48 3.54 3.66 3.78 DISPLACEMENT CODE 19 22 23 25 28 29 30 33 35 38 44 50 CIR 1.16 1.34 1.40 1.53 1.71 1.77 1.83 2.01 2.14 2.32 2.68 3.05 CC 19 22 23 25 28 29 30 33 35 38 44 50 REAR / ISO VIEW All dimensions shown are for single shaft seal version and “for reference only”. Consult factory for your speci c con guration. B in. 4.63 4.75 4.80 4.88 5.00 5.04 5.09 5.21 5.29 5.41 5.66 5.90 [174] 6.9 [14] 2X Ø .6 [144] 5.7 [61] 2.4 [147] 5.8 [73] 2.9 [17] .7 [20] .8 [9] .4 [41] 1.6 [102] Ø 4.0 [8] 4X .3 B A [118] 4.6 [59] 2.3 [82] 3.2 [124] Ø 4.9 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 5 EXAMPLE: (F3)- F15- W- 2 - D- 19- B - 1- A - 12- A- 10- L Model Code for F15 Ferra Series Single Pumps Special Seals Ferra Series Mount Type Front Cover Inlet Port Displacements Outlet Port Rear Cover Shaft Seal Drive Shaft Port Locations Design Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description F15 F15 Ferra Series Single Gear Pump 3 (Mount Type) Order Code Description Single Shaft Seal S W Wet Mount (Double Shaft Seal) 4 (Front Cover) Order Code Description SAE “A” 2-Bolt Mount (consult factory) 1 SAE “B” 2-Bolt Mount 2 SAE “C” 2/4-Bolt Combination Mount (consult factory) 8 5 (Inlet Port) Order Code Description 1.00”, SAE 4-Bolt Split Flange B 1.25”, SAE 4-Bolt Split Flange C D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) #16 SAE (1 5/16” - 12) O-Ring V W #20 SAE (1 5/8” - 12) O-Ring #24 SAE (1 7/8” - 12) O-Ring X Contact factory for other requirements. 6 (Displacements) Order Code Cm3/In3 Order Code Cm3/In3 19 19 cc/1.16 in.3 38 38 cc/2.32 in.3 23 23 cc/1.40 in.3 44 44 cc/2.68 in.3 25 25 cc/1.53 in.3 50 50 cc/3.05 in.3 28 28 cc/1.71 in.3 33 33 cc/2.01 in.3 7 (Outlet Port) Order Code Description A .750”, SAE 4-Bolt Split Flange 1.00”, SAE 4-Bolt Split Flange B BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) #10 SAE (.875” - 14) O-Ring S #12 SAE (1 1/16” - 12) O-Ring T #16 SAE (1 5/16” - 12) O-Ring V Contact factory for other requirements. 8 (Rear Cover) Order Code Description Standard Single Pump Rear Cover (no options) 1 9 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) Double Shaft Seal (30 PSI) (W mount type only) B None C D High Pressure (150 PSI) 10 (Drive Shaft) Order Code Description SAE “B” Straight Keyed, .875” Diameter, 1.3125” Ext. 1 Tapered Threaded (1.50” taper per foot) 5 Tapered Keyed/Threaded 7 (.625” - 18 UNC, 1.50” taper per foot) SAE “B” 13-Tooth Spline, Major Dia. Fit 11 SAE “B” 13-Tooth Spline, Flat Root-Side Fit 12 SAE “A” 11-Tooth Spline 15 SAE “A” 9-Tooth Spline 19 SAE “BB” Straight Keyed, 1.00” diameter, 1.50” ext. 21 SAE “BB” 15-Tooth Spline, Flat Root-Side Fit 99 Contact factory for other requirements. 11 (Port Locations) Order Code Description Side Inlet / Side Outlet A Side Inlet / Rear Outlet (consult factory) B Rear Inlet / Side Outlet (consult factory) C Rear Inlet / Rear Outlet (consult factory) D 12 (Design Designation) Order Code Description Standard 10 13 (Rotation) Order Code Description Counterclockwise Rotation L Clockwise Rotation R quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 6 W900 SECTION F15 SECTION DISPLACEMENT CODE 6 8 10 11 14 16 19 23 27 28 DISPLACEMENT CODE 19 22 23 25 28 29 30 33 35 38 44 50 F1509 FRONT / SIDE VIEW REAR VIEW All dimensions shown are for reference only. Consult factory for your speci c con guration. B in. 2.9 3.0 3.1 3.2 3.4 3.5 3.6 3.9 4.1 4.2 C in. 1.0 1.1 1.1 1.2 1.2 1.3 1.4 1.5 1.6 1.6 A [mm] 118 121 122 125 128 129 130 133 135 138 144 150 A in. 4.7 4.8 4.8 4.9 5.0 5.1 5.1 5.2 5.3 5.4 5.7 5.9 CIR 1.16 1.34 1.40 1.53 1.71 1.77 1.83 2.01 2.14 2.32 2.68 3.05 CC 19 22 23 25 28 29 30 33 35 38 44 50 CIR 0.37 1.49 0.61 0.67 0.85 0.98 1.16 1.40 1.65 1.71 CC 6 8 10 11 14 16 19 23 27 28 B [mm] 73 76 79 81 85 88 93 98 104 106 C [mm] 26 27 29 29 32 33 35 38 41 42 ISO VIEW [174] 6.9 [14] Ø .6 [144] 5.7 [61] 2.4 [147] 5.8 [73] 2.9 [17] .7 [20] .8 [9] .4 [41] 1.6 [102] Ø 4.0 [25] 1.0 B A [107] 4.2 [59] 2.3 [44] 1.7 [29] 1.1 C [90] 3.5 [59] 2.3 [44] 1.7 [42] 1.6 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 7 EXAMPLE: (F3)- F1509- W- 2 - C- 19- B - A -11- Q- 12- A- 10- L Model Code for F1509 Ferra Series Tandem Pumps Special Seals Ferra Series Mount Front Cover Front Sectio Inlet Displacements Front Section Outlet Displacements Rear Section Outlet Drive Shaft Shaft Seal Design Designation Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Rear Section Inlet ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description Viton Seal F3 Standard Omit 2 (Series) Order Code Description F1509 F15 / W900 Ferra Series Tandem Pump 3 (Mount Type) Order Code Description Single Shaft Seal S Wet Mount (Double Shaft Seal) W 4 (Front Cover) Order Code Description SAE “A” 2-Bolt Mount (consult factory) 1 SAE “B” 2-Bolt Mount 2 SAE “C” 2/4-Bolt Combination Mount (consult factory) 8 5 (Front Section Inlet Port) Order Code Description 1.00”, SAE 4-Bolt Split Flange B 1.25”, SAE 4-Bolt Split Flange C 1.50”, SAE 4-Bolt Split Flange D 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) DM #16 SAE (1 5/16” - 12) O-Ring V #20 SAE (1 5/8” - 12) O-Ring W #24 SAE (1 7/8” - 12) O-Ring X Contact factory for other requirements. 6 (Front Section Displacements) Order Code Cm3/In3 Order Code Cm3/In3 19 19 cc/1.16 in.3 38 38 cc/2.32 in.3 23 23 cc/1.40 in.3 44 44 cc/2.68 in.3 25 25 cc/1.53 in.3 50 50 cc/3.05 in.3 28 28 cc/1.71 in.3 33 33 cc/2.01 in.3 7 (Front Section Outlet Port) Order Code Description .750”, SAE 4-Bolt Split Flange A 1.00”, SAE 4-Bolt Split Flange B 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) BM #10 SAE (.875” - 14) O-Ring S #12 SAE (1 1/16” - 12) O-Ring T #16 SAE (1 5/16” - 12) O-Ring V Contact factory for other requirements. 8 (Rear Section Inlet Port) Order Code Description 16 cc - 19 cc, .75”, SAE 4-Bolt Split Flange A 23 cc - 28 cc, 1”, SAE 4-Bolt Split Flange B 6 cc, #10 SAE (7/8”-14) Straight Thread S 8 cc - 16 cc, #12 SAE (1-1/16”-12) Straight Thread T 19 cc - 28 cc, #16 SAE (1-5/16”-12) Straight Thread V No Rear Inlet Port (Single Inlet for Double Pump) X Dual inlet for double pump. Split ange ports are not available for 6 cc - 14 cc sizes. Metric ports available, contact factory. 9 (Rear Section Displacements) Order Code Cm3/In3 Order Code Cm3/In3 6 6 cc/.366 in.3 16 16 cc/.976 in.3 8 8 cc/.488 in.3 19 19 cc/1.159 in.3 10 10 cc/.610 in.3 23 23 cc/1.403 in.3 11 11 cc/.671 in.3 27 27 cc/1.647 in.3 14 14 cc/.854 in.3 28 28 cc/1.709 in.3 10 (Rear Section Outlet Porting) Order Code Description 23 cc -28 cc, .750”, SAE 4-Bolt Split Flange A 6 cc, #8 SAE (3/4”-16) Straight Thread Q 8 cc - 16 cc, #10 SAE (.875” - 14) Straight Thread S 19 cc - 28 cc, #12 SAE (1 1/16” - 12) Straight Thread T 16 cc - 19 cc, .5”, SAE 4-Bolt Split Flange Y Contact factory for other requirements. 11 (Drive Shaft) Order Code Description SAE “B” Straight Keyed, .875” Diameter, 1.3125” Ext. 1 SAE “B” 13-Tooth Spline, Major Dia. Fit 11 SAE “B” 13-Tooth Spline, Flat Root-Side Fit 12 SAE “A” 11-Tooth Spline 15 SAE “A” 9-Tooth Spline 19 SAE “BB” Straight Keyed, 1.00” Dia. 21 SAE “BB” 15-Tooth Spline, Flat Root-Side Fit 99 Contact factory for other requirements. 12 (Shaft Seal) Order Code Description Single Shaft Seal (30 PSI) A Double Shaft Seal (30 PSI) (W mount type only) B None C High Pressure (150 PSI) D 13 (Design Designation) Order Code Description Standard 10 Seal Between Sections 11 14 (Rotation) Order Code Description Counterclockwise Rotation L Clockwise Rotation R quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 8 F1515 DISPLACEMENT CODE 19 22 23 25 28 29 30 33 35 38 44 50 F1515 All dimensions shown are for reference only. Consult factory for your speci c con guration. A [mm] 80 82 82 83 85 85 86 87 88 90 93 96 A in. 3.2 3.2 3.2 3.3 3.3 3.4 3.4 3.4 3.5 3.5 3.7 3.8 CIR 1.16 1.34 1.40 1.53 1.71 1.77 1.83 2.01 2.14 2.32 2.68 3.05 CC 19 22 23 25 28 29 30 33 35 38 44 50 REAR / ISO VIEW B [mm] 151 154 155 158 161 162 163 166 168 171 177 183 B in. 6.0 6.1 6.1 6.2 6.3 6.4 6.4 6.5 6.6 6.7 7.0 7.2 C [mm] 38 39 40 41 42 43 44 45 46 48 51 54 C in. 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.8 1.8 1.9 2.0 2.1 D [mm] 75 78 80 82 85 86 87 90 92 95 102 108 D in. 3.0 3.1 3.1 3.2 3.3 3.4 3.4 3.6 3.6 3.8 4.0 4.2 FRONT / SIDE VIEW [174] 6.9 [14] 2X Ø .6 [144] 5.7 [61] 2.4 [147] 5.8 [73] 2.9 [17] .7 [20] 2X .8 [9] .4 [41] 1.6 [102] Ø 4.0 B A [124] Ø 4.9 [59] 2.3 C [118] 4.6 [82] 3.2 [8] 4X .3 D quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 9 EXAMPLE: (F3)-F1515- W- 2 - C-19-B - D -25- A-12- A- 10- L Model Code for F1515 Ferra Series Tandem Pumps Special Seals Ferra Series Mount Front Cover Front Section Inlet Displacements Rear Section Inlet Displacements Rear Section Outlet Drive Shaft Shaft Seal Design Designation Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Front Section Outlet Contact factory for single inlet applications. ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description Viton Seal F3 Standard Omit 2 (Series) Order Code Description F1515 F15 / F15 Ferra Series Tandem Pump 3 (Mount Type) Order Code Description Single Shaft Seal S Wet Mount (Double Shaft Seal) W 4 (Front Cover) Order Code Description SAE “A” 2-Bolt Mount (consult factory) 1 SAE “B” 2-Bolt Mount 2 SAE “C” 2/4-Bolt Combination Mount (consult factory) 8 5 (Front Section Inlet Port) Order Code Description 1.00”, SAE 4-Bolt Split Flange B 1.25”, SAE 4-Bolt Split Flange C 1.50”, SAE 4-Bolt Split Flange D 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) DM #16 SAE (1 5/16” - 12) O-Ring V #20 SAE (1 5/8” - 12) O-Ring W #24 SAE (1 7/8” - 12) O-Ring X Contact factory for other requirements. 6 (Front Section Displacements) Order Code Cm3/In3 Order Code Cm3/In3 19 19 cc/1.16 in.3 38 38 cc/2.32 in.3 23 23 cc/1.40 in.3 44 44 cc/2.68 in.3 25 25 cc/1.53 in.3 50 50 cc/3.05 in.3 28 28 cc/1.71 in.3 33 33 cc/2.01 in.3 7 (Front Section Outlet Port) Order Code Description .750”, SAE 4-Bolt Split Flange A 1.00”, SAE 4-Bolt Split Flange B 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) BM #10 SAE (.875” - 14) O-Ring S #12 SAE (1 1/16” - 12) O-Ring T #16 SAE (1 5/16” - 12) O-Ring V Contact factory for other requirements. 8 (Rear Section Inlet Port) Order Code Description 1.00”, SAE 4-Bolt Split Flange B 1.25”, SAE 4-Bolt Split Flange C 1.50”, SAE 4-Bolt Split Flange D 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) DM #16 SAE (1 5/16” - 12) O-Ring V #20 SAE (1 5/8” - 12) O-Ring W #24 SAE (1 7/8” - 12) O-Ring X Contact factory for other requirements. 9 (Rear Section Displacements) Order Code Cm3/In3 Order Code Cm3/In3 08 3.8 cc/.23 in.3 28 13.3 cc/.81 in.3 12 5.7 cc/.35 in.3 32 15.2 cc/.93 in.3 16 7.6 cc/.47 in.3 36 17.1 cc/1.04 in.3 20 9.5 cc/.58 in.3 24 11.4 cc/.70 in.3 10 (Rear Section Outet Port) Order Code Description .750”, SAE 4-Bolt Split Flange A 1.00”, SAE 4-Bolt Split Flange B 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) BM #10 SAE (7/8”-14) Straight Thread S #12 SAE (1-1/16”-12) Straight Thread T #16 SAE (1-5/16”-12) Straight Thread V 11 (Drive Shaft) Order Code Description SAE “B” Straight Keyed, .875” Diameter, 1.3125” Ext. 1 SAE “B” 13-Tooth Spline, Major Dia. Fit 11 SAE “B” 13-Tooth Spline, Flat Root-Side Fit 12 SAE “A” 11-Tooth Spline 15 SAE “A” 9-Tooth Spline 19 SAE “BB” Straight Keyed, 1.00” diameter, 1.50” ext. 21 SAE “BB” 15-Tooth Spline, Flat Root-Side Fit 99 Contact factory for other requirements. 12 (Shaft Seal) Order Code Description Single Shaft Seal (30 PSI) A Double Shaft Seal (30 PSI) (W mount type only) B None C High Pressure (150 PSI) D 13 (Design Designation) Order Code Description Standard 10 Seal Between Sections 11 14 (Rotation) Order Code Description Counterclockwise Rotation L Clockwise Rotation R quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 10 F151515 DISPLACEMENT CODE 19 22 23 25 28 29 30 33 35 38 44 50 F151515 A [mm] 80 82 82 83 85 85 86 87 88 90 93 96 A in. 3.2 3.2 3.2 3.3 3.3 3.4 3.4 3.4 3.5 3.5 3.7 3.8 CIR 1.16 1.34 1.40 1.53 1.71 1.77 1.83 2.01 2.14 2.32 2.68 3.05 CC 19 22 23 25 28 29 30 33 35 38 44 50 B [mm] 151 154 155 158 161 162 163 166 168 171 177 183 B in. 6.0 6.1 6.1 6.2 6.3 6.4 6.4 6.5 6.6 6.7 7.0 7.2 C [mm] 38 39 40 41 42 43 44 45 46 48 51 54 C in. 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.8 1.8 1.9 2.0 2.1 D [mm] 109 112 113 115 118 120 121 124 126 129 135 141 D in. 4.3 4.4 4.5 4.5 4.7 4.7 4.7 4.9 5.0 5.1 5.3 5.6 E [mm] 38 39 40 41 42 43 44 45 46 48 51 54 E in. 1.5 1.6 1.6 1.6 1.7 1.7 1.7 1.8 1.8 1.9 2.0 2.1 F [mm] 75 78 80 82 85 86 87 90 92 95 102 108 F in. 3.0 3.1 3.1 3.2 3.3 3.4 3.4 3.6 3.6 3.8 4.0 4.2 All dimensions shown are for reference only. Consult factory for your speci c con guration. REAR / ISO VIEW FRONT / SIDE VIEW [174] 6.9 [14] 2X Ø .6 [144] 5.7 [61] 2.4 [147] 5.8 [73] 2.9 [17] .7 [20] 3X .8 [9] .4 [41] 1.6 [102] Ø 4.0 B A [124] Ø 4.9 [59] 2.3 C [118] 4.6 [82] 3.2 [8] 4X .3 D E F quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

11 EXAMPLE: (F3)- F151515 W- 2 - C- 19- B - D- 25- V - X- 25- A- 1- B - 10- L Model Code for F151515 Ferra Series Triple Pumps Special Seals Ferra Series Mount Front Cover Front Section Inlet Displacements Rear Section Inlet Displacements 2nd Section Outlet Drive Shaft Shaft Seal Design Designation Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Front Section Outlet 3rd Section Inlet Displacements 3rd Section Outlet ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description Viton Seal F3 Standard Omit 2 (Series) Order Code Description F151515 F15 / F15 / F15 Ferra Series Triple Pump 3 (Mount Type) Order Code Description Single Shaft Seal S Wet Mount (Double Shaft Seal) W 4 (Front Cover) Order Code Description SAE “A” 2-Bolt Mount (consult factory) 1 SAE “B” 2-Bolt Mount 2 SAE “C” 2/4-Bolt Combination Mount (consult factory) 8 5 (Front Section Inlet Port) Order Code Description 1.00”, SAE 4-Bolt Split Flange B 1.25”, SAE 4-Bolt Split Flange C 1.50”, SAE 4-Bolt Split Flange D 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) DM #16 SAE (1 5/16” - 12) O-Ring V #20 SAE (1 5/8” - 12) O-Ring W #24 SAE (1 7/8” - 12) O-Ring X Contact factory for other requirements. 6 (Front Section Displacements) Order Code Cm3/In3 Order Code Cm3/In3 19 19 cc/1.16 in.3 38 38 cc/2.32 in.3 23 23 cc/1.40 in.3 44 44 cc/2.68 in.3 25 25 cc/1.53 in.3 50 50 cc/3.05 in.3 28 28 cc/1.71 in.3 33 33 cc/2.01 in.3 7 (Front Section Outlet Port) Order Code Description .750”, SAE 4-Bolt Split Flange A 1.00”, SAE 4-Bolt Split Flange B 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) BM #10 SAE (.875” - 14) O-Ring S #12 SAE (1 1/16” - 12) O-Ring T #16 SAE (1 5/16” - 12) O-Ring V Contact factory for other requirements. 8 (Rear Section Inlet Port) Order Code Description 1.00”, SAE 4-Bolt Split Flange B 1.25”, SAE 4-Bolt Split Flange C 1.50”, SAE 4-Bolt Split Flange D 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) DM #16 SAE (1 5/16” - 12) O-Ring V #20 SAE (1 5/8” - 12) O-Ring W #24 SAE (1 7/8” - 12) O-Ring X Contact factory for other requirements. 9 (Second Section Displacements) Order Code Cm3/In3 Order Code Cm3/In3 19 19 cc/1.16 in.3 38 38 cc/2.32 in.3 23 23 cc/1.40 in.3 44 44 cc/2.68 in.3 25 25 cc/1.53 in.3 50 50 cc/3.05 in.3 28 28 cc/1.71 in.3 33 33 cc/2.01 in.3 * Contact factory for other requirements. See #14 Drive Shaft. 10 (Second Section Outet Port) Order Code Description .750”, SAE 4-Bolt Split Flange A 1.00”, SAE 4-Bolt Split Flange B 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) BM #10 SAE (7/8”-14) Straight Thread S #12 SAE (1-1/16”-12) Straight Thread T #16 SAE (1-5/16”-12) Straight Thread V 11 (Third Section Inlet Port) Order Code Description 1.00”, SAE 4-Bolt Split Flange B 1.25”, SAE 4-Bolt Split Flange C 1.50”, SAE 4-Bolt Split Flange D 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) DM #16 SAE (1 5/16” - 12) O-Ring V #20 SAE (1 5/8” - 12) O-Ring W #24 SAE (1 7/8” - 12) O-Ring X Contact factory for other requirements. 12 (Third Section Displacements) Order Code Cm3/In3 Order Code Cm3/In3 19 19 cc/1.16 in.3 38 38 cc/2.32 in.3 23 23 cc/1.40 in.3 44 44 cc/2.68 in.3 25 25 cc/1.53 in.3 50 50 cc/3.05 in.3 28 28 cc/1.71 in.3 33 33 cc/2.01 in.3 13 (Third Section Outet Port) Order Code Description .750”, SAE 4-Bolt Split Flange A 1.00”, SAE 4-Bolt Split Flange B 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) BM #10 SAE (7/8”-14) Straight Thread S #12 SAE (1-1/16”-12) Straight Thread T #16 SAE (1-5/16”-12) Straight Thread V 14 (Drive Shaft)* Order Code Description SAE “B” Straight Keyed, .875” Diameter, 1.3125” Ext. 1 SAE “B” 13-Tooth Spline, Flat Root-Side Fit 12 SAE “BB” Straight Keyed, 1.00” diameter, 1.50” ext. 21 SAE “BB” 15-Tooth Spline, Flat Root-Side Fit 99 15 (Shaft Seal) Order Code Description Single Shaft Seal (30 PSI) A Double Shaft Seal (30 PSI) (W mount type only) B None C High Pressure (150 PSI) D 16 (Design Designation) Order Code Description Standard 10 Seal Between Sections 11 17 (Rotation) Order Code Description Counterclockwise Rotation L Clockwise Rotation R quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 12 MOUNTING FLANGES SAE “A” 2-BOLT SAE “B” 2-BOLT SAE C 2/4-BOLT Consult factory for availability. Consult factory for availability. Consult factory for availability. .47 [11.94] R. 4 PLACES .36 [9.14] 2.094 [53.19] .240 [6.10] 3.75 [95.25] Dia. .65 Mounting Flange Thickness [16.56] .50 [12.7] 2.87 [73.00] .32 [8.10] .36 [9.14] 2.094 [53.19] .438 [11.13] Dia. thru 2 places as shown .50 [12.7] Mounting ange thickness Seal drain hole .33 [8.38] R. .57 [14.40] 4 PLACES .50 [12.7] 2.87 [73.00] Seal drain hole .37 [9.40] 2.254 [57.25] 2.254 [57.25] 3.56 [90.48] 3.56 [90.48] 2.254 [57.25] 2.254 [57.25] R. .64 [16.3] 4 PLACES .61 [15.5] .61 [15.5] .49 [12.45] .32 [8.1] .50 [12.7] Mounting Flange Thickness 3.250 3.248 [82.55] [82.50] 4.000 3.998 [101.60] [101.54] 5.000 4.998 [127.00] [126.95] quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 13 DRIVE SHAFTS * Applies to coaxial applications only. Consult representative if application requires greater capacity or has side loads. For shaft options not shown, contact factory for speci c shaft information. SAE “B” STRAIGHT KEY Shaft No. 1: For F15, F1509 & F1515 Pumps 292.6 Nm (2590 in. lb.) torsional capacity.* [41.15] 1.62 1.312 [33.32] 1.062 [26.97] full depth .250 [6.356] sq. / 1.00 [25.40] long key .987 [25.07] .977 [24.82] .030 [.76] .020 [.51] R. .875 .874 [22.22] [22.20] Dia. SAE “B” INVOLUTE SPLINE Shaft No. 12: For F15, F1509 & F1515 Pumps 279.6 Nm (2475 in. lb.) torsional capacity.* Flat Root - Side Fit No. of Teeth - 13 Diametral Pitch - 16/32 Pressure Angle - 30° [41.15] 1.62 [12.7] .50 .060 [1.52] x 45° [33.32] 1.312 .060 [1.52] .090 [2.29] R. SAE “B-B” INVOLUTE SPLINE Shaft No. 99: For F15, F1509, F1515 & F151515 Pumps 451.9 Nm (4000 in. lb.) torsional capacity.* Flat Root - Side Fit No. of Teeth - 15 Diametral Pitch - 16/32 Pressure Angle - 30° [45.97] 1.81 [12.7] .50 [38.10] 1.50 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-F15 PMP-USA-2011-6 14 Technical Performance Data F15 Pumps ) %( c i r t e mu l o V 4000 3000 2000 1000 0 70% 80% 90% 100% RPM 2000 psi [138 bar] 3000 psi [207 bar] 4000 psi [276 bar] 500 psi [34 bar] ) %( l ac i n a hc e M 500 psi [34 bar] 4000 3000 2000 1000 0 70% 80% 90% 100% RPM 2000 psi [138 bar] 3000 psi [207 bar] 4000 psi [276 bar] ) %( l l a r e vO 2000 psi [138 bar] 3000 psi [207 bar] 4000 psi [276 bar] 500 psi [34 bar] 4000 3000 2000 1000 0 70% 80% 90% 100% RPM quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Cast Iron Pumps Heavy Duty GC Series Pumps Displacements 1.06 to 11.65 cc GC Series High/Low Pumps High Pressure Displacements 1.06 to 4.22 cc Low Pressure Displacements 4.22 to 12.71 cc Maximum Pressure 276 bar Maximum Speed 4,000 rpm W-Series Pumps W100 Displacements 0.50 to 2.00 cc W300 Displacements 0.80 to 5.70 cc W600 Displacements 4 to 12 cc W900 Displacements 5 to 31 cc W1200 Displacements 25 to 33 cc W1500 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 500 to 4,000 rpm D Series Pumps Displacements 03.80 to 22.85 cc D Series High/Low Pumps High Pressure Displacements 7.62 cc Low Pressure Displacements 15.24 to 22.86 cc Maximum Pressure 207–276 bar Maximum Speed 3,600–4,000 rpm WK900 CALMA Pumps Displacements 5 to 27 cc Maximum Pressure 230 bar Maximum Speed 4,000 rpm F12 & F15 Ferra Series Pumps F12 Displacements 16 – 41 cc F15 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm Cast Iron Displacements 1.06 to 161 cc Speed Up to 10,000 rpm Aluminum Displacements 4 to 50 cc Speed Up to 4,000 rpm Flow Dividers Fluid Motors GC & D Series GC Displacements 1.58 to 8.47 cc D Displacements 3.8 to 13.32 cc Maximum Pressure 310 bar Maximum Input Flow Per Section 14 gpm (53 lpm) Aluminum Pumps Medium/Light Duty F20/F30 Pumps & F20-LS/F30-LS Load Sense Ferra Series Pumps Displacements 23 to 161 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm PUMPS & MOTORS
