Concentric fan drives from jbj Techniques Limited

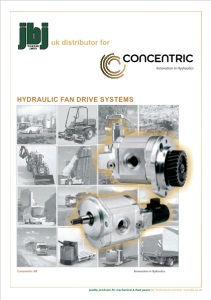

uk distributor for quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk HYDRAULIC FAN DRIVE SYSTEMS

Concentric AB-FAN DRIVE-US-2011-6 2 Concentric Hydraulic Fan Drives The Concentric fan drive offering includes systems that range from simple to complex. System designers can choose the option best suited to the design criteria driving each vehicle and cooling system project. The fan drive systems and components within this catalog are not all inclusive regarding system solutions. For instance, the fan drive system may also be integral to the hydrostatic drive charge pump system, the brake charging system, the pilot control valve system, etc. Concentric has provided fan drive system solutions for all these and many other types of integrations. Solutions from the vehicle perspective are one of our core competencies. We have many other products (pumps, electrohydraulic power systems, valves, etc.) that may be applicable to your application. Therefore, if you do not find the specific solution within this catalog, contact Concentric for assistance. We will engineer a solution specifically for your vehicle. Pictures on front cover are used with the kind permission of eg: Atlet, BT, Huddig, Scania, Toro and Volvo Construction Equipment. Vehicle Host Control ECM WM900 Motor W900 Pump Reservoir The demand for increased energy savings, reduced emissions and reduced noise in vehicles is requiring that vehicle engineers question traditional design approaches and traditional systems. One area of focus on vehicles ranging from buses to excavators is cooling systems. Concentric fan drive systems offer significant advantages to cooling system designers when compared to traditional belt and electric fan drive systems. These advantages include: • Fan speed independent of engine speed • Precise control of coolant temperature • On-Demand cooling capability which eliminates excess power consumption • Reduced noise • Reduced emissions • Flexibility in cooling system design quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-FAN DRIVE-US-2011-6 3 Table of Contents Basic Systems & Selection Criteria.....................................................................................................................................................2 - 4 System Descriptions........................................................................................................................................................................... 5 - 10 How To Apply A Fan Drive System ...................................................................................................................................................... 11 Recommended Application Data Information .......................................................................................................................12 - 13 Concentric Pumps & Hydraulic Motor Quick Reference Chart................................................................................................... 14 Ordering Guide ........................................................................................................................................................................................... 15 Controls Capability ..........................................................................................................................................................................16 - 20 Concentric is a leader in the design and application of Hydraulic Fan Drive systems. This catalog has been designed to be a tool to assist you in selecting the fan drive system that best meets your vehicle needs. A simple guide to mating the system to your objectives is included on Page 4. Pages 5-10 outline each type of fan drive system and the various circuits available for each type of system. The systems are: • Follows Engine Speed • On / Off • Independently Variable • Two Speed A typical performance map is included for each circuit along with a circuit diagram. A very detailed guide to applying a fan drive system is featured on Page 11. A quick reference to the full line of Concentric pumps and fluid motors is included on Page 14. The catalog also describes the electronic controls that are available for controlling fan drive systems as well as guidance in specifying the control parameters required for your system. When used in conjunction with the Concentric Hydraulic Motor catalog, this catalog allows for the fan drive system you have chosen to be specified by model code. In addition, a staff of knowledgeable applications specialists is available to assist you with any of your custom requirements. About This Catalog quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

4 Follows Engine Speed No Over Speed w/ Over Speed Protection Protection On / Off Independently Variable 2 Speed 9 Cost Noise 7 Temperature control Efficiency TOTALS An On / Off will be most likely to fit your needs for your hydraulic fan drive system. Of course, other system parameters may override this choice. Selecting The Best System For Your Needs The system drivers shown on the "Y" axis generally provide an initial indication of the basic type of fan drive system to pursue: INSTRUCTIONS: 1. Choose your most important drivers (cost, noise, temperature control or efficiency) for determining the appropriate fan drive system. You may choose any number of these drivers. 2. Assign a number between 1 and 10 for importance to the drivers you have chosen (10 being the highest importance). 3. Place these numbers in the boxes to the left of the drivers. 4. Multiply the importance number by the number in each circuit column. (ex. check valve circuit: 5, 1, 1, 1, etc.) Then put that product into the box to the right. 5. Total the numbers in the boxes for each circuit column. The highest total represents the system that will most likely fit your needs. Matrix of criteria vs. type of hydraulic fan drive systems. Select two drivers. Follows Engine Speed No Over Speed w/ Over Speed Protection Protection On / Off Independently Variable 2 Speed Cost Noise Temperature control Efficiency TOTALS 5 1 1 1 4 2 2 2 3 3 4 4 1 5 5 5 2 4 3 3 EXAMPLE: Assuming Cost and Temperature Control are the most important drivers. Cost is ranked as a 9 and Temperature Control as a 7. (See scenario below.) 5 45 1 1 7 1 52 4 36 2 2 14 2 50 3 27 3 4 28 4 55 1 9 5 5 35 5 44 2 18 4 3 21 3 39 quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

5 System Descriptions FAN DRIVE SYSTEMS: Follows Engine Speed No Over Speed Protection Circuit 1 - Check valve to prevent cavitation during deceleration and spin-down. PERFORMANCE (Circuit 1) * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 32 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 32 mm + 111 mm = 143 mm [5.62 in.] max. length. WM600 WM900 WM1500 FM20 FM30 FAMILY WM600 WM900 WM1500 GM20 GM30 L* 13 [.51] 32 [1.25] 40 [1.57] 32 [1.25] 35 [1.37] W 77 [3.03] 88 [3.46] 115 [4.52] 149 [5.86] 171 [6.73] H 86 [3.38] 106 [4.17] 135 [5.31] 164 [6.45] 183 [7.2] FAN DRIVE SYSTEMS: Follows Engine Speed w/ Over Speed Protection Circuit 2 - Relief valve to limit the maximum motor speed and protect the motor from over-pressurization. * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 32 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 32 mm + 111 mm = 143 mm [5.62 in.] max. length. WM600 WM900 WM1500 FM20 FM30 FAMILY WM600 WM900 WM1500 GM20 GM30 L* 37 [1.45] 32 [1.25] 40 [1.57] 32 [1.25] 35 [1.37] W 140 [5.51] 88 [3.46] 113 [4.44] 148 [5.82] 171 [6.73] H 86 [3.38] 130 [5.11] 144 [5.66] 170 [6.69] 213 [8.38] PERFORMANCE (Circuits 2, 3 & 8) quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Concentric AB-FAN DRIVE-US-2011-6 6 FAN DRIVE SYSTEMS: Follows Engine Speed w/ Over Speed Protection Circuit 8 - Check valve to prevent cavitation during deceleration and spin-down, a solenoid valve to control the direction of flow through the motor and a cross-over relief valve to limit the maximum motor speed and protect the motor from over-pressurization in both directions. * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 49 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 49 mm + 111 mm = 160 mm [6.29 in.] max. length. WM600 WM900 WM1500 FAMILY WM600 WM900 WM1500 L* 47 [1.85] 49 [1.92] 51 [2] W 197 [7.75] 238 [9.37] 243 [9.56] H 91 [3.58] 115 [4.52] 141 [5.55] System Descriptions (cont.) FAN DRIVE SYSTEMS: Follows Engine Speed w/ Over Speed Protection Circuit 3 - Check valve to prevent cavitation during deceleration and spin-down and a relief valve to limit the maximum motor speed and protect the motor from over-pressurization. * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 40 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 40 mm + 111 mm = 151 mm [5.94 in.] max. length. WM600 WM900 WM1500 FM20 FM30 FAMILY WM600 WM900 WM1500 GM20 GM30 L* 37 [1.45] 40 [1.57] 40 [1.57] 32 [1.25] 35 [1.37] W 138 [5.43] 90 [3.54] 160 [6.29] 148 [5.82] 171 [6.73] H 89 [3.5] 130 [5.11] 135 [5.31] 180 [7.08] 213 [8.38] PERFORMANCE (Circuits 2, 3 & 8) PERFORMANCE (Circuits 2, 3 & 8) quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk

7 System Descriptions (cont.) FAN DRIVE SYSTEMS: On / Off Circuit 4 - Relief valve to limit the maximum motor speed and prevent the motor from over-pressurization and a solenoid valve to bypass flow around the motor. * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 92 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 92 mm + 111 mm = 203 mm [7.99 in.] max. length. WM600 WM900 WM1500 FM20 FM30 FAMILY WM600 WM900 WM1500 GM20 GM30 L* 37 [1.45] 92 [3.62] 40 [1.57] 32 [1.25] 35 [1.37] W 138 [5.43] 90 [3.54] 177 [6.96] 148 [5.82] 171 [6.73] H 137 [5.39] 130 [5.11] 144 [5.66] 230 [9.05] 239 [9.4] NOTE: Valve coils not shown for clarity. PERFORMANCE (Circuit 4) * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 48 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 48 mm + 111 mm = 159 mm [6.25 in.] max. length. WM600 WM900 WM1500 FAMILY WM600 WM900 WM1500 L* 29 [1.14] 48 [1.88] 33 [1.29] W 144 [5.66] 146 [5.74] 155 [6.1] H 137 [5.39] 137 [5.39] 167 [6.57] Circuit 10 - Check valve to prevent cavitation during deceleration and spin-down, a thermal pilot-operated wax capsule to activate the relief valve at a specific temperature, a relief valve to limit the maximum fan speed and protect the motor from over-pressurization and a needle valve for field adjusting the relief valve (if required) and the minimum motor speed. Note: This system only monitors the fluid running through it (no external signal available). PERFORMANCE (Circuit 10) quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

8 System Descriptions (cont.) FAN DRIVE SYSTEMS: Independently Variable Circuit 5 - Proportional relief valve to control motor speed from idle to max. RPM and to protect the motor from over-pressurization. * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 32 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 32 mm + 111 mm = 143 mm [5.62 in.] max. length. WM600 WM900 WM1500 FM20 FM30 FAMILY WM600 WM900 WM1500 GM20 GM30 L* 37 [1.45] 32 [1.25] 40 [1.57] 32 1.25] 35 [1.37] W 153 [6.02] 88 [3.46] 113 [4.44] 148 [5.82] 171 [6.73] H 89 [3.5] 140 [5.51] 159 [6.25] 180 [7.08] 213 [8.38] NOTE: Valve coils not shown for clarity. * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 46 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 46 mm + 111 mm = 157 mm [6.18 in.] max. length. WM600 WM900 WM1500 FM20 FM30 FAMILY WM600 WM900 WM1500 GM20 GM30 L* 37 [1.45] 46 [1.81] 40 [1.57] 32 [1.25] 35 [1.37] W 153 [6.02] 90 [3.54] 173 [6.81] 148 [5.82] 171 [6.73] H 89 [3.5] 139 [5.47] 135 [5.31] 190 [7.48] 213 [8.38] Circuit 6 - Proportional relief valve to control motor speed from idle to max. RPM and protect the motor from over-pressurization and check valve to prevent cavitation during deceleration and spin-down. NOTE: Valve coils not shown for clarity. PERFORMANCE (Circuits 5 & 6) PERFORMANCE (Circuits 5 & 6) quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

9 System Descriptions (cont.) * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 50 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 50 mm + 111 mm = 161 mm [6.33 in.] max. length. WM600 WM900 WM1500 FAMILY WM600 WM900 WM1500 L* 48 [1.88] 50 [1.96] 41 [1.61] W 182 [7.16] 184 [7.24] 192 [7.55] H 91 [3.58] 112 [4.4] 135 [5.31] Circuit 9 - Proportional flow control to control the fan speed from idle to max. RPM including a load sense shuttle valve. Primarily used with closed center piston pump systems. NOTE: Valve coils not shown for clarity. PERFORMANCE (Circuit 9) quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

10 System Descriptions (cont.) * Length adder to Hydraulic Motor Catalog max. length dimension, mm [inch]. E.G. WM900 L above = 49 mm. WM900 max. length in Motor Catalog - pg 16 (X dim.) = 111 mm [4.37 in.] for 19 cc. Therefore, 49 mm + 111 mm = 160 mm [6.29 in.] max. length. WM600 WM900 WM1500 FAMILY WM600 WM900 WM1500 L* 37 [1.45] 49 [1.92] 40 [1.57] W 138 [5.43] 152 [5.98] 166 [6.53] H 137 [5.39] 112 [4.4] 135 [5.31] FAN DRIVE SYSTEMS: Two-Speed Circuit 7 - Check valve to prevent cavitation during deceleration and spin-down, a relief valve to limit the maximum motor speed and protect the motor from over-pressurization and a solenoid valve to provide two-speed operation. NOTE: Valve coils not shown for clarity. PERFORMANCE (Circuit 7) quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

11 Determine critical fan speed, NM at a specified engine speed, NE (RPM). 2. Determine fan power, HP, or torque, TM required at the critical speed. (HP or ft-lbs) Convert power to torque, if necessary. M M N lbs HP T ft 5252 ) (    Determine fan system operating pressure, P at the critical speed. (PSI) This pressure is up to the designer’s discretion and depends on several factors including pressure ratings for system components, component sizes and system life requirements. Pump and motor sizes will be smaller with higher pressures but system life reduces as pressure increases. Also, any “under hood” regulations should be considered. Calculate motor displacement. P D c TM M 1374 ( )   Calculate flow required, QM for the motor at critical speed. 3485 ) ( M M M Q GPM D N   If a clipping relief valve is not being used in the motor, required pump flow, QP = QM - Skip to step 8. Determine additional flow, QA, to allow over the relief valve to compensate for temperature variations and component wear for maintaining a consistent fan speed (at critical fan speed NM). Add this to the required motor flow, QM to get the flow required from the pump. QP A M P Q GPM Q Q   ) ( This flow is up to the designer’s discretion. It is safe to assume a 10% reduction in system volumetric efficiency over its life. Also, it is safe to assume a 5-10% reduction in volumetric efficiency at oil temperatures exceeding 180°F. In order to compensate for these factors, the pump can be sized for additional flow. Note: This additional flow will be discharged over the relief valve at system pressure. This should be calculated into the total heat load requirements of the system. Determine pump speed, NP at the specified engine speed, NE (RPM). This is determined from the engine to pump speed ratio. Example: If the ratio of engine speed to pump speed is 1:1.2, 1.2   E P N N Calculate pump displacement. P P P N D c Q 4030 ( )   Calculate required maximum input torque, TP for the pump. 68 ) ( P P lbs P D T ft    This is required for selecting the type of shaft end (i.e. 9 tooth vs. 11 tooth spline, etc.) and provides for engine HP loss to drive fan at maximum condition. 11. Select the proper pump and motor series based on displacements, pressure, shaft loading, mounting requirements, etc. from the Concentric pump and fluid motor families. See catalog page 14 to begin family selection. Note: The pump and motor efficiencies assumed in the equations above are conservative to insure that the system is not under cooled. Variables: NM Motor Speed (RPM) QM Motor Input Flow (GPM) DP Pump Displacement (cc) NP Pump Speed (RPM) QP Pump Output Flow (GPM) DM Motor Displacement (cc) NE Engine Speed (RPM) TM Motor Output Torque (ft-lbs) P Fan System Pressure (PSI) HP Fan Power (HP) TP Pump Input Torque (ft-lbs) QA Additional Flow over RV (GPM) See Application Data Sheets on pages 12 & 13. Step by Step instructions on how to apply a Fan Drive System. The balance of the fan drive information is to be filled in on the Fan Drive Application Data sheets (see pages 12 and 13). NOTE: Formula numbers in bold and circled correspond to numbers in bold and circled in Application Data Sheets on pages 12 and 13. HowTo Apply A Fan Drive System 1 10 9 8 7 6 5 4 3 1115 quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

12 Fan Drive System Application Data Sheet Note: Transfer the items from each step in the fan drive sizing procedure on page 11 to the spaces below (and right) with circled numbers in bold. Contact: Motor Project #: Phone: Pump Project #: Fax: Date: Customer: Originator: Address: Motor Target Price: Pump Target Price: City, State, Zip: E.A.U.: E-mail Address: Competitive Information (model #, current problems, etc.): System Information Application Description: Maximum System Pressure: Fluid Type: Viscosity Range: Temp. Range: Filtration Level: Ambient Temp. Range: Design Life Requirement: Noise Limitations: Motor Information Customer P/N: Current Supplier: Displacement: Motor Model Code (If Known): Valve Model Code (If Known): Fan Speed Range: Torque Range: Critical Fan Speed: Torque at Critical Speed: Supply Flow Range: Pressure at Critical Speed: Recommended Application Data Information 5 1 3 4 Hydraulic Circuit: quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

13 Flow Required at Critical Speed: Maximum Outlet Pressure: Is Case Drain Acceptable? : Yes / No Rotation (looking at fan motor shaft): CW / CCW / Bi-rotational Flange Style: Shaft Style: Seal and Outboard Ball Bearing Requirements: Dust Seal : Yes / No Radial Shaft Load: ________ @ ________ RPM Axial Shaft Load: ________ @ ________ RPM Inlet Port Size: Outlet Port Size: Valving Requirements: Relief Valve Setting: ________ @ ________ Fan RPM Does RV Limit Fan Speed? Yes / No Flow Allowed Over RV for Wear / Temperature Variations: Solenoid Coil Voltage: Solenoid Coil Connector Style: Proportional Controller Required? Yes / No If Yes, see Controller Requirements on pages 16 - 20. Envelope Restrictions (L x W x H): Motor Shaft Orientation (horizontal, vertical, other: describe): Pump Information Customer P/N: Current Supplier: Displacement: Pump Model Code (if known): Valve Model Code (if known): Engine RPM Range: Engine to Pump RPM Ratio: Critical Engine Speed: Pump Flow at Critical Speed: Pump Input Torque: Rotation: CW / CCW Flange Style: Shaft Style: Wet Mount: Yes / No Seal and Outboard Ball Bearing Requirements: Are Dual Seals and a Weep Hole Required? Yes / No Radial Shaft Load: ________ @ ________ RPM Axial Shaft Load: ________ @ ________ RPM Inlet Port Size: Outlet Port Size: Valving Requirements: Envelope Restrictions (L x W x H): Fan Information Manufacturer: Contact: Diameter: Material: Weight: Max. Rated Speed: Balance Specification: Torque vs. Speed Equation (supply curve if available): Thrust vs. Speed Equation (supply curve if available): Push / Pull Relative to Motor Shaft: Recommended Application Data Information (cont.) 6 7 9 8 7 1 10 quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

14 Quick Reference Chart Concentric offers one of the widest selections of gear pumps and hydraulic motors in the industry. All Concentric products are designed to provide solutions to our customers' application challenges. Concentric pumps and motors are used for fan drive systems on skid steer loaders, wheel loaders, excavators, paving equipment, buses and forklifts. Leading equipment manufacturers throughout the mobile equipment market specify these components. The Concentric line of hydraulic pumps and motors covers a displacement range from .065 in.3 to 9.82 in.3. The various series include cast iron fixed clearance, aluminum body pressure balanced and cast iron pressure balanced designs. Both unidirectional and birotational configurations are available. Each series offers a large selection of shaft, flange and valve options to meet your application requirements. Concentric Pump & Fluid Motors for Fan Drive Systems Special fixed displacement product. Sizing characteristics differ from those shown in this catalog. Contact factory for assistance. * NOTE: As can be seen from the above quick reference chart, a displacement selection may cross several different pump or motor families (frame sizes). Frame sizes overlap intentionally. This provides capability in one frame size that is not achievable in another. For instance, the example illustrates that the displacement selected (27cc) is available in the WM900 and WM1500 motor. The WM1500 has higher bearing side load capability and pressure capability, but is not as economical as the WM900 model. If the application does not need these additional capacities in pressure and load, the WM900 would be the motor of choice; i.e. best value. For a full illustration of the family capability, please refer to the specific product catalog (Concentric Hydraulic Motor Catalog, W900 Pump Catalog, etc.). .065 .129 .517 .732 1.50 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.82 1 cc 2 cc 8 cc 12 cc 24 cc 33 cc 50 cc 65 cc 82 cc 98 cc 114 cc 131 cc 161 cc Displacement (in.3/rev.) (cc/rev) WM600 Series WM900 Series WM1500 Series FM20 Series FM30 Series GC Series 1.65 27 cc * .065 .129 .517 .732 1.50 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.82 1 cc 2 cc 8 cc 12 cc 24 cc 33 cc 50 cc 65 cc 82 cc 98 cc 114 cc 131 cc 161 cc Displacement (in.3/rev.) (cc/rev) W600 Series W900 Series D Series W1500 Series F20 Series F30 Series GC Series 1.65 27 cc * * Motors Pumps quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

15 1 2 3 4 5 6 7 Fan Drive System Ordering Information Each Fan Drive option has been assigned an order code which is listed in the tables below. Configure the desired options as shown in the example model code to the right. Note: The fan drive order code is a suffix to the WM600, WM900 & WM1500 motor order code as shown in the example below. The fan drive order code for the FM20 & FM30 appears in the middle of the model code as shown in the example below. 1. ORDER CODE VALVE OPTION RELIEF VALVE SETTING FLOW FOR RV SETTING SOLENOID TYPE COIL VOLTAGE TERMINATION TYPE VALVE TYPE EXAMPLE MB NN R1200 F45 SF 024 DS Your Options The descriptions and circuit numbers below correspond to the circuits on pages 5 through 10. (WM600 &WM1500 are similar to the WM900 example shown here.) (FM30 is similar to the FM20 example shown here.) Sample WM900 Motor Model Code from Hydraulic Motor Catalog, page 21, followed by Fan Drive Model Code shown above: WM900 Motor Fan Drive WM09A1 / B / 190 / R / 03 / FA / 103 MB / NN / R1200 / F45 / SF / 024 / DS Sample FM20 Motor Model Code from Hydraulic Motor Catalog, page 41, with Fan Drive Model Code shown above in between: FM20 Motor Fan Drive FM20 Motor P1 - FM20D - 2W15V11H MBNNR1200SF024DS A1261L VALVE TYPE MODEL Circuit Page Family CODE DESCRIPTIONS # # W600 W900 / W1500 F20 /F30 GE Overrunning Check Valve, Integral 1 5 • GF Overrunning Check Valve, Cartridge 1 5 • • FA Relief Valve 2 5 • • • HP Overrunning Check Valve and Relief Valve 3 6 • (Integral CV & Cartridge RV) HR Overrunning Check Valve and Relief Valve 3 6 • • (Cartridge CV & RV) MB Normally Closed Two-Way Solenoid Valve 4 7 • • • with Relief Valve (Cartridge RV) PA Proportional Relief Valve Only 5 8 • • • PB Proportional Relief Valve with Check Valve 6 8 • (Integral CV) PC Proportional Relief Valve with Check Valve 6 8 • • (Cartridge CV) MD Normally Closed Two-Way Solenoid Valve 7 10 • with Check Valve and Relief Valve (Integral CV & Cartridge RV) ME Normally Closed Two-Way Solenoid Valve 7 10 • with Check Valve and Relief Valve (Cartridge CV & RV) RA 2-Position, 4-Way Solenoid Valve, Cross- 8 6 • Over Relief Valve and Check Valve (Integral CV) RB 2-Position, 4-Way Solenoid Valve, Cross- 8 6 • Over Relief Valve and Check Valve (Cartridge CV) PD Proportional Flow Control with Shuttle Valve 9 9 • • TA Thermo Valve 10 7 • • 2. VALVE OPTION For Normally Closed Two-Way Solenoid Valve Options MD & ME, an orifice has to be specified. Orifice size is application dependent. Please contact factory to determine size. For Thermo Valve Option TA ONLY (Specify temperature setting): Model Description 40 40ºC (104ºF) 50 50ºC (122ºF) 55 55ºC (131ºF) 60 60ºC (140ºF) For Proportional Valve Options PA, PB, PC & PD ONLY (Specify proportional valve controller): Model Description 01 Proportional Valve Controller - Coil Mounted 02 Proportional Valve Controller - Remote NN Not Applicable 7. TERMINATION TYPE DS Dual Spades DL Leadwires (2) DM Leads with Metripak-150 Connectors DD DIN 43650 Connector NN NOT APPLICABLE 6. COIL VOLTAGE 010 10 VDC 012 12 VDC 024 24 VDC 036 36 VDC 048 48 VDC NN NOT APPLICABLE 5. SOLENOID PRESSURE RATING SF < 3000 PSI NN Not Applicable 4. FLOW FOR RV SETTING Specify the flow at which the relief valve is to be set. (RV will be set at 0.25 GPM, if not specified.) F ** Relief flow multiplied by 10. Available in 0.5 GPM increments from 2 to 8 GPM. NN Not Applicable Example: F45 The relief valve will be set at the specified pressure with a full-bypass flow of 4.5 GPM. All values assume 32cSt (151 SSU) viscosity. 3. RELIEF VALVE SETTING R**** Available in 100 PSI increments to 3000 PSI. Consult factory **** for higher pressures. Proportional Relief Valve has a max. setting. Choose 1000, 2000 or 3000 PSI only. NN Not Applicable NOTE: WM600 Relief Valve has a max. setting of 2600 PSI. Consult factory for higher settings. quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

16 Concentric offers a complete line of Fan Drive electronic controls that interface directly with the electrohydraulic Fan Drive packages. These range in complexity from simple proportional plug and play controls that plug directly into the electrohydraulic valve coil, to stand alone electronic control packages that operate the entire fan drive control system. The controls illustrated demonstrate the spectrum of features available to the OEM. Concentric will assist the OEM in the control specification to achieve the optimum system for the specific vehicle. GENERAL OPERATION OF THE Concentric FAN DRIVE CONTROLLERS Fan drive controllers are designed to control the pressure relieving electro-proportional cartridge valves as part of a proportional fan-drive system. Since fan torque is a cubic function relative to speed, it is more economical to control fan speed using pressure control than flow control. These controllers range in sophistication from simple on-off inputs to multiple sensor proportional inputs and are designed to fit the needs of rugged offhighway vehicles. The controllers illustrated operate on the principle that temperature is to be proportionally controlled between design set points. They provide the necessary output to the electrohydraulic proportional valve in the fan drive system allowing precise fan motor speed correlated to temperature. The inputs can range from a temperature switch providing a voltage input to the controller, to an analog sensor input correlated to temperature. The controllers illustrated in this catalog are typical of the two types developed specifically for fan drive systems. However, special controllers can be developed for higher volume OEM applications. INTEGRAL PLUG-IN CONTROLLERS DESCRIPTION These controllers are designed for single input temperature control. They consist of a series of convenient, plug-mounted control amplifiers for controlling the fan drive proportional valves. These valve solenoids and controllers have DIN 43650/ISO 4400 electrical connectors. These controllers come in a variety of input and output configurations and adjustments. OPERATION This control module utilizes high frequency switching (PWM) to supply a proportional valve solenoid with an input signal that is proportional to an external signal. The external signal can be from a 10K potentiometer, 0–5 VDC, 0-10 VDC, 0–20 mA, or from other pre-set levels. NOTE: Simplified controllers are also available (re: ramping only) NOTE: These controllers fail to full fan speed mode. TYPICAL FEATURES • Mounts directly to solenoid coils with DIN 43650A connectors. • IP65 internal protection (IEC529). • Adjustments accessible with a removable cover. • No internal fuses; circuit limits current electronically. • Short circuit proof and reverse polarity protected. • Connector can be disconnected from coil when powered. • Maximum current adjustment does not affect minimum current setting. • Independent ramp adjustments and internal supply for potentiometer. • Fails to full fan speed. Controls Capability quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

17 TYPICAL RATINGS Supply Voltage: 9–32 VDC Control Input Signal Options: 10 K external potentiometer (accepts 5K to 50K pots), or 0–5 VDC signal, 0-10 VDC signal, or 0–20 mA current signal. Input Resistance: Voltage Control: 125K Ohms; Current Control: 50K Ohms Ramp Up and/or Down: 0.01–5.0 seconds (independently adjustable) Operating Conditions: –20° to 85°C (-4º to 185ºF); 0 to 85% relative humidity REMOTE MOUNTED CONTROLLER (See Page 20 for illustration) Description: These controllers are designed for multiple input temperature control. Power supply input is 12 or 24 VDC (nominal). The controller accepts up to three analog temperature sensor inputs and up to two digital inputs. The OEM can select the number of temperature inputs by setting a DIP switch on the controller. NOTE: Once specified, these can be factory preset by Concentric. The temperature range accepted by the controller is set by the sensor specifications. See Page 19 for sensor input requirements. The controller compares the actual value of the temperature inputs with programmed setpoints (specified by the OEM) to generate a proportional current output to the valve. The valve proportionally controls the pressure at the fan motor and therefore mo-tor speed. Proportional control occurs when the temperature sensor inputs fall within the minimum and maxi-mum temperature setpoints of the controller. Turning on the digital input causes the controller to ramp for a 2.5 second period from maximum current output (idle fan speed) to the necessary current output required to achieve set point fan speed. The fan cools by operating between a starting fan speed and a maximum fan speed, which are determined by the cooling system layout. These requirements should be specified on Page 19 (sensor inputs). Calibrating the controller potentiometer and tuning the pressure setting of the valve sets both speeds. Digital inputs can also be set to actuate full fan speed mode when required for engine retarding or other applications where high heat loads are generated. Idling speed is the mode of operation of the fan when it is not required to cool. The controller and proportional valve are designed to provide a maximum fan speed in the cooling circuit in case of a power loss. Overcurrent protection is provided. Once an overcurrent situation is detected, the controller output turns off for several cycles of 10 msec. until the situation corrects itself. If the overcurrent situation continues, the controller will eventually shut off completely to allow the fan to run at maximum speed and cool the system. The fan controller has two modes of operation; calibration and run. A DIP switch sets the mode of operation. In calibration mode, the OEM powers the controller and adjusts the calibration potentiometer until the fan is running at the desired rpm corresponding to the minimum temperature setpoint programmed in the controller (the starting speed). This is the speed to which the fan should ramp when any of the input temperatures go above the minimum temperature setpoint or the digital input turns on. Once the unit is calibrated, the OEM selects run mode. In run mode, changing the setting of the potentiometer will have no effect on the output. NOTE: Once specified, these can be factory preset by Concentric. The controller is packaged for the rugged mobile environment. OEM specific packaging and connection styles are available. For higher volume applications, contact Concentric. Controls Capability (cont.) quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

18 Controls Capability (cont.) (1) Calibration current output is set by the OEM when calibrating the controller. NOTE: Once specified, these can be factory preset by Concentric. (2) The factory setting for the ramp time for the digital inputs is 2.5 seconds. The factory setting for the ramp time for the temperature sensor inputs is 1 second. If other ramp times are required, specify the ramp times when ordering the controller on Page 19. Inputs to Controller Controller Output (Run Mode) Valve Output Fan Speed Temperature Sensor (< min. temp. setpoint) Maximum current output Fully open Idling speed Temperature Sensor (> min. temp. setpoint) Current ramps over 1 second to the calibration current output (setting. Proportional control occurs when the temp. sensor inputs fall within the min. and max. temp. setpoints of the controller. The controller prioritizes temperature sensor inputs over the digital inputs (priorities are factory set to suit application). Pressure setting established during calibration Starting fan speed (the starting point for proportional control of fan speed) The speed of the fan will vary linearly between the starting fan speed (set during calibration of the controller) and maximum fan s peed. Temperature Sensor (> max. temp. setpoint) 0 Amps Pressure setting when controller has 0 current output (Closed) Maximum fan speed Digital Input 1 ON Ramps (2) from maximum current output to calibration current output Pressure setting established during calibration Fan runs from idling speed to starting fan speed Digital Input 1 OFF Ramps to maximum current output (as long as min. temp. setpoint is not exceeded) Valve returns to fully open position Fan returns to idling speed from starting fan speed Power Loss or No Inputs to the Controller 0 Amps Pressure setting when controller has 0 current output (Closed) Maximum fan speed quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

19 Controls Capability (cont.) (1) The controller is programmed with minimum and maximum temperature setpoints. The current output (and resulting fan speed) will be proportional to the highest input temperature over this temperature range. The full temperature range of each sensor and the desired minimum and maximum setpoints must be specified. (2) Factory set per OEM specifications. (3) The controller will give priority to the input that requires the fan to operate at the higher speed. This priority is factory set and must be specified by the OEM. (1) Provide sensor data sheet with complete specifications. (2) Liquid temp. sensor for engine coolant, liquid temp. sensor for hyd. oil, air temp. sensor for charge air, etc. Technical Specifications Temperature Sensor Inputs Contact Concentric with OEM specific sensor input requirements. The controller ramps output over a factory set value. Specify ramp rates, if other than factory settings. See specification requirements in table below. MinimumTemperature Setpoint MaximumTemperature Setpoint Temperature Sensor Input 1 (1), Sensor Input 2 (1), and Sensor Input 3 (1) Available (2) Available (2) Digital Input 1 (3) and Digital Input 2 (3 ) Ramps output over a 2.5 second period. Specify, if other ramp time required. Specification Information Required Power supply voltage (12 or 24 VDC): Digital (on/off ) inputs (Active high is standard. Active low available for volume OEM applications): Digital 1 input required for ______________________________ Ramp time required: ________________ Priority 1 Digital 2 input required for ______________________________ Ramp time required: ________________ Priority 2 Analog inputs: Sensor 1 manufacturer & p/n (1): ____________________________________________________________________ Sensor 1 function (2): ______________________________________________________________________________ Sensor 1: Increasing or decreasing voltage as temperature increases: ______________________________________ Sensor 1: Linear response: Y / N If no, provide a temperature vs. voltage characteristic table. Sensor 1: Variable resistance type: Y / N If no, please contact Concentric for further details. Sensor 1: Min. setpoint: _____ Max. setpoint: _____ OR Temp. range to be controlled: _________________________ Sensor 2 manufacturer & p/n (1): _____________________________________________________________________ Sensor 2 function (2): ______________________________________________________________________________ Sensor 2: Increasing or decreasing voltage as temperature increases: ______________________________________ Sensor 2: Linear response: Y / N If no, provide a temperature vs. voltage characteristic table. Sensor 2: Variable resistance type: Y / N If no, please contact Concentric for further details. Sensor 2: Min. setpoint: _____ Max. setpoint: _____ OR Temp. range to be controlled: _________________________ Sensor 3 manufacturer & p/n (1): _____________________________________________________________________ Sensor 3 function (2): ______________________________________________________________________________ Sensor 3: Increasing or decreasing voltage as temperature increases: ______________________________________ Sensor 3: Linear response: Y / N If no, provide a temperature vs. voltage characteristic table. Sensor 3: Variable resistance type: Y / N If no, please contact Concentric for further details. Sensor 3: Min. setpoint: _____ Max. setpoint: _____ OR Temp. range to be controlled: _________________________ quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

20 Controls Capability (cont.) (5) Used to adjust the fan speed in calibration mode. A change in the potentiometer causes a corresponding change in the fan speed. Set the potentiometer at the speed to which the fan should ramp when the input temperature(s) goes above the minimum setpoint or the digital input is ON. NOTE: Connectors 1 & 2 are Deutsch p/n DT15-6P (male). Mating (female) connectors with and without wiring harnesses available upon request. General Specifications Operating Conditions -40 up to 120ºC (-40 up to 250ºF) Calibration Potentiometer(5) Turn clockwise to decrease the current output (increases fan speed). Factory setting is 50%. LED Indicators LED1 - Power OK LED2 - Digital Input 1 ON LED3 - Digital Input 2 ON DIP Switch Settings Sets System Calibration or Run Mode ON (Calibration Mode) OFF (Run Mode) Electrical Connections Two Deutsch 6-pin connectors (P/N: DT15-6P) Mating connectors with wire harnesses are available upon request. Enclosure Protection IP67 (encapsulated model) per IEC 529 Enclosure See detail below. quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Cast Iron Pumps Heavy Duty GC Series Pumps Displacements 1.06 to 11.65 cc GC Series High/Low Pumps High Pressure Displacements 1.06 to 4.22 cc Low Pressure Displacements 4.22 to 12.71 cc Maximum Pressure 276 bar Maximum Speed 4,000 rpm W-Series Pumps W100 Displacements 0.50 to 2.00 cc W300 Displacements 0.80 to 5.70 cc W600 Displacements 4 to 12 cc W900 Displacements 5 to 31 cc W1200 Displacements 25 to 33 cc W1500 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 500 to 4,000 rpm D Series Pumps Displacements 03.80 to 22.85 cc D Series High/Low Pumps High Pressure Displacements 7.62 cc Low Pressure Displacements 15.24 to 22.86 cc Maximum Pressure 207–276 bar Maximum Speed 3,600–4,000 rpm WK900 CALMA Pumps Displacements 5 to 27 cc Maximum Pressure 230 bar Maximum Speed 4,000 rpm F12 & F15 Ferra Series Pumps F12 Displacements 16 – 41 cc F15 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm Cast Iron Displacements 1.06 to 161 cc Speed Up to 10,000 rpm Aluminum Displacements 4 to 50 cc Speed Up to 4,000 rpm Flow Dividers Fluid Motors GC & D Series GC Displacements 1.58 to 8.47 cc D Displacements 3.8 to 13.32 cc Maximum Pressure 310 bar Maximum Input Flow Per Section 14 gpm (53 lpm) Aluminum Pumps Medium/Light Duty F20/F30 Pumps & F20-LS/F30-LS Load Sense Ferra Series Pumps Displacements 23 to 161 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm PUMPS & MOTORS

PUMP/MOTORS (DC/AC) DC Voltage Range 12 to 72 VDC AC Horsepower Range 0.367749 to 2.2065 kW Pump Displacements 0.65 to 28 cc Maximum Pressure 4276 bar HE “BOX” POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.80 to 6.36 cc Maximum Pressure 230 bar Reservoirs HB800 POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.60 to 1.5 cc Reservoirs 0.5 to 3.8 litres plastic Maximum Pressure 180 bar BIROTATIONAL POWER PACKS Voltage Range 12 to 24 VDC, 115 to 230 VAC Pump Displacements 0.80 to 2.11 cc Reservoirs 1.9 to 2.8 litres plastic, 3.8 to 7.6 litres steel HE1000 SERIES POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.24 to 2 cc Maximum Pressure 230 bar Reservoirs 0.5 to 3.8 litresplastic AC POWER PACKS GC-9500 SERIES Displacements 1.06 to 22.85 cc Maximum Pressure 207 bar Maximum Speed 3,600 rpm Reservoirs 19 to 76 litres steel HE2000 SERIES POWER PACKS Voltage Range 12 to 24 VDC, 115 to 230 VAC Pump Displacements 0.80 to 6.36 cc Maximum Pressure 230 bar Reservoirs 0.9 to 15 litres steel, 0.76 to 1.6 litresplastic 32.84 to 19 litres steel HE-Q (QUIET) POWER PACKS Voltage Range 24 VDC WQ300 Pump Displacements 1.2 to 5.7 cc Noise 42dB(A) Only Concentric offers this extensive range of products worldwide. POWER PACKS

Concentric AB-FAN DRIVE-US-2011-6 23 S P E C I A L P R O D U C T S HYDRAUL I CS Powershift Transmission Lube and Charge High-Speed Rotary Drive Systems Auxiliary Hydraulic Power Axle Cooling and Lube Systems Electrohydraulic Lifting Systems Supplemental Power Steering Systems Fan Drive With Integrated Brake Charge Function Concentric provides innovative custom solutions to the vehicle industry on a global basis We focus on the areas where we can create customer value. Our applications expertise enables us to take on customers most unique application challenges. The foundation for this expertise is an expert knowledge of hydraulic systems. The value we bring to our customers is our unique capability to integrate a variety of system components and controls, to provide multiple functions in one custom package. Our applications specialists seek to understand the overall goals for the vehicle, the vehicle subsystems and then the hydraulics system. This understanding enables them to respond with customized value engineered solutions. Concentric was the first to offer many of the solutions shown here. quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk
