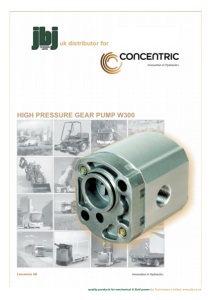

uk distributor for quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk HIGH PRESSURE GEAR PUMP W300
Concentric AB-W300 Pump-EU-2011-7 2 EFFICIENCIES FLANGE CODE 20, 22, 23 4 -6 7 THE POWER OF THEW300 B SERIES Concentric is one of the world’s leading manufacturers of hydraulic pumps. Our focus on important strategic markets such as trucks, construction equipment and materials handling has brought results: a series of high-performance hydraulic pumps. The W300 series builds on the versatile technical platform represented by the W series. W300 High Pressure Gear Pumps are optimized for demanding work, with harsh weather conditions, rugged operations and long service intervals. TheW300 series is a range of cost-efficient small pumps for all applications in which the customer’s demands for quality and accessibility are particularly high. quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-W300 Pump-EU-2011-7 3 W300 DESCRIPTION The W300 pumps come in single configuration and have a two piece modular design. All, mounting flange, and rear cover are manufactured of high strength aluminium alloy. For optimum strength, gears and shafts are precision machined as a one-piecepart. The 11-tooth gear geometry has been optimized for lownoise level and lowpressure pulsation. All shaft bearing surfaces are continually cooled and lubricated by a controlled flow of fresh oil. This permits operation across a wide speed range at very high loads. Extra large slide bearings help guarantee a long service life. A wide range of mounting flanges and port sizes are available to meet all international standards. General data Displacement V 0.8 ... 5.7cm3 Speed n 800 ... 6000 rpm Pressure ratedpressure pl up to230bar intermettent pressure pll up to 255 bar Operating temperatures t up to 90°C Average volumetric efficiency 97% The maximum values for n, pl and t for a given pump specification may be applied sim-ultaneously. Options • Rectangular flanges, through bolt model. • Tapered shaft with key, tang shaft. • Thread ports of flange ports. • Clockwise or anti-clockwise rotation. • Integrated valve features. Operating pressure range Inlet port: continuous, minimum -0,20 bar intermittent, minimum -0,35 bar maximum +2,00 bar Outlet port (See tables on pages 4-6) Product has been tested to500,000 cycles at pll. Pressure pll is permitted at maxi. 10 sec loaded following 4 sec minimum unloaded. Above represents performance wich can be expected from units incorporating flange flange port styles. Speed range Minimum speed for all pump sizes depends on the pump model in question and can be identified fromTables below onwards for respective models. Maximum speed for single pumps depends on the pumpmodel in question and canbe identified fromTables onwards for respectivemodels. Noise performancedataaccordingtoDIN45635. Typical levels for pump type W3B1-2,5 at 160 bar using mineral oil with viscosity of 40mm2/s and at temperature of 50° C at different speeds: 1500 min-1 2300min-1 3000min-1 52 dB(A) 56 dB(A) 57 dB(A) Hydraulic fluids. The use of HL-or HLP-hydraulic oil according to DIN 51 524 is recommended. The permissible viscosity for all W3B pumps ranges from 800 to 12 mm2/s. The permissible cold start viscosity is 2000 mm2/s. We recommend to contact Concentric before using fire resistant or bio-degradable fluids. Temperature range Amb. temperature, mini.-25°C; maxi. +80° C Fluid temperature, continuous operation, maxi. +80° C short termoperation, maxi. +90° C Please note Viscosities -when operating at above temperature limits-have to remain within the range specified under ”Hydraulic Fluids”. Fluid cleanliness Fluid cleanliness according to ISO 4406/1986 Code 18/14 or better is required in order to assure the pump’s high level of efficiency in the long term. Drive arrangement Flexible couplings are preferred for direct drives. Please contact Concentric for indirect drive requirements. Mounting position As required. Symbol Single pump. PERFORMANCE DATA = Type = Series = Design revision = # of sections = Seal material = Displacement per section 4 sec. at minimum continuous pressure intermittent pressure 10 sec. at minimum Time Pressure pI pII pII pI Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WP 03 B 1 B 008 R 20 MA 124 N = Rotation = Mounting flange = Drive shaft = Portings = Valve options 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-W300 Pump-EU-2011-7 4 Code Displ. Rated pressure Intermitt. Maxi. speed Mini. speed Dimensions Weight Pl Pll A B C (approx.) [bar] [bar] [min-1] [min-1] [mm] [mm] [mm] kg 008 - 0,8cc 230 255 6000 1200 68,1 32,6 60,1 0,70 012 - 1,2cc 230 255 6000 1100 69,8 33,4 61,8 0,72 016 - 1,6cc 230 255 6000 1100 71,5 34,2 63,5 0,74 020 - 2,0cc 230 255 6000 1000 73,2 35,1 65,2 0,77 025 - 2,5cc 230 255 5000 1000 75,3 35,9 67,3 0,80 032 - 3,2cc 230 255 5000 1000 78,2 37,6 70,2 0,83 038 - 3,8cc 210 230 4500 850 80,8 38,9 72,8 0,86 043 - 4,3cc 190 210 4500 850 82,9 40,0 74,9 0,89 048 - 4,8cc 170 187 4200 800 85,0 41,0 77,0 0,91 057 - 5,7cc 145 160 3800 800 98,8 42,9 80,8 0,96 FLANGE CODE 20 All shaft bearings are continually cooled and lubricated by a controlled flow of fresh oil. This enables operation across a wide speed range at very high loads. The largesized slide bearings support the pump’s long-life condition. A wide range of mounting flanges and port siezes are available to meet European and international standards. W300 pumps may also be supplied with threaded ports in the rear cover (Rear cover’s shape is prepared for this option). This option can simplyfy installation where space is limited. INLET OUTLET = Type WP - Pump = Series 03 - 300 = Design revision B - 2 nd release = # of sections 1 - Single = Seal material B - Buna = Displacement per section (See table below) Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WP 03 B 1 B 008 R 20 MA 124 N = Rotation R - Clockwise L - Counter clockwise = Mounting flange 20 = Drive shaft MA = Portings 124 - G3/8” + G3/8” BSPP 166 - M18 x 1,5 + M14 x 1,5 = Valve options N - None At CCW rotation inlet and outlet are reversed. 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-W300 Pump-EU-2011-7 5 FLANGE CODE 22 At CCW rotation inlet and outlet are reversed. INLET OUTLET Code Displ. Rated pressure Intermitt. Maxi. speed Mini. speed Dimensions Weight Pl Pll A B C (approx.) [bar] [bar] [min-1] [min-1] [mm] [mm] [mm] kg 008 - 0,8cc 230 255 6000 1200 68,1 32,6 60,1 0,70 012 - 1,2cc 230 255 6000 1100 69,8 33,4 61,8 0,72 016 - 1,6cc 230 255 6000 1100 71,5 34,2 63,5 0,74 020 - 2,0cc 230 255 6000 1000 73,2 35,1 65,2 0,77 025 - 2,5cc 230 255 5000 1000 75,3 35,9 67,3 0,80 032 - 3,2cc 230 255 5000 1000 78,2 37,6 70,2 0,83 038 - 3,8cc 210 230 4500 850 80,8 38,9 72,8 0,86 043 - 4,3cc 190 210 4500 850 82,9 40,0 74,9 0,89 048 - 4,8cc 170 187 4200 800 85,0 41,0 77,0 0,91 057 - 5,7cc 145 160 3800 800 98,8 42,9 80,8 0,96 = Type WP - Pump = Series 03 - 300 = Design revision B - 2 nd release = # of sections 1 - Single = Seal material B - Buna = Displacement per section (See table below) Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WP 03 B 1 B 008 R 22 NA 124 N = Rotation R - Clockwise L - Counter clockwise = Mounting flange 22 = Drive shaft NA = Portings 124 - G3/8” + G3/8” BSPP 166 - M18 x 1,5 + M14 x 1,5 = Valve options N - None 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-W300 Pump-EU-2011-7 6 FLANGE CODE 23 At CCW rotation inlet and outlet are reversed. INLET OUTLET Code Displ. Rated pressure Intermitt. Maxi. speed Mini. speed Dimensions Weight Pl Pll A B C (approx.) [bar] [bar] [min-1] [min-1] [mm] [mm] [mm] kg 008 - 0,8cc 230 255 6000 1200 68,1 32,6 60,1 0,68 012 - 1,2cc 230 255 6000 1100 69,8 33,4 61,8 0,70 016 - 1,6cc 230 255 6000 1100 71,5 34,2 63,5 0,72 020 - 2,0cc 230 255 6000 1000 73,2 35,1 65,2 0,75 025 - 2,5cc 230 255 5000 1000 75,3 35,9 67,3 0,78 032 - 3,2cc 230 255 5000 1000 78,2 37,6 70,2 0,81 038 - 3,8cc 210 230 4500 850 80,8 38,9 72,8 0,84 043 - 4,3cc 190 210 4500 850 82,9 40,0 74,9 0,87 048 - 4,8cc 170 187 4200 800 85,0 41,0 77,0 0,89 057 - 5,7cc 145 160 3800 800 98,8 42,9 80,8 0,94 = Type WP - Pump = Series 03 - 300 = Design revision B - 2 nd release = # of sections 1 - Single = Seal material B - Buna = Displacement per section (See table below) Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WP 03 B 1 B 008 R 23 QA 124 N = Rotation R - Clockwise L - Counter clockwise = Mounting flange 23 = Drive shaft QA = Portings 124 - G3/8” + G3/8” BSPP 166 - M18 x 1,5 + M14 x 1,5 = Valve options N - None 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-W300 Pump-EU-2011-7 7 EFFICIENCES, TOTAL , MECHANICAL, VOLUMETRIC 6000 600 1200 1800 2400 3000 3600 4200 4800 5400 40 100 46 52 58 64 70 76 82 88 94 SPEED (rpm) OVERALL EFFICIENCY (%) OVERALL EFFICIENCY W3B1-1.2-*-*-*-*-N-N AVERAGE ± 3% AT 42oC, 32 cSt. 40 100 46 52 58 64 70 76 82 88 94 OVERALL EFFICIENCY (%) 10 bar 50 bar 150 bar 230 bar 600 6000 1200 1800 2400 3000 3600 4200 4800 5400 40 100 46 52 58 64 70 76 82 88 94 SPEED (rpm) MECHANICAL EFFICIENCY (%) MECHANICAL EFFICIENCY W3B1-1.2-*-*-*-*-N-N AVERAGE ± 3% AT 42oC, 32 cSt. 40 100 46 52 58 64 70 76 82 88 94 MECHANICAL EFFICIENCY (%) 10 bar 50 bar 150 bar 230 bar 6000 600 1200 1800 2400 3000 3600 4200 4800 5400 40 100 46 52 58 64 70 76 82 88 94 SPEED (rpm) OVERALL EFFICIENCY (%) OVERALL EFFICIENCY W3B1-3.2-*-*-*-*-N-N AVERAGE ± 3% AT 42oC, 32 cSt. 40 100 46 52 58 64 70 76 82 88 94 OVERALL EFFICIENCY (%) 10 bar 50 bar 150 bar 230 bar 6000 600 1200 1800 2400 3000 3600 4200 4800 5400 90 100 91 92 93 94 95 96 97 98 99 SPEED (rpm) VOLUMETRIC EFFICIENCY (%) VOLUMETRIC EFFICIENCY W3B1-1.2-*-*-*-*-N-N AVERAGE ± 3% AT 42oC, 32 cSt. 90 100 91 92 93 94 95 96 97 98 99 VOLUMETRIC EFFICIENCY (%) 10 bar 50 bar 150 bar 230 bar 6000 600 1200 1800 2400 3000 3600 4200 4800 5400 90 100 91 92 93 94 95 96 97 98 99 SPEED (rpm) VOLUMETRIC EFFICIENCY (%) VOLUMETRIC EFFICIENCY W3B1-3.2-*-*-*-*-N-N AVERAGE ± 3% AT 42oC, 32 cSt. 90 100 91 92 93 94 95 96 97 98 99 VOLUMETRIC EFFICIENCY (%) 10 bar 50 bar 150 bar 230 bar 6000 600 1200 1800 2400 3000 3600 4200 4800 5400 40 100 46 52 58 64 70 76 82 88 94 SPEED (rpm ) OVERALL EFFICIENCY (%) OVERALL EFFICIENCY W3B1-4.8-*-*-*-*-N-N AVERAGE ± 3% AT 42oC, 32 cSt. 40 100 46 52 58 64 70 76 82 88 94 OVERALL EFFICIENCY (%) 10 bar 50 bar 150 bar 170 bar 6000 600 1200 1800 2400 3000 3600 4200 4800 5400 40 100 46 52 58 64 70 76 82 88 94 SPEED (rpm ) MECHANICAL EFFICIENCY (%) MECHANICAL EFFICIENCY W3B1-4.8-*-*-*-*-N-N AVERAGE ± 3% AT 42oC, 32 cSt. 40 100 46 52 58 64 70 76 82 88 94 MECHANICAL EFFICIENCY (%) 10 bar 50 bar 150 bar 170 bar 6000 600 1200 1800 2400 3000 3600 4200 4800 5400 90 100 91 92 93 94 95 96 97 98 99 SPEED (rpm ) VOLUMETRIC EFFICIENCY (%) VOLUMETRIC EFFICIENCY W3B1-4.8-*-*-*-*-N-N AVERAGE ± 3% AT 42oC, 32 cSt. 90 100 91 92 93 94 95 96 97 98 99 VOLUMETRIC EFFICIENCY (%) 10 bar 50 bar 150 bar 170 bar 6000 600 1200 1800 2400 3000 3600 4200 4800 5400 40 100 46 52 58 64 70 76 82 88 94 40 100 46 52 58 64 70 76 82 88 94 10 bar 50 bar 150 bar 230 bar MECHANICAL EFFICIENCY W3B1-3.2-*-*-*-*-N-N SPEED (rpm) MECHANICAL EFFICIENCY (%) AVERAGE ± 3% AT 42°C, 32 cSt. MECHANICAL EFFICIENCY (%) quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Cast Iron Pumps Heavy Duty GC Series Pumps Displacements 1.06 to 11.65 cc GC Series High/Low Pumps High Pressure Displacements 1.06 to 4.22 cc Low Pressure Displacements 4.22 to 12.71 cc Maximum Pressure 276 bar Maximum Speed 4,000 rpm W-Series Pumps W100 Displacements 0.50 to 2.00 cc W300 Displacements 0.80 to 5.70 cc W600 Displacements 4 to 12 cc W900 Displacements 5 to 31 cc W1200 Displacements 25 to 33 cc W1500 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 500 to 4,000 rpm D Series Pumps Displacements 03.80 to 22.85 cc D Series High/Low Pumps High Pressure Displacements 7.62 cc Low Pressure Displacements 15.24 to 22.86 cc Maximum Pressure 207–276 bar Maximum Speed 3,600–4,000 rpm WK900 CALMA Pumps Displacements 5 to 27 cc Maximum Pressure 230 bar Maximum Speed 4,000 rpm F12 & F15 Ferra Series Pumps F12 Displacements 16 – 41 cc F15 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm Cast Iron Displacements 1.06 to 161 cc Speed Up to 10,000 rpm Aluminum Displacements 4 to 50 cc Speed Up to 4,000 rpm Flow Dividers Fluid Motors GC & D Series GC Displacements 1.58 to 8.47 cc D Displacements 3.8 to 13.32 cc Maximum Pressure 310 bar Maximum Input Flow Per Section 14 gpm (53 lpm) Aluminum Pumps Medium/Light Duty F20/F30 Pumps & F20-LS/F30-LS Load Sense Ferra Series Pumps Displacements 23 to 161 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm PUMPS & MOTORS
PUMP/MOTORS (DC/AC) DC Voltage Range 12 to 72 VDC AC Horsepower Range 0.367749 to 2.2065 kW Pump Displacements 0.65 to 28 cc Maximum Pressure 4276 bar HE “BOX” POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.80 to 6.36 cc Maximum Pressure 230 bar Reservoirs HB800 POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.60 to 1.5 cc Reservoirs 0.5 to 3.8 litres plastic Maximum Pressure 180 bar BIROTATIONAL POWER PACKS Voltage Range 12 to 24 VDC, 115 to 230 VAC Pump Displacements 0.80 to 2.11 cc Reservoirs 1.9 to 2.8 litres plastic, 3.8 to 7.6 litres steel HE1000 SERIES POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.24 to 2 cc Maximum Pressure 230 bar Reservoirs 0.5 to 3.8 litresplastic AC POWER PACKS GC-9500 SERIES Displacements 1.06 to 22.85 cc Maximum Pressure 207 bar Maximum Speed 3,600 rpm Reservoirs 19 to 76 litres steel HE2000 SERIES POWER PACKS Voltage Range 12 to 24 VDC, 115 to 230 VAC Pump Displacements 0.80 to 6.36 cc Maximum Pressure 230 bar Reservoirs 0.9 to 15 litres steel, 0.76 to 1.6 litresplastic 32.84 to 19 litres steel HE-Q (QUIET) POWER PACKS Voltage Range 24 VDC WQ300 Pump Displacements 1.2 to 5.7 cc Noise 42dB(A) Only Concentric offers this extensive range of products worldwide. POWER PACKS
Getting the most out of your machinery often depends on close integration between all components. An organisation that manufactures and integrates all the diverse components of a drivetrain provides the experience to help you select the best component combination for your application. jbj Techniques’ in-house design team and manufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery. The following examples are a simplistic view of how jbj Techniques assists customers. Hydraulic Adaptors Designed primarily to allow the close coupling of hydraulic pumps to a variety of prime movers, such as diesel / petrol engines, electric, air or hydraulic motors, they can also be used in the connection from prime mover to alternative driven parts i.e. gear boxes, generators, water or vacuum pumps etc. An additional range of engine front PTO adaptors, which provide additional connection between the engine pulley and the driven part are also available. The kit comprises of a and flexible bellhousing drive that are fully machined to suit the coupling driving and driven components. These can be to suit either shaft to shaft, flange (flywheel) to shaft or even flange to flange connections. Getting the most out of your equipment will demand close integration between all components. In specifying jbj Techniques as your preferred supplier, you will have selected a company with the experience to specify, manufacture and integrate all of the diverse components that will ensure the best component combination for your application. jbj's in house design team and manufacturing facility provide tailored solutions for your applications at competitive pricing and on-time deliveries. Pump shaft alignment is key to preventing unnecessary wear and damage to the pump shaft seal and bearing. Improper alignment may lead to premature pump failure. Also to be considered are unwanted torsional resonant frequencies in the system which can quickly cause damage to components in the drivetrain and reduce system life and performance. Improper pump installation can lead to premature failure, increased maintenance costs and reduced production levels of final product. jbj Techniques can advise on the correct installation of into Industrial / hydraulic pumps mobile / marine / machine tool / agricultural / offshore industries and can specify complete driveline systems from their extensive range of components which are available from stock or manufactured to order, albeit simple or complex, standard or bespoke. Electric Motor – Hydraulic Pump Adaptors (safe area) jbj Techniques Limited offer the most comprehensive range of in Europe. bellhousings Designed to connect electric motors with frame size IEC D56 - D400 (0.06kW – 750kW) and can be compatible with electric motor 'B5' or 'B14' flange configurations. Accompanying the metric frame units above is a complete range of mountings to suit Nema and imperial frame motors with 'C' face or 'D' flange fitments. With fully machined , torsionally flexible couplings or available, jbj ensure torsionally rigid couplings the most suitable combination is selected for the application in hand. As an example spider couplings are available in various materials including aluminium, grey cast iron, nodular iron, steel and stainless steels and can be finish machined with parallel, taper or splined bores to DIN, SAE, ANSI or ISO standards. Bellhousings can be manufactured in aluminium or cast iron material as standard, however, units can be produced in a variety of exotic materials on request. The aluminium product range is produced in either monoblock or composite formats giving great flexibility in design and allows for early delivery time, often with same or next day delivery possibilities. For applications where low noise levels are a quality products for mechanical & fluid power #DriveLineHarmony www.jbj.co.uk an excellence in engineering
ensuring a continuing high quality service in which customers can have complete confidence. “ “ requirement then a complete range of antivibration and noise reduction components add to the range. Electric motor – Hydraulic Pump Adaptors (hazardous area) Designed to meet the exacting safety standards of the offshore and chemical process industries, jbj Techniques produce certificated to adaptor kits Directive 2014/34/EU II2GD-IM2-TX -50 C< Service Temp < +105 C. Harmonised standards BS EN 1127:1, BS EN 13463:1, BS EN13463:5, BS EN 50303, BS EN 1834-1,BS EN 1834-3. Generally manufactured in Cast or Nodular iron, bellhousings can be produced in steel, stainless steel or alternative exotic materials on customer request. Couplings supplied for these applications are the jbj Techniques 'JXL' pin and bush range which provide an anti-static and flameproof drive which meet zone 1 area requirements, conforming to all of the above standards. Also available are spider and gear couplings which are certified to zone 2 standards. (Contact jbj Techniques for details). An important development of equipment for use within hazardous areas is the wet mount series of bellhousings. Commissioned to research and develop a product that would control the high temperature generated by a piston pump shaft seal when working within cycling applications. A little considered issue is the frictional heat generated at the shaft seal when the application requires the pump to cycle between different pressures causing the seal temperature to increase. This process will often take the seal temperature out and above the levels required by the relevant ATEX standards requirement. This specially designed assembly allows a pumped cooling flow to be passed over the seal face and through an auxiliary cooler, this in turn reduces the seal face temperature which can be maintained at an acceptable level. With a vast array of components to select from, jbj are well placed to provide all required components to support the required cooling system. Diesel Engine – Hydraulic Pump Adaptors A complete range of bellhousing and couplings exist for the connection of a diesel engine flywheel to a specified driven component, be it an oil hydraulic pump, water pump, generator or similar device. With the bellhousing available in various materials to suit all application areas. With a standard range to connect Diesel engines with SAE dimensions from SAE '6' to SAE '0' jbj are well placed to satisfy the majority of customer requirements. Couplings to complete the assembly are available in either torsionally flexible or torsionally rigid design ad can be supplied to suit SAE flywheel dimensions from SAE 6.5” to SAE 18”. For hydraulic pumps to be mounted to engines that do not conform to SAE dimensions, we offer a full range of assembly parts, some of which (but not all) are shown here » for diesel engines All bellhousings within this range can be finished machined to accept any, piston, vane or gear pump interfaces requested by customer. As with the electric motor range of product jbj offer complete solutions for ATEX environments, using our well proven 'JXL' coupling range which has standard design to connect to the engine flywheel. Directive 2014/34/EU II2GD-IM2-TX -50°C ≤ Service Temp ≤ +105°C. Harmonised Standards: BS EN 1127:1 BS EN 13463:1 BS EN 13463:5 BS EN 50303. Petrol Engine – Hydraulic Pump Adaptors Petrol engine adaptors have been developed for use with industrial petrol engines. Design exists to suit Honda, Briggs and Stratton, Kawasaki, Kubota, Hatz, Mag, Robin, Suzuki, Winsconsin, to name but a few, all adaptors can be finished to accept most hydraulic pumps. Adaptors to suit engine crankshaft drives and for vertical mounting are available on request. #DriveLineHarmony www.jbj.co.ukl to Large Combinations Small Individual Components
to Large Combinations from Small Individual Components ensuring a continuing high quality service in which customers can have complete confidence. “ “ # Driveline jbj Techniques is a specialist supplier of high-quality products for the mechanical power transmission and fluid power sectors. The company offers a high level of in-house expertise plus a huge selection of products to meet a very broad range of customer applications. From specification, through technical advice and manufacture to after-sales support, jbj Techniques provides a comprehensive and valued service to the power transmission and hydraulics industries. The company fields a UK-wide team of technical sales engineers to ensure that the business is close to its customers, and it enjoys excellent associations with European manufacturers, acting as sole UK distributor in many cases. jbj’s team is recognised for its expertise in the selection and configuration of hydraulic and mechanical transmission systems. Able to draw on an that extensive product range provides the building blocks for bespoke systems both large and small, the in-house design team offers a complete service, ranging from an assessment of customer requirements to full technical backup, including product specification, CAD based system design, system build and certification. Moreover customers can take advantage of jbj’s own machine-shop facilities and skilled engineers guarantee to quality and control costs. jbj Techniques provides one of the widest ranges of couplings available within the UK; mechanical power transmission couplings for a vast range of applications. Ranging from miniature couplings, all steel gear couplings, flexible spider couplings, shaft couplings, torque limiting couplings, disc and grid type couplings, ATEX compliant and shaft locking devices. Magnetic couplings for power transmission between hermetically sealed areas. However as extensive as the selection is, couplings make up a fraction of jbj’s portfolio. As power transmission specialists the company stock and provide gearboxes, clutches, pumps, hydraulic motors, flow meters, fluid power accessories including: cooling & heat exchange products, reservoirs, pipe flanges, seals and level indicators, as well as a variety of bellhousings and engine adaptors, to name just a few of the product categories. jbj Techniques Limited is proud of it’s relationship and reputation with customers and suppliers. The core client base is stable and loyal, which is testament to the quality of service provided by the company. A similar relationship exists with suppliers, ensuring a continuing high quality service in which customers can have complete confidence. Dampers Engine Adaptor Kits Hydraulic Adaptors Torque Limiting Couplings Tyre Couplings Anti-static/Flameproof Couplings Torsionally Rigid Couplings Torsionally Flexible Couplings Bellhousings Permanent Magnetic Couplings Torsional Couplings
ne Harmony comprehensive range of components www.jbj.co.uk an excellence in engineering 01737 767493 info@jbj.co.uk www.jbj.co.uk - registered in England No: 1185469 - jbj Techniques Limited is ISO certificated, committed to international coordination & unification of industrial standards. A range of products ATEX certificated to directive 94/9/E requirements Screw Pumps Pneumatic Motors & Starters Gear Pumps/Motors Axial & Radial Piston Motors Vane Pumps LSHT Motors/Geared Motors Splitter Gearboxes Planetary Gearboxes BDS Clutches BD Clutches & Gearboxes Oil Bath Clutches Flow Dividers Tanks/Accessories Fluid Level Indicators Flanges Mini Power Packs Coolers Pressure Intensifiers You Tube
uk distributor for quality products for mechanical & fluid power jbj Techniques Limited www.jbj.co.uk 28 Trowers Way, Holmethorpe Industrial Estate Redhill, Surrey RH1 2LW UNITED KINGDOM tel: 01737 767493 fax: 01737 772041 email: info@jbj.co.uk Concentric will not accept responsibility for any catalogue errors and reserves the right to modify its products without prior notice. This also applies to products already ordered, provided that such modifications can be made without affecting technical specifications. All trademarks in this material are properties of their respective owners. Concentric is an innovator in flow control and fluid power, supplying proprietary systems and components for trucks, buses and industrial vehicles, worldwide. With 1,156 employees and yearly sales exceeding 1,977 million Swedish Kronor, Concentric AB is listed on the Stockholm Stock Exchange (www.concentricAB.com).
