Tanks &
Accessories
|
|
|
|
|
|
Fluid
Reservoirs |
| |
Die
cast aluminium reservoirs with capacities from 5 to 130 litres.
Lids in flat or drip tray format manufactured in steel or aluminium.
Modular lid assembly for 13 and 30 litre reservoirs reduce labour
requirements to a minimum. |
 Characteristics
• Al-Reservoirs NG3.5 – NG130.
• Made of aluminium - high thermal conductivity.
• Easy mounting and simple handling.
• Standard-Al-Tanks are stackable.
• No additional painting required.
• Mineral-oil resistant oil drip-tray gaskets are available.
• Oil drip-tray gasket NG30, 44, 70, 130.
• A large number of accessories available.
• Cleaning covers, oil level gauges, filler and breather
filler.
• Screw-in heating rods for hydraulic oil.
• Plunger heater.
• Customised design possible. |
|

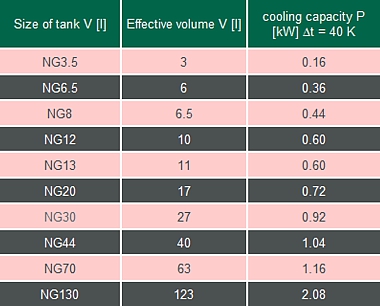

Size
of tank V [l] |
Effective
volume V [l] |
cooling
capacity P [kW] Dt = 40 K |
|
NG3.5 |
3 |
0.16 |
|
NG6.5 |
6 |
0.36 |
|
NG8 |
6.5 |
0.44 |
|
NG12 |
10 |
0.60 |
|
NG13 |
11 |
0.60 |
|
NG20 |
17 |
0.72 |
|
NG30 |
27 |
0.92 |
|
NG44 |
40 |
1.04 |
|
NG70 |
63 |
1.16 |
|
NG130 |
123 |
2.08 |
|
|
|
|
|
Hydraulic tanks
from jbj Techniques Limited are made of high quality cast aluminium.
They offer twice the heat dissipation as steel, and do not have
to be painted or have the concerns of corrosion that are often
associated with steel tanks.
More details
in pdf > here < (3.5mb download)
|
 |
|
