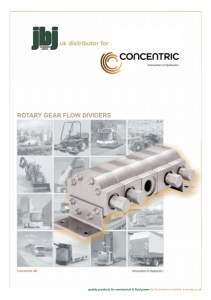

uk distributor for quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk ROTARY GEAR FLOW DIVIDERS

2 GC and D Series Rotary Gear Flow Dividers Intensifier - Combiner (European and U.S. Versions) Field-proven Concentric Hydraulic Systems’ Rotary Gear Flow Dividers are providing efficient, reliable service for a wide variety of applications in agricultural, materials handling, and construction equipment. These hydraulic flow dividers provide many useful functions from a single pump source: • Synchronized operation of multiple cylinders or fluid motors. • Proportional division of pump output among several circuits. • Intensified pressure when pressure higher than pump capacity is needed. WHY ROTARY GEAR FLOW DIVIDERS INSTEAD OF SPOOL TYPE DIVIDERS? Connected within the hydraulic circuit, rotary gear flow dividers operate automatically and only when needed. They require no maintenance. In a rotary gear divider, horsepower-in is equal to horsepower-out with very small efficiency losses. Consequently, it does not generate heat. Since the efficiency of the unit is a function of the pressure drop across the section, efficiencies approaching 98 percent are not uncommon. This enhances the overall system effectiveness. Spool type dividers require a significant pressure drop just to operate. Heat is designed in when spool type dividers are incorporated in an application. Much care has to be taken to accommodate the inherent inefficiencies of spool type dividers when sizing them for an application. Rotary gear flow dividers are also more tolerant of contamination and more rugged than spool type flow dividers. Spool type dividers can be accurate and exhibit little internal leakage but their cost is generally as much as 25% greater than comparable rotary gear dividers. DIFFERENTIAL RELIEF VALVES Our modular design allows us to add differential relief valves in each section of our flow dividers. These valves are not system relief valves. They are commonly used in applications where cylinders must be synchronized. They also serve to protect the flow divider against excessive differential pressure in the divider which could be caused by actuators becoming stalled or restricted. APPLICATION OF A ROTARY GEAR FLOW DIVIDER IN A CYLINDER CIRCUIT Rotary Gear Flow Dividers are designed to synchronize hydraulic cylinders (bring them to equal stroke length) in one direction only. This needs to be in a direction where the cylinders bottom out (go to the end of their stroke). The synchronizing is accomplished because excess fluid is bled off over the flow divider’s internal relief valves to feed the cylinder that is late getting to the end of it’s stroke. Reversing the direction of the cylinders, the Rotary Gear Flow Divider will act as a combiner with the same efficiency as a divider. Please note that a combiner doesn’t regulate cylinder speed, so a flow control is required to limit maximum flow. ROTARY GEAR FLOW DIVIDER USED AS AN INTENSIFIER Press and clamping circuits that require high flow at low pressure and low flow at high pressure are good applications for Rotary Gear Flow Dividers to intensify pressure. High flow from the outputs of the divider are combined until high pressure is required, then one or more of the divider outputs are dumped to tank giving high pressure in the intensified circuit. Caution is required so that the pressure does not exceed the rating of the flow divider. WHAT’S NEW AND INNOVATIVE ABOUT CONCENTRIC ROTARY GEAR FLOW DIVIDERS? We have earned a reputation over the last 80 years as innovators and systems specialists. We go beyond the basic requirements for hydraulic components to analyze the total system goals. In doing this, many times we find that we can help solve a customer’s system problem by doing something different to our product. The following are examples of how we have done this with flow dividers: SOLENOID ACTUATED 2-WAY VALVES FOR FLUID MOTOR DRIVE APPLICATIONS This feature provides operator selection between a positive traction drive or differential drive on turf care vehicles, small utility vehicles and various mobile lift devices. This feature is available in 2, 3 or 4 section dividers. ADJUSTABLE NEEDLE VALVE BETWEEN SECTIONS to allow only the set amount of flow providing the desired differential effect for drive motors. It can also be adjusted for varying tire ratios. WHY CONCENTRIC VS. OTHER ROTARY GEAR FLOW DIVIDERS? Concentric GC series flow dividers are of cast iron construction with 1/2” diameter shaft and needle bearings for high pressure operation. The gear bores are held to extremely close tolerances to provide maximum efficiency. They are lighter weight than many competitors because no interface plates are required between sections. This feature also insures better shaft alignment and fewer leakage paths. Seal plates between each section provide additional insurance against leakage. The modular design easily accommodates multiple gear width combinations and multiple porting options. Concentric D series flow dividers incorporate the above features but substitute a 5/8” diameter shaft and needle bearings. The D series also substitutes o-ring seals between each section for enhanced sealing. INSIDE THIS CATALOG ... This catalog combines both GC and D series flow divider information, including European versions. We have included performance and dimensional information as well. Please review the information provided to get a general understanding of what Concentric can offer your company. To answer your specific needs, please contact us. We have an excellent track record for meeting unique hydraulic system challenges. Pictures on front cover are used with the kind permission of eg: Atlet, BT, Huddig, Scania, Toro and Volvo Construction Equipment. quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

3 GC Series Rotary Gear Flow Dividers Cont. Diff. Pressure Between Inlet/Outlet PSI BAR 1800 124 1600 110 1300 90 1200 83 Maxium Outlet Pressure Any Section PSI BAR 3500 241 NOTE: Flows listed above are per section. For European Style GC Flow Dividers, all inlet and outlet ports are 1/2-14 BSPP. * Stock units available in two and four section versions, see page 9. MAXIMUM inlet pressure 3000 psi (207 bar) • MAXIMUM outlet pressure 3500 psi (241 bar). For 3 section flow dividers or flow dividers with unequal sections, contact the factory. Recommended operating range 2000 rpm to 3500 rpm. * * * * Order Code 06 08 12 16 20 24 28 32 Minimum Maximum Flow/Sec Flow/Sec GPM L/M GPM L/M 0.8 3.0 1.7 6.4 1.2 4.5 2.5 9.5 1.7 6.4 4.5 13.2 2.5 9.5 5.0 18.9 3.0 11.4 6.0 22.7 3.5 13.2 7.0 26.5 4.0 15.1 8.0 30.3 4.5 17.0 9.0 34.1 SAE Ports Inlet Outlet 9/16-18 9/16-18 3/4-16 3/4-16 3/4-16 9/16-18 7/8-14 7/8-14 7/8-14 7/8-14 7/8-14 7/8-14 7/8-14 7/8-14 7/8-14 7/8-14 Displacement In.3 Cm.3 .097 1.59 .129 2.12 .194 3.18 .258 4.24 .323 5.30 .388 6.36 .453 7.42 .517 8.48 Gear Face Width 3/16 1/4 3/8 1/2 5/8 3/4 7/8 1 The curve on the left and the chart above can be useful in selecting the proper size flow divider sections. The curve shows speed vs. flow per section. For equal sized sections: Assume four section dividers with a total flow of 12 GPM (45.4 L/M) in and 3 GPM (11.4 L/M) per section out. From the chart, an order code 12 or 20 would be suitable for this flow. However, the nearer the mid-range, the better the efficiency. From the curve, order code 16 crosses the 3 GPM (11.4 L/M) line at 2750 RPM. The best selection is the order code 16 gear section. For proportional flow, the curve is used as follows: Assume a four section divider with an input flow of 19 GPM (71.9 L/M) and an outlet flow of 7 GPM (26.5 L/M) , 5 GPM (18.9 L/M), 4 GPM (15.1 L/M), and 3 GPM (11.4 L/M). With a straight edge on the 3000 RPM line, proper flow for 7 GPM (26.5 L/M) is given with an order code 32 gear section, 5 GPM (18.9 L/M) with an order code 24 gear section, 4 GPM (15.1 L/M) with an order code 20 gear section and 3 GPM (11.4 L/M) with an order code 16 gear section. The chart above also shows the allowable differential pressures. The differential relief valve setting is determined by the maximum pressure needed by the circuit minus the inlet pressure without exceeding the allowable differential pressure. Either the continuous or intermittent differential pressures are used, depending on the circuit requirement. The differential relief valve is adjustable through a range of 500 - 1000 PSI (34.5 - 69 BAR). Our standard setting for the differential relief valves is 750 PSI (51.7 BAR). GPM 10 9 8 7 6 5 4 3 2 1 0 L/MIN 37.85 34.07 30.28 26.50 22.71 18.93 15.14 11.36 7.35 3.79 8.48 cc (.517 in. 3 ) 7.42 cc (.453 in. 3 ) 6.36 cc (.388 in. 3 ) 5.30 cc (.323 in. 3 ) 4.24 cc (.258 in. 3 ) 3.18 cc (.194 in. 3 ) 2.12 cc (.129 in. 3 ) 1.59 cc (.097 in. 3 ) Performance quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

4 The curve on the left and the chart above can be useful in selecting the proper size flow divider sections. The curve shows speed vs. flow per section. For equal sized sections: Assume two section dividers with a total flow of 16 GPM (60.6 L/M) in and 8 GPM (30.3 L/M) per section out. From the chart, an order code 16, 20, 24 or 28 would be suitable for this flow. However, the nearer the mid-range, the better the efficiency. From the curve, order code 20 crosses the 8 GPM (30.3 L/M) line at 3200 RPM. The best selection is the order code 20 gear section. For proportional flow, the curve is used as follows: Assume a three section divider with an input flow of 20 GPM (75.7 L/M) and an outlet flow of 10 GPM (37.9 L/M), 7 GPM (26.5 L/M), and 3 GPM (11.4 L/M). With a straight edge on the RPM line, note the 10 GPM (37.9 L/M) line at 2800 RPM gives the proper flow with an order code 28 gear section, an order code 20 gear section and an order code 08 gear section. The chart above also shows the allowable differential pressures. The differential relief valve setting is determined by the maximum pressure needed by the circuit minus the inlet pressure without exceeding the allowable differential pressure. Either the continuous or intermittent differential pressures are used, depending on the circuit requirement. The differential relief valve is adjustable through a range of 500 - 1000 PSI (34.5 - 69 BAR). Our standard setting for the differential relief valves is 750 PSI (51.7 BAR). D Series Rotary Gear Flow Dividers Continuous Differential Between Sections PSI BAR 3000 207 2750 190 2500 172 2000 138 1500 103 1200 83 Intermittent Differential Between Sections PSI BAR 3000 207 3000 207 3000 207 2750 190 2250 155 1750 121 NOTE: Flows listed above are per section. * Stock units available in two and four section versions, see page 9. MAXIMUM inlet pressure 3000 psi (207 bar) • MAXIMUM outlet pressure 4500 psi (310.3 bar). For 3 section flow dividers or flow dividers with unequal sections, contact the factory. Recommended operating range 2000 rpm to 4000 rpm. NOTE: Do not exceed 4500 rpm. * * * Order Code 08 12 16 20 24 28 Minimum Maximum Flow/Sec Flow/Sec GPM L/M GPM L/M 2 7.6 4 15.2 3 11.4 6 22.9 4 15.2 8 30.5 5 19.0 10 38.1 6 22.9 12 45.7 7 26.7 14 53.3 SAE Ports Inlet Outlet 7/8-14 9/16-18 1 5/16-12 3/4-16 1 5/16-12 3/4-16 1 5/16-12 7/8-14 1 5/16-12 7/8-14 1 5/16-12 1 1/16-12 Displacement In.3 Cm.3 .232 3.81 .349 5.71 .465 7.62 .581 9.52 .697 11.43 .813 13.33 Gear Face Width 1/4 3/8 1/2 5/8 3/4 7/8 Performance 13.33 cc (.813 in. 3 ) 11.43 cc (.697 in. 3 ) 9.52 cc (.581 in. 3 ) 7.62 cc (.465 in. 3 ) 5.71 cc (.349 in. 3 ) 3.81 cc (.232 in. 3 ) quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

5 2 Section GC Series Flow Divider U.S. & European Style NOTE: The only difference between the U.S. version and European version is the porting configuration. The U.S. version has SAE standard ports (refer to page 3) and the European version has 1/2-14 BSPP ports. (inches are in brackets) RELIEF VALVE 35.05 [1.38] 115.57 [4.55] INLET PORT 3.18 [.13] 191.77 [7.55] 70.10 [2.76] 57.91 [2.28] Hydraulic Schematic 56.39 [2.22] 47.75 [1.88] 38.10 [1.50] 38.86 [1.53] 95.76 [3.77] 12.70 [.50] (2) 76.20 [3.00] 10.16 [.40] (2) 37.34 [1.47] 38.10 [1.50] 37.34 [1.47] 38.86 [1.53] OUTLET PORTS (2) 55.63 [2.19] (2) 7.95 [.313] DIA THRU MOUNTING HOLES (4) here 44.45 mm [1.75 in] (1.5-4.2cc [.091-.256in3] each section) 57.15 mm [2.25 in] (5.3-8.4cc [.323-.512in3] each section) 83.31 mm [3.28 in] (1.5-4.2cc [.091-.256in3] each section) 96.01 mm [3.78 in] (5.3-8.4cc [.323-.512in3] each section) 166.37 mm [6.55 in] (1.5-4.2cc [.091-.256in3] each section) 191.77 mm [7.55 in] (5.3-8.4cc [.323-.512in3] each section) 191.77 mm [7.55 in] (1.5-4.2cc [.091-.256in3] each section) 217.17 mm [8.55 in] (5.3-8.4cc [.323-.512in3] each section) quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

6 4 Section GC Series Flow Divider U.S. & European Style NOTE: The only difference between the U.S. version and European version is the porting configuration. The U.S. version has SAE standard ports (refer to page 3) and the European version has 1/2-14 BSPP ports. (inches are in brackets) Hydraulic Schematic 35.05 [1.38] 2X 3.3 [.13] 285.24 [11.23] INLET PORT 70.10 [2.76] 104.65 [4.12] 209.04 [8.23] 71.88 [2.83] 47.75 [1.88] RELIEF VALVE(S) 45.21 [1.78] (2) 82.30 [3.24] 142.75 [5.62] 12.7 [.50] (2) 40.39 [1.59] 40.39 [1.59] 82.30 [3.24] OUTLET PORTS 43.69 [1.72] 43.69 [1.72] 38.10 [1.50] 10.16 [.40] (2) 7.95 [.313] DIA. THRU MOUNTING HOLES (4) 55.63 [2.19] (2) 76.20 [3.00] quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

7 2 Section D Series Flow Divider (inches in brackets) Hydraulic Schematic 116.08 [4.57] 2X 38.1 [1.50] 4X R 7.11 [.28] 2X 6.35 [.25] 2X 22.35 [.88] 150.88 [5.94] 23.11 [.91] INLET PORT 4X 115.57 [4.55] 2X OUTLET PORTS 250.19 [9.85] 145.03 [5.71] 28.96 [1.14] 218.44 [8.60] 103.63 [4.08] 45.97 [1.81] 91.94 [3.62] 54.1 [2.13] 107.95 [4.25] 8X SHEAR PIN 2230032 54.10 [2.13] quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

8 4 Section D Series Flow Divider (inches in brackets) 8X SHEAR PIN 2230032 54.10 [2.13] 54.10 [2.13] 45.97 [1.81] 103.63 [4.08] Hydraulic Schematic 2X 13.21 [0.52] ORIFICE/2420234 203.96 201.93 [8.03] [7.95] 86.87 [3.42] 38.10 [1.50] 2X 2X 22.35 [.88] 2X 6.35 [.25] 4X R 7.11 [.28] 209.80 207.77 [8.26] [8.18] 4X OUTLET PORTS 368.30 363.73 [14.50] [14.32] 262.13 259.59 [10.32] [10.22] 28.96 [1.14] 23.11 [.91] 81.03 [3.19] INLET PORT 267.97 265.43 [10.55] [10.45] 4X 115.57 [4.55] 145.03 [5.71] 91.95 [3.62] 107.95 [4.25] quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

9 Stock Concentric Flow Dividers Stock P/N 1300315 1300322 1300323 1300324 1300352 1300353 Sections 2 2 4 4 2 4 Inlet 1 5/16-12 1 5/16-12 1 5/16-12 1 5/16-12 1 5/16-12 1 5/16-12 Ports (SAE) Outlet 7/8-14 3/4-16 7/8-14 3/4-16 1 1/16-12 1 1/16-12 Relief Valve Included Included Included Included Included Included Displacement in.3 Per Section .581 (9.5 cc) .348 (5.7 cc) .581 (9.5 cc) .348 (5.7 cc) .813 (13.3 cc) .813 (13.3 cc) Model Code X-Ref FD2-0-V20S7.5-20S7.5-0-B10 FD2-0-V12Q7.5-12Q7.5-0-B10 FD4-V20S7.5-20S7.5 -20S7.5-20S7.5-B10 FD4-V12Q7.512Q7.5-12Q7.5-12Q7.5-B10 FD2-0-V28T7.5-28T7.5-0-B10 FD4-V28T7.5-28T7.5 -28T7.5-28T7.5-B10 D Series Flow Dividers Sections 2 2 2 2 2 4 4 4 4 Inlet 3/4-16 3/4-16 7/8-14 7/8-14 7/8-14 3/4-16 7/8-14 7/8-14 7/8-14 Ports (SAE) Outlet 9/16-18 3/4-16 7/8-14 7/8-14 7/8-14 3/4-16 9/16-18 3/4-16 7/8-14 Relief Valve Included Included Included Included Included Included Included Included Included Displacement in.3 Per Section .097 .129 .258 .388 .517 .129 .258 .388 .517 Model Code X-Ref FG1110021 FG1220021 FG1440021 FG1770021 FG1990021 FG3222221 FG3444421 FG3777721 FG3999921 Stock P/N 1303574 1300634 1300635 1300636 1300637 1303139 1303140 1303142 1303143 GC Series (U.S. Version) Flow Dividers Sections 2 2 2 4 4 Inlet 1/2-14 1/2-14 1/2-14 1/2-14 1/2-14 Ports (BSPP) Outlet 1/2-14 1/2-14 1/2-14 1/2-14 1/2-14 Relief Valve Included Included Included Included Included Displacement cc Per Section 2.11 3.18 4.24 2.11 4.24 Model Code X-Ref FG1220023 FG1330023 FG1440023 FG3222223 FG3444423 Stock P/N 1303144 1303165 1303149 1303157 1303147 GC Series (European Version) Flow Dividers quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

10 HowTo Order Concentric GC Series Flow Dividers Concentric stocks a selection of GC Series two section and four section flow dividers, which include a built-in adjustable differential relief valve in each section. See page 9 for a list of stock available. If the GC Series flow divider required is not a stock item at Concentric, it may be ordered by following the ordering code show below. Non-stock options require a 100-piece minimum. EXAMPLE: FG1440021 Two section flow divider, .258 in.3/rev. gear first section, .258 in.3/rev. gear second section, no 3rd or 4th section, relief valve in each section, SAE ports. 4, Gear Size(s) (each section) 5, 0 None 6, 1 .097 in.3/rev. 7. 2 .129 in.3/rev. 3 .194 in.3/rev. 4 .258 in.3/rev. 5 .291 in.3/rev. 6 .323 in.3/rev. 7 .388 in.3/rev. 8 .453 in.3/rev. 9 .517 in.3/rev. 8. Relief Valve 1 None 2 One Each Section 9. Porting 1 SAE (Standard) 2 NPTF Determine the number of sections needed. Determine gear size of sections required: Fill in all blanks in model code below: 1 2 3 4 5 6 7 8 9 F G __ __ __ __ __ __ __ 1. Type F Flow Divider 2. Series G GC Series Flow Divider 3. Number of Sections 1 Two Sections 2 Three Sections 3 Four Sections HowTo Order Concentric GC Series Flow Dividers (European Version) Concentric stocks a selection of GC Series two section and four section flow dividers (European Version), which include a built-in adjustable differential relief valve in each section. See page 9 for a list of stock available. If the GC Series flow divider required is not a stock item at Concentric, it may be ordered by following the ordering code show below. Non-stock options require a 100-piece minimum. EXAMPLE: FG1220023 Two section flow divider, 2.11 cc/rev. gear first section, 2.11 cc/rev. gear second section, no 3rd or 4th section, relief valve in each section, BSPP ports. 4, Gear Size(s) (each section) 5, 0 None 6, 1 1.58 cc/rev. 7. 2 2.11 cc/rev. 3 3.18 cc/rev. 4 4.24 cc/rev. 5 4.76 cc/rev. 6 5.29 cc/rev. 7 6.36 cc/rev. 8 7.42 cc/rev. 9 8.47 cc/rev. 8. Relief Valve 1 None 2 One Each Section 9. Porting 3 BSPP Determine the number of sections needed. Determine gear size of sections required: Fill in all blanks in model code below: 1 2 3 4 5 6 7 8 9 F G __ __ __ __ __ __ __ 1. Type F Flow Divider 2. Series G GC Series Flow Divider 3. Number of Sections 1 Two Sections 2 Three Sections 3 Four Sections quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

11 HowTo Order Concentric D Series Flow Dividers Concentric stocks a selection of D Series two section and four section flow dividers, which include a built-in adjustable differential relief valve in each section. See page 9 for a list of stock available. If the D Series flow divider required is not a stock item at Concentric, it may be ordered by following the ordering code show below. Non-stock options require a 100-piece minimum. EXAMPLE: FD2-V28T7.5-28T7.528T7.5-28T7.5-B10 D Series Flow Divider, two section flow divider, #16 SAE 1-5/16” - 12 inlet port, .813 in.3/rev. (13.3 cc/rev.) Position A Section Displacement, #12 SAE 1-1/16” - 12 Position A Section Outlet Port, 750 PSI (51.7 BAR) Position A Section Relief Valve, .813 in.3/rev. (13.3 cc/rev.) Position B Section Displacement, #12 SAE 1-1/16” - 12 Position B Section Outlet Port, 750 PSI (51.7 BAR) Position B Section Relief Valve, .813 in.3/rev. (13.3 cc/rev.) Position C Section Displacement, #12 SAE 1-1/16” - 12 Position C Section Outlet Port, 750 PSI (51.7 BAR) Position C Section Relief Valve, .813 in.3/ rev. (13.3 cc/rev.) Position D Section Displacement, #12 SAE 1-1/16” - 12 Position D Section Outlet Port, 750 PSI (51.7 BAR) Position D Section Relief Valve, Standard Bracket, Design Series 10 (standard). 1. Paint Option P1 Standard Black P2 Grey 2. Model Series FD D Series Flow Divider 3. Number of Sections 2 Two Sections 3 Three Sections 4 Four Sections 4. Inlet Port S #10 SAE 7/8” - 14 (Displacement 08 only) T #12 SAE 1-1/16” - 12 V #16 SAE 1-5/16” - 12 (Except Displacement 08) 5. Position A Section Displacement Code 08 .232 in.3/rev. (3.8 cc/rev.) 12 .348 in.3/rev. (5.7 cc/rev.) 16 .465 in.3/rev. (7.6 cc/rev.) 20 .581 in.3/rev. (9.5 cc/rev.) 24 .697 in.3/rev. (11.4 cc/rev.) 28 .813 in.3/rev. (13.3 cc/rev.) 6. Position A Section Outlet Port H 9/16” - 18 SAE Q #8 SAE 3/4” - 16 S #10 SAE 7/8” - 14 (Displacement 08 only) T #12 SAE 1-1/16” - 12 V #16 SAE 1-5/16” - 12 (Except Displacement 08) 7. Position A Section Relief Valve Omit No Valve 15 1500 PSI (103.5 BAR) 7.5 750 PSI (51.7 BAR) 8. Position B Section Displacement Code 08 .232 in.3/rev. (3.8 cc/rev.) 12 .348 in.3/rev. (5.7 cc/rev.) 16 .465 in.3/rev. (7.6 cc/rev.) 20 .581 in.3/rev. (9.5 cc/rev.) 24 .697 in.3/rev. (11.4 cc/rev.) 28 .813 in.3/rev. (13.3 cc/rev.) 9. Position B Section Outlet Port H 9/16” - 18 SAE Q #8 SAE 3/4” - 16 S #10 SAE 7/8” - 14 (Displacement 08 only) T #12 SAE 1-1/16” - 12 V #16 SAE 1-5/16” - 12 (Except Displacement 08) 10. Position B Section Relief Valve Omit No Valve 15 1500 PSI (103.5 BAR) 7.5 750 PSI (51.7 BAR) 11. Position C Section Displacement Code 08 .232 in.3/rev. (3.8 cc/rev.) 12 .348 in.3/rev. (5.7 cc/rev.) 16 .465 in.3/rev. (7.6 cc/rev.) 20 .581 in.3/rev. (9.5 cc/rev.) 24 .697 in.3/rev. (11.4 cc/rev.) 28 .813 in.3/rev. (13.3 cc/rev.) 12. Position C Section Outlet Port H 9/16” - 18 SAE Q #8 SAE 3/4” - 16 S #10 SAE 7/8” - 14 (Displacement 08 only) T #12 SAE 1-1/16” - 12 V #16 SAE 1-5/16” - 12 (Except Displacement 08) 13. Position C Section Relief Valve Omit No Valve 15 1500 PSI (103.5 BAR) 7.5 750 PSI (51.7 BAR) 14. Position D Section Displacement Code 08 .232 in.3/rev. (3.8 cc/rev.) 12 .348 in.3/rev. (5.7 cc/rev.) 16 .465 in.3/rev. (7.6 cc/rev.) 20 .581 in.3/rev. (9.5 cc/rev.) 24 .697 in.3/rev. (11.4 cc/rev.) 28 .813 in.3/rev. (13.3 cc/rev.) 15. Position D Section Outlet Port H 9/16” - 18 SAE Q #8 SAE 3/4” - 16 S #10 SAE 7/8” - 14 (Displacement 08 only) T #12 SAE 1-1/16” - 12 V #16 SAE 1-5/16” - 12 (Except Displacement 08) 16. Position D Section Relief Valve Omit No Valve 15 1500 PSI (103.5 BAR) 7.5 750 PSI (51.7 BAR) 17. Bracket B Standard Bracket Omit No Bracket 18. Design Series 10 Standard quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics

Cast Iron Pumps Heavy Duty GC Series Pumps Displacements 1.06 to 11.65 cc GC Series High/Low Pumps High Pressure Displacements 1.06 to 4.22 cc Low Pressure Displacements 4.22 to 12.71 cc Maximum Pressure 276 bar Maximum Speed 4,000 rpm W-Series Pumps W100 Displacements 0.50 to 2.00 cc W300 Displacements 0.80 to 5.70 cc W600 Displacements 4 to 12 cc W900 Displacements 5 to 31 cc W1200 Displacements 25 to 33 cc W1500 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 500 to 4,000 rpm D Series Pumps Displacements 03.80 to 22.85 cc D Series High/Low Pumps High Pressure Displacements 7.62 cc Low Pressure Displacements 15.24 to 22.86 cc Maximum Pressure 207–276 bar Maximum Speed 3,600–4,000 rpm WK900 CALMA Pumps Displacements 5 to 27 cc Maximum Pressure 230 bar Maximum Speed 4,000 rpm F12 & F15 Ferra Series Pumps F12 Displacements 16 – 41 cc F15 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm Cast Iron Displacements 1.06 to 161 cc Speed Up to 10,000 rpm Aluminum Displacements 4 to 50 cc Speed Up to 4,000 rpm Flow Dividers Fluid Motors GC & D Series GC Displacements 1.58 to 8.47 cc D Displacements 3.8 to 13.32 cc Maximum Pressure 310 bar Maximum Input Flow Per Section 14 gpm (53 lpm) Aluminum Pumps Medium/Light Duty F20/F30 Pumps & F20-LS/F30-LS Load Sense Ferra Series Pumps Displacements 23 to 161 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm PUMPS & MOTORS

PUMP/MOTORS (DC/AC) DC Voltage Range 12 to 72 VDC AC Horsepower Range 0.367749 to 2.2065 kW Pump Displacements 0.65 to 28 cc Maximum Pressure 4276 bar HE “BOX” POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.80 to 6.36 cc Maximum Pressure 230 bar Reservoirs HB800 POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.60 to 1.5 cc Reservoirs 0.5 to 3.8 litres plastic Maximum Pressure 180 bar BIROTATIONAL POWER PACKS Voltage Range 12 to 24 VDC, 115 to 230 VAC Pump Displacements 0.80 to 2.11 cc Reservoirs 1.9 to 2.8 litres plastic, 3.8 to 7.6 litres steel HE1000 SERIES POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.24 to 2 cc Maximum Pressure 230 bar Reservoirs 0.5 to 3.8 litresplastic AC POWER PACKS GC-9500 SERIES Displacements 1.06 to 22.85 cc Maximum Pressure 207 bar Maximum Speed 3,600 rpm Reservoirs 19 to 76 litres steel HE2000 SERIES POWER PACKS Voltage Range 12 to 24 VDC, 115 to 230 VAC Pump Displacements 0.80 to 6.36 cc Maximum Pressure 230 bar Reservoirs 0.9 to 15 litres steel, 0.76 to 1.6 litresplastic 32.84 to 19 litres steel HE-Q (QUIET) POWER PACKS Voltage Range 24 VDC WQ300 Pump Displacements 1.2 to 5.7 cc Noise 42dB(A) Only Concentric offers this extensive range of products worldwide. POWER PACKS

Getting the most out of your machinery often depends on close integration between all components. An organisation that manufactures and integrates all the diverse components of a drivetrain provides the experience to help you select the best component combination for your application. jbj Techniques’ in-house design team and manufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery. The following examples are a simplistic view of how jbj Techniques assists customers. Hydraulic Adaptors Designed primarily to allow the close coupling of hydraulic pumps to a variety of prime movers, such as diesel / petrol engines, electric, air or hydraulic motors, they can also be used in the connection from prime mover to alternative driven parts i.e. gear boxes, generators, water or vacuum pumps etc. An additional range of engine front PTO adaptors, which provide additional connection between the engine pulley and the driven part are also available. The kit comprises of a and flexible bellhousing drive that are fully machined to suit the coupling driving and driven components. These can be to suit either shaft to shaft, flange (flywheel) to shaft or even flange to flange connections. Getting the most out of your equipment will demand close integration between all components. In specifying jbj Techniques as your preferred supplier, you will have selected a company with the experience to specify, manufacture and integrate all of the diverse components that will ensure the best component combination for your application. jbj's in house design team and manufacturing facility provide tailored solutions for your applications at competitive pricing and on-time deliveries. Pump shaft alignment is key to preventing unnecessary wear and damage to the pump shaft seal and bearing. Improper alignment may lead to premature pump failure. Also to be considered are unwanted torsional resonant frequencies in the system which can quickly cause damage to components in the drivetrain and reduce system life and performance. Improper pump installation can lead to premature failure, increased maintenance costs and reduced production levels of final product. jbj Techniques can advise on the correct installation of into Industrial / hydraulic pumps mobile / marine / machine tool / agricultural / offshore industries and can specify complete driveline systems from their extensive range of components which are available from stock or manufactured to order, albeit simple or complex, standard or bespoke. Electric Motor – Hydraulic Pump Adaptors (safe area) jbj Techniques Limited offer the most comprehensive range of in Europe. bellhousings Designed to connect electric motors with frame size IEC D56 - D400 (0.06kW – 750kW) and can be compatible with electric motor 'B5' or 'B14' flange configurations. Accompanying the metric frame units above is a complete range of mountings to suit Nema and imperial frame motors with 'C' face or 'D' flange fitments. With fully machined , torsionally flexible couplings or available, jbj ensure torsionally rigid couplings the most suitable combination is selected for the application in hand. As an example spider couplings are available in various materials including aluminium, grey cast iron, nodular iron, steel and stainless steels and can be finish machined with parallel, taper or splined bores to DIN, SAE, ANSI or ISO standards. Bellhousings can be manufactured in aluminium or cast iron material as standard, however, units can be produced in a variety of exotic materials on request. The aluminium product range is produced in either monoblock or composite formats giving great flexibility in design and allows for early delivery time, often with same or next day delivery possibilities. For applications where low noise levels are a quality products for mechanical & fluid power #DriveLineHarmony www.jbj.co.uk an excellence in engineering

ensuring a continuing high quality service in which customers can have complete confidence. “ “ requirement then a complete range of antivibration and noise reduction components add to the range. Electric motor – Hydraulic Pump Adaptors (hazardous area) Designed to meet the exacting safety standards of the offshore and chemical process industries, jbj Techniques produce certificated to adaptor kits Directive 2014/34/EU II2GD-IM2-TX -50 C< Service Temp < +105 C. Harmonised standards BS EN 1127:1, BS EN 13463:1, BS EN13463:5, BS EN 50303, BS EN 1834-1,BS EN 1834-3. Generally manufactured in Cast or Nodular iron, bellhousings can be produced in steel, stainless steel or alternative exotic materials on customer request. Couplings supplied for these applications are the jbj Techniques 'JXL' pin and bush range which provide an anti-static and flameproof drive which meet zone 1 area requirements, conforming to all of the above standards. Also available are spider and gear couplings which are certified to zone 2 standards. (Contact jbj Techniques for details). An important development of equipment for use within hazardous areas is the wet mount series of bellhousings. Commissioned to research and develop a product that would control the high temperature generated by a piston pump shaft seal when working within cycling applications. A little considered issue is the frictional heat generated at the shaft seal when the application requires the pump to cycle between different pressures causing the seal temperature to increase. This process will often take the seal temperature out and above the levels required by the relevant ATEX standards requirement. This specially designed assembly allows a pumped cooling flow to be passed over the seal face and through an auxiliary cooler, this in turn reduces the seal face temperature which can be maintained at an acceptable level. With a vast array of components to select from, jbj are well placed to provide all required components to support the required cooling system. Diesel Engine – Hydraulic Pump Adaptors A complete range of bellhousing and couplings exist for the connection of a diesel engine flywheel to a specified driven component, be it an oil hydraulic pump, water pump, generator or similar device. With the bellhousing available in various materials to suit all application areas. With a standard range to connect Diesel engines with SAE dimensions from SAE '6' to SAE '0' jbj are well placed to satisfy the majority of customer requirements. Couplings to complete the assembly are available in either torsionally flexible or torsionally rigid design ad can be supplied to suit SAE flywheel dimensions from SAE 6.5” to SAE 18”. For hydraulic pumps to be mounted to engines that do not conform to SAE dimensions, we offer a full range of assembly parts, some of which (but not all) are shown here » for diesel engines All bellhousings within this range can be finished machined to accept any, piston, vane or gear pump interfaces requested by customer. As with the electric motor range of product jbj offer complete solutions for ATEX environments, using our well proven 'JXL' coupling range which has standard design to connect to the engine flywheel. Directive 2014/34/EU II2GD-IM2-TX -50°C ≤ Service Temp ≤ +105°C. Harmonised Standards: BS EN 1127:1 BS EN 13463:1 BS EN 13463:5 BS EN 50303. Petrol Engine – Hydraulic Pump Adaptors Petrol engine adaptors have been developed for use with industrial petrol engines. Design exists to suit Honda, Briggs and Stratton, Kawasaki, Kubota, Hatz, Mag, Robin, Suzuki, Winsconsin, to name but a few, all adaptors can be finished to accept most hydraulic pumps. Adaptors to suit engine crankshaft drives and for vertical mounting are available on request. #DriveLineHarmony www.jbj.co.ukl to Large Combinations Small Individual Components

to Large Combinations from Small Individual Components ensuring a continuing high quality service in which customers can have complete confidence. “ “ # Driveline jbj Techniques is a specialist supplier of high-quality products for the mechanical power transmission and fluid power sectors. The company offers a high level of in-house expertise plus a huge selection of products to meet a very broad range of customer applications. From specification, through technical advice and manufacture to after-sales support, jbj Techniques provides a comprehensive and valued service to the power transmission and hydraulics industries. The company fields a UK-wide team of technical sales engineers to ensure that the business is close to its customers, and it enjoys excellent associations with European manufacturers, acting as sole UK distributor in many cases. jbj’s team is recognised for its expertise in the selection and configuration of hydraulic and mechanical transmission systems. Able to draw on an that extensive product range provides the building blocks for bespoke systems both large and small, the in-house design team offers a complete service, ranging from an assessment of customer requirements to full technical backup, including product specification, CAD based system design, system build and certification. Moreover customers can take advantage of jbj’s own machine-shop facilities and skilled engineers guarantee to quality and control costs. jbj Techniques provides one of the widest ranges of couplings available within the UK; mechanical power transmission couplings for a vast range of applications. Ranging from miniature couplings, all steel gear couplings, flexible spider couplings, shaft couplings, torque limiting couplings, disc and grid type couplings, ATEX compliant and shaft locking devices. Magnetic couplings for power transmission between hermetically sealed areas. However as extensive as the selection is, couplings make up a fraction of jbj’s portfolio. As power transmission specialists the company stock and provide gearboxes, clutches, pumps, hydraulic motors, flow meters, fluid power accessories including: cooling & heat exchange products, reservoirs, pipe flanges, seals and level indicators, as well as a variety of bellhousings and engine adaptors, to name just a few of the product categories. jbj Techniques Limited is proud of it’s relationship and reputation with customers and suppliers. The core client base is stable and loyal, which is testament to the quality of service provided by the company. A similar relationship exists with suppliers, ensuring a continuing high quality service in which customers can have complete confidence. Dampers Engine Adaptor Kits Hydraulic Adaptors Torque Limiting Couplings Tyre Couplings Anti-static/Flameproof Couplings Torsionally Rigid Couplings Torsionally Flexible Couplings Bellhousings Permanent Magnetic Couplings Torsional Couplings

ne Harmony comprehensive range of components www.jbj.co.uk an excellence in engineering 01737 767493 info@jbj.co.uk www.jbj.co.uk - registered in England No: 1185469 - jbj Techniques Limited is ISO certificated, committed to international coordination & unification of industrial standards. A range of products ATEX certificated to directive 94/9/E requirements Screw Pumps Pneumatic Motors & Starters Gear Pumps/Motors Axial & Radial Piston Motors Vane Pumps LSHT Motors/Geared Motors Splitter Gearboxes Planetary Gearboxes BDS Clutches BD Clutches & Gearboxes Oil Bath Clutches Flow Dividers Tanks/Accessories Fluid Level Indicators Flanges Mini Power Packs Coolers Pressure Intensifiers You Tube

uk distributor for quality products for mechanical & fluid power jbj Techniques Limited www.jbj.co.uk 28 Trowers Way, Holmethorpe Industrial Estate Redhill, Surrey RH1 2LW UNITED KINGDOM tel: 01737 767493 fax: 01737 772041 email: info@jbj.co.uk Concentric will not accept responsibility for any catalogue errors and reserves the right to modify its products without prior notice. This also applies to products already ordered, provided that such modifications can be made without affecting technical specifications. All trademarks in this material are properties of their respective owners. Concentric is an innovator in flow control and fluid power, supplying proprietary systems and components for trucks, buses and industrial vehicles, worldwide. With 1,156 employees and yearly sales exceeding 1,977 million Swedish Kronor, Concentric AB is listed on the Stockholm Stock Exchange (www.concentricAB.com).
