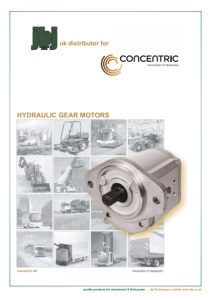

Concentric hydraulic gear motors available from jbj Techniques Limited

uk distributor for quality products for mechanical & fluid power . . . jbj Techniques Limited, www.jbj.co.uk HYDRAULIC GEAR MOTORS

Concentric offers one of the widest selections of gear pumps and hydraulic motors in the industry. All Concentric products are designed to provide solutions to our customers’ application challenges. Concentric hydraulic motors are applied on turf care equipment, agricultural equipment, industrial sweepers, paving machinery, winches and fan drives for a number of off-highway vehicles. They are specified by leading equipment manufacturers throughout the mobile equipment market. The 3 3 Concentric line of hydraulic motors covers a displacement range from 1cc to 161cc (.065 in to 9.82 in ). The various series include cast iron fixed clearance, aluminum body pressure balanced, and cast iron pressure balanced designs. Both unidirectional and bi-rotational configurations are available. Each series offers a large selection of shaft, flange and valve options tomeet your application requirements. Introduction to Concentric Hydraulic Motor Capacity 2 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

3 www.jbj.co.uk/concentric-ab-uk-distributor.html#range GC Series Hydraulic Gear Motors GC Series Hydraulic Motors are compact bidirectional external gear motors. These motors feature cast iron bodies and needle bearings for long life under severe conditions.Avariety of shaft, flange and valve options can be specified on GCSeries Motors.Aunique feature of thesemotors is their high speed performance. GC Series Dimensions www.jbj.co.uk/gear-motors.html

GC Series Hydraulic Gear Motor Shaft Options 4 www.jbj.co.uk/concentric-ab-uk-distributor.html#range Seal and Bearing Options www.jbj.co.uk/gear-motors.html

5 www.jbj.co.uk/concentric-ab-uk-distributor.html#range GC Series Hydraulic Gear Motor Radial Loads Shaft Seal Capabilities Maximum Radial Loads www.jbj.co.uk/gear-motors.html

GC Series Hydraulic Gear Motor Valve Options 6 www.jbj.co.uk/concentric-ab-uk-distributor.html#range Performance Curves @ 100SSU www.jbj.co.uk/gear-motors.html

7 www.jbj.co.uk/concentric-ab-uk-distributor.html#range GC Series Hydraulic Gear Motor Installation Information Ordering Code FLUIDS: Most premiumgrade petroleumbase fluids can be used with GCMotors. Optimumoperating viscosity is 16-63 cSt (80-288 SSU) at maximum rated speed. Minimumoperating viscosity is 10 cSt (59 SSU). Maximumoperating viscosity is 750 cSt (3409 SSU). Contact jbj Techniques technical office, email: info@jbj.co.uk or tel: +44 (0)1737 767493 for additional information regarding the GC performance using other fluids. OPERATINGTEMPERATURES: Fluid temperature range (Mineral Oil): Max. 93ºC (200ºF) continuous andMax. 105ºC (221ºF) intermittent. Maximum cold start viscosity is 2000 cSt (9091 SSU). FILTRATION: Proper filtration is critical to the trouble free operating of any hydraulic system. For optimummotor life at maximum pressure ISO 4406/1986 (Code 18/14) is recommended.A10-micron filter sized to accommodate full system return flow is recommended for most operating environments. www.jbj.co.uk/gear-motors.html

W Series Hydraulic Gear Motor 8 www.jbj.co.uk/concentric-ab-uk-distributor.html#range W Series motors are available in 3 families with displacements ranging from .183 in.3 to 3.05 in.3 (3 cc to 50 cc). W Series motors are available in both unirotational or birotational configurations. All feature a three-piece bushing block design for high pressure operation. Anumber of shaft and flange combinations are available. Integral valve options provide ease of systemdesign.Akey feature of all motors in theWSeries is the extremely high volumetric efficiency. Flange Options Dimensions and Weights www.jbj.co.uk/gear-motors.html

9 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM600 Series Hydraulic Gear Motor Shaft Options www.jbj.co.uk/gear-motors.html

WM600 Series Hydraulic Gear Motor Axial & Radial Loads 10 www.jbj.co.uk/concentric-ab-uk-distributor.html#range Maximum Axial Loads Maximum Radial Loads www.jbj.co.uk/gear-motors.html

11 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM600 Series Hydraulic Gear Motor Shaft Seal Capabilities Performance Curves @ 100SSU www.jbj.co.uk/gear-motors.html

WM600 Series Hydraulic Gear Motor Case Drain 12 www.jbj.co.uk/concentric-ab-uk-distributor.html#range Installation Information FLUIDS: Most premium grade petroleum base fluids can be used with WM600 Motors. Optimum operating viscosity is 16-63 cSt (80-288 SSU) at maximum rated speed. Minimum operating viscosity is 10 cSt (59 SSU). Maximum operating viscosity is 750 cSt (3409 SSU). Maximum cold start viscosity is 2000 cSt (9091SSU). Contact Concentric for additional information regarding the W600 performance using other fluids. OPERATING TEMPERATURES: Fluid temperature range (Mineral Oil): Max. 93oC (200oF) continuous and Max. 105°C (221°F) intermittent. FILTRATION: Proper filtration is critical to the trouble free operating of any hydraulic system. For optimum motor life at maximum pressure ISO 4406/1986 (Code 18/14) is recommended. A 10-micron filter sized to accommodate full system return flow is recommended for most operating environments. Valve Options www.jbj.co.uk/gear-motors.html

13 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM600 Series Hydraulic Gear Motor Valve Option Dimensions The drawings below depict the overall dimensions for the valve options specified on page 12. www.jbj.co.uk/gear-motors.html

WM600 Series Hydraulic Gear Motor Ordering Code 14 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

15 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM600 Series Hydraulic Gear Motor Flange Options For its displacement and pressure range, the WM900 family features one of the most compact envelopes available from any manufacturer. Standard international mounting flange options are outlined below. Dimensions shown outside of brackets aremetric units. See page 17 for dimensional chart showing “X” and “Y” dimensions. www.jbj.co.uk/gear-motors.html

WM900 Series Hydraulic Gear Motor Reinforced Flange Options 16 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

17 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM900 Series Hydraulic Gear Motor Dimensions and Weights www.jbj.co.uk/gear-motors.html

WM900 Series Hydraulic Gear Motor Shaft Options 18 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

19 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM900 Series Hydraulic Gear Motor Radial & Axial Loads www.jbj.co.uk/gear-motors.html

Outlet pressure on a uni-directional motor or case drain pressure on a bi-rotational motor must not exceed seal pressure ratings. WM900 Series Hydraulic Gear Motor Shaft Seal Capabilities 20 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM900 Performance Curves @ 100SSU www.jbj.co.uk/gear-motors.html

21 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM900 Series Hydraulic Gear Motor Installation Information WM900 Valve Options www.jbj.co.uk/gear-motors.html

These drawings depict the overall dimensions for the valve options specified on page 21. WM900 Series Hydraulic Gear Motor Valve Option Dimensions 22 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

23 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM900 Series Hydraulic Gear Motor Ordering Code www.jbj.co.uk/gear-motors.html

For its displacement and pressure range, the WM1500 family features one of the most compact envelopesavailable from any manufacturer. Standard international mounting flange options are outlined below. Dimensions shown outside of brackets aremetric units. See page 25 for dimensional chart showing “X” and “Y” dimensions. WM1500 Series Hydraulic Gear Motor Flange Options 24 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

Shaft Options * NOTE: For port code options 05 & 06, subtract 2mm from the port centerline dimension on the 19 cc displacement only. ** NOTE: For port code options 05 & 06, subtract 2mm from the port centerline dimension on the 28 cc displacement only. 25 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM1500 Series Hydraulic Gear Motor Dimensions & Weights www.jbj.co.uk/gear-motors.html

WM1500 Series Hydraulic Gear Motor Shaft Options 26 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

27 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM1500 Series Hydraulic Gear Motor Radial & Axial Load Maximum Axial Loads Allowable Radial & Axial Load at Drive Shaft (without reinforced bearing) www.jbj.co.uk/gear-motors.html

Performance Curves @ 100SSU WM1500 Series Hydraulic Gear Motor Shaft Seal Capabilities 28 www.jbj.co.uk/concentric-ab-uk-distributor.html#range Outlet pressure on a uni-directional motor or case drain pressure on a bi-rotational motor must not exceed seal pressure ratings. Important Note: The data below shows maximum values and cannot be used concurrently, e.g. the maximum operating pressure depends on material type, shaft speed and temperature. Contact your Concentric representative for additional information. www.jbj.co.uk/gear-motors.html

29 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM1500 Series Hydraulic Gear Motor Installation Information www.jbj.co.uk/gear-motors.html

Valve Option Dimensions WM1500 Series Hydraulic Gear Motor Valve Options 30 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

31 www.jbj.co.uk/concentric-ab-uk-distributor.html#range WM1500 Series Hydraulic Gear Motor Ordering Code www.jbj.co.uk/gear-motors.html

Dimensions & Weights FM15 Series Hydraulic Gear Motor Flange Options 32 www.jbj.co.uk/concentric-ab-uk-distributor.html#range For its displacement and pressure range, the FM15 family features one of the most compact envelopes available from any manufacturer. Standard international mounting flange options are outlined below. Dimensions shown outside of brackets are metric units. See page 25 for dimensional chart showing “X” and “Y” dimensions. www.jbj.co.uk/gear-motors.html

33 www.jbj.co.uk/concentric-ab-uk-distributor.html#range FM15 Series Hydraulic Gear Motor Shaft Options www.jbj.co.uk/gear-motors.html

Performance Curves @ 100SSU FM15 Series Hydraulic Gear Motor Shaft Seal Capabilities 34 www.jbj.co.uk/concentric-ab-uk-distributor.html#range Outlet pressure on a uni-directional motor or case drain pressure on a bi-rotational motor must not exceed seal pressure ratings. Important Note: The data below shows maximum values and cannot be used concurrently, e.g. the maximum operating pressure depends on material type, shaft speed and temperature. Contact your Concentric representative for additional information. www.jbj.co.uk/gear-motors.html

Valve Options Dimensions 35 www.jbj.co.uk/concentric-ab-uk-distributor.html#range FM15 Series Hydraulic Gear Motor Valve Options www.jbj.co.uk/gear-motors.html

Note: For axial & radial load information please contact jbj Techniques technical office email: info@jbj.co.uk or telephone +44 (0)1737 767493 FM15 Series Hydraulic Gear Motor Ordering Code 36 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

Fm20 and FM30 Series motors provide excellent high speed performance in parallel circuit applications. Available with a standard 150 PSI shaft seal (optional 500 PSI seal available), thesemotors feature a durable cast iron construction and excellent efficiencies.Awide variety of shaft and porting options are available. 37 www.jbj.co.uk/concentric-ab-uk-distributor.html#range FM20 & FM30 Series Unidirectional Hydraulic Gear Motors FM20 Dimensions www.jbj.co.uk/gear-motors.html

FM30 Series Hydraulic Gear Motor Dimensions 38 www.jbj.co.uk/concentric-ab-uk-distributor.html#range FM30 Dimensions www.jbj.co.uk/gear-motors.html

39 www.jbj.co.uk/concentric-ab-uk-distributor.html#range FM20 & FM30 Series Unidirectional Hydraulic Gear Motors Mounting Flanges www.jbj.co.uk/gear-motors.html

FM20 & FM30 Series Hydraulic Gear Motor Drive Shafts 40 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

41 www.jbj.co.uk/concentric-ab-uk-distributor.html#range FM20 Hydraulic Gear Motors Performance Curves www.jbj.co.uk/gear-motors.html

FM30 Series Hydraulic Gear Motor Performance Curves 42 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

FM20 Axial Loads FM20 Pressure/Velocity Rating 43 www.jbj.co.uk/concentric-ab-uk-distributor.html#range FM20 Hydraulic Gear Motors Axial/Radial Loads www.jbj.co.uk/gear-motors.html

Axial/Radial Loads FM30 Series Hydraulic Gear Motor Axial/Radial Loads 44 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

45 www.jbj.co.uk/concentric-ab-uk-distributor.html#range FM20 Hydraulic Gear Motors Ordering Codes www.jbj.co.uk/gear-motors.html

FM30 Series Hydraulic Gear Motor Ordering Code 46 www.jbj.co.uk/concentric-ab-uk-distributor.html#range www.jbj.co.uk/gear-motors.html

www.jbj.co.uk/gear-motors.html Cast Iron Pumps Heavy Duty GC Series Pumps Displacements 1.06 to 11.65 cc GC Series High/Low Pumps High Pressure Displacements 1.06 to 4.22 cc Low Pressure Displacements 4.22 to 12.71 cc Maximum Pressure 276 bar Maximum Speed 4,000 rpm W-Series Pumps W100 Displacements 0.50 to 2.00 cc W300 Displacements 0.80 to 5.70 cc W600 Displacements 4 to 12 cc W900 Displacements 5 to 31 cc W1200 Displacements 25 to 33 cc W1500 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 500 to 4,000 rpm D Series Pumps Displacements 03.80 to 22.85 cc D Series High/Low Pumps High Pressure Displacements 7.62 cc Low Pressure Displacements 15.24 to 22.86 cc Maximum Pressure 207–276 bar Maximum Speed 3,600–4,000 rpm WK900 CALMA Pumps Displacements 5 to 27 cc Maximum Pressure 230 bar Maximum Speed 4,000 rpm F12 & F15 Ferra Series Pumps F12 Displacements 16 – 41 cc F15 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm Cast Iron Displacements 1.06 to 161 cc Speed Up to 10,000 rpm Aluminum Displacements 4 to 50 cc Speed Up to 4,000 rpm Flow Dividers Fluid Motors GC & D Series GC Displacements 1.58 to 8.47 cc D Displacements 3.8 to 13.32 cc Maximum Pressure 310 bar Maximum Input Flow Per Section 14 gpm (53 lpm) Aluminum Pumps Medium/Light Duty F20/F30 Pumps & F20-LS/F30-LS Load Sense Ferra Series Pumps Displacements 23 to 161 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm 47 www.jbj.co.uk/concentric-ab-uk-distributor.html#range Concentric Pumps & Motors Range

Getting the most out of your machinery often depends on close integration between all components. An organisation that manufactures and integrates all the diverse components of a drivetrain provides the experience to help you select the best component combination for your application. jbj Techniques’ in-house design team and manufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery. The following examples are a simplistic view of how jbj Techniques assists customers. Hydraulic Adaptors Designed primarily to allow the close coupling of hydraulic pumps to a variety of prime movers, such as diesel / petrol engines, electric, air or hydraulic motors, they can also be used in the connection from prime mover to alternative driven parts i.e. gear boxes, generators, water or vacuum pumps etc. An additional range of engine front PTO adaptors, which provide additional connection between the engine pulley and the driven part are also available. The kit comprises of a and flexible bellhousing drive that are fully machined to suit the coupling driving and driven components. These can be to suit either shaft to shaft, flange (flywheel) to shaft or even flange to flange connections. Getting the most out of your equipment will demand close integration between all components. In specifying jbj Techniques as your preferred supplier, you will have selected a company with the experience to specify, manufacture and integrate all of the diverse components that will ensure the best component combination for your application. jbj's in house design team and manufacturing facility provide tailored solutions for your applications at competitive pricing and on-time deliveries. Pump shaft alignment is key to preventing unnecessary wear and damage to the pump shaft seal and bearing. Improper alignment may lead to premature pump failure. Also to be considered are unwanted torsional resonant frequencies in the system which can quickly cause damage to components in the drivetrain and reduce system life and performance. Improper pump installation can lead to premature failure, increased maintenance costs and reduced production levels of final product. jbj Techniques can advise on the correct installation of into Industrial / hydraulic pumps mobile / marine / machine tool / agricultural / offshore industries and can specify complete driveline systems from their extensive range of components which are available from stock or manufactured to order, albeit simple or complex, standard or bespoke. Electric Motor – Hydraulic Pump Adaptors (safe area) jbj Techniques Limited offer the most comprehensive range of in Europe. bellhousings Designed to connect electric motors with frame size IEC D56 - D400 (0.06kW – 750kW) and can be compatible with electric motor 'B5' or 'B14' flange configurations. Accompanying the metric frame units above is a complete range of mountings to suit Nema and imperial frame motors with 'C' face or 'D' flange fitments. With fully machined , torsionally flexible couplings or available, jbj ensure torsionally rigid couplings the most suitable combination is selected for the application in hand. As an example spider couplings are available in various materials including aluminium, grey cast iron, nodular iron, steel and stainless steels and can be finish machined with parallel, taper or splined bores to DIN, SAE, ANSI or ISO standards. Bellhousings can be manufactured in aluminium or cast iron material as standard, however, units can be produced in a variety of exotic materials on request. The aluminium product range is produced in either monoblock or composite formats giving great flexibility in design and allows for early delivery time, often with same or next day delivery possibilities. For applications where low noise levels are a quality products for mechanical & fluid power #DriveLineHarmony www.jbj.co.uk an excellence in engineering

ensuring a continuing high quality service in which customers can have complete confidence. “ “ requirement then a complete range of antivibration and noise reduction components add to the range. Electric motor – Hydraulic Pump Adaptors (hazardous area) Designed to meet the exacting safety standards of the offshore and chemical process industries, jbj Techniques produce certificated to adaptor kits Directive 2014/34/EU II2GD-IM2-TX -50 C< Service Temp < +105 C. Harmonised standards BS EN 1127:1, BS EN 13463:1, BS EN13463:5, BS EN 50303, BS EN 1834-1,BS EN 1834-3. Generally manufactured in Cast or Nodular iron, bellhousings can be produced in steel, stainless steel or alternative exotic materials on customer request. Couplings supplied for these applications are the jbj Techniques 'JXL' pin and bush range which provide an anti-static and flameproof drive which meet zone 1 area requirements, conforming to all of the above standards. Also available are spider and gear couplings which are certified to zone 2 standards. (Contact jbj Techniques for details). An important development of equipment for use within hazardous areas is the wet mount series of bellhousings. Commissioned to research and develop a product that would control the high temperature generated by a piston pump shaft seal when working within cycling applications. A little considered issue is the frictional heat generated at the shaft seal when the application requires the pump to cycle between different pressures causing the seal temperature to increase. This process will often take the seal temperature out and above the levels required by the relevant ATEX standards requirement. This specially designed assembly allows a pumped cooling flow to be passed over the seal face and through an auxiliary cooler, this in turn reduces the seal face temperature which can be maintained at an acceptable level. With a vast array of components to select from, jbj are well placed to provide all required components to support the required cooling system. Diesel Engine – Hydraulic Pump Adaptors A complete range of bellhousing and couplings exist for the connection of a diesel engine flywheel to a specified driven component, be it an oil hydraulic pump, water pump, generator or similar device. With the bellhousing available in various materials to suit all application areas. With a standard range to connect Diesel engines with SAE dimensions from SAE '6' to SAE '0' jbj are well placed to satisfy the majority of customer requirements. Couplings to complete the assembly are available in either torsionally flexible or torsionally rigid design ad can be supplied to suit SAE flywheel dimensions from SAE 6.5” to SAE 18”. For hydraulic pumps to be mounted to engines that do not conform to SAE dimensions, we offer a full range of assembly parts, some of which (but not all) are shown here » for diesel engines All bellhousings within this range can be finished machined to accept any, piston, vane or gear pump interfaces requested by customer. As with the electric motor range of product jbj offer complete solutions for ATEX environments, using our well proven 'JXL' coupling range which has standard design to connect to the engine flywheel. Directive 2014/34/EU II2GD-IM2-TX -50°C ≤ Service Temp ≤ +105°C. Harmonised Standards: BS EN 1127:1 BS EN 13463:1 BS EN 13463:5 BS EN 50303. Petrol Engine – Hydraulic Pump Adaptors Petrol engine adaptors have been developed for use with industrial petrol engines. Design exists to suit Honda, Briggs and Stratton, Kawasaki, Kubota, Hatz, Mag, Robin, Suzuki, Winsconsin, to name but a few, all adaptors can be finished to accept most hydraulic pumps. Adaptors to suit engine crankshaft drives and for vertical mounting are available on request. #DriveLineHarmony www.jbj.co.ukl to Large Combinations Small Individual Components

to Large Combinations from Small Individual Components ensuring a continuing high quality service in which customers can have complete confidence. “ “ # Driveline jbj Techniques is a specialist supplier of high-quality products for the mechanical power transmission and fluid power sectors. The company offers a high level of in-house expertise plus a huge selection of products to meet a very broad range of customer applications. From specification, through technical advice and manufacture to after-sales support, jbj Techniques provides a comprehensive and valued service to the power transmission and hydraulics industries. The company fields a UK-wide team of technical sales engineers to ensure that the business is close to its customers, and it enjoys excellent associations with European manufacturers, acting as sole UK distributor in many cases. jbj’s team is recognised for its expertise in the selection and configuration of hydraulic and mechanical transmission systems. Able to draw on an that extensive product range provides the building blocks for bespoke systems both large and small, the in-house design team offers a complete service, ranging from an assessment of customer requirements to full technical backup, including product specification, CAD based system design, system build and certification. Moreover customers can take advantage of jbj’s own machine-shop facilities and skilled engineers guarantee to quality and control costs. jbj Techniques provides one of the widest ranges of couplings available within the UK; mechanical power transmission couplings for a vast range of applications. Ranging from miniature couplings, all steel gear couplings, flexible spider couplings, shaft couplings, torque limiting couplings, disc and grid type couplings, ATEX compliant and shaft locking devices. Magnetic couplings for power transmission between hermetically sealed areas. However as extensive as the selection is, couplings make up a fraction of jbj’s portfolio. As power transmission specialists the company stock and provide gearboxes, clutches, pumps, hydraulic motors, flow meters, fluid power accessories including: cooling & heat exchange products, reservoirs, pipe flanges, seals and level indicators, as well as a variety of bellhousings and engine adaptors, to name just a few of the product categories. jbj Techniques Limited is proud of it’s relationship and reputation with customers and suppliers. The core client base is stable and loyal, which is testament to the quality of service provided by the company. A similar relationship exists with suppliers, ensuring a continuing high quality service in which customers can have complete confidence. Dampers Engine Adaptor Kits Hydraulic Adaptors Torque Limiting Couplings Tyre Couplings Anti-static/Flameproof Couplings Torsionally Rigid Couplings Torsionally Flexible Couplings Bellhousings Permanent Magnetic Couplings Torsional Couplings

ne Harmony comprehensive range of components www.jbj.co.uk an excellence in engineering 01737 767493 info@jbj.co.uk www.jbj.co.uk - registered in England No: 1185469 - jbj Techniques Limited is ISO certificated, committed to international coordination & unification of industrial standards. A range of products ATEX certificated to directive 94/9/E requirements Screw Pumps Pneumatic Motors & Starters Gear Pumps/Motors Axial & Radial Piston Motors Vane Pumps LSHT Motors/Geared Motors Splitter Gearboxes Planetary Gearboxes BDS Clutches BD Clutches & Gearboxes Oil Bath Clutches Flow Dividers Tanks/Accessories Fluid Level Indicators Flanges Mini Power Packs Coolers Pressure Intensifiers You Tube
